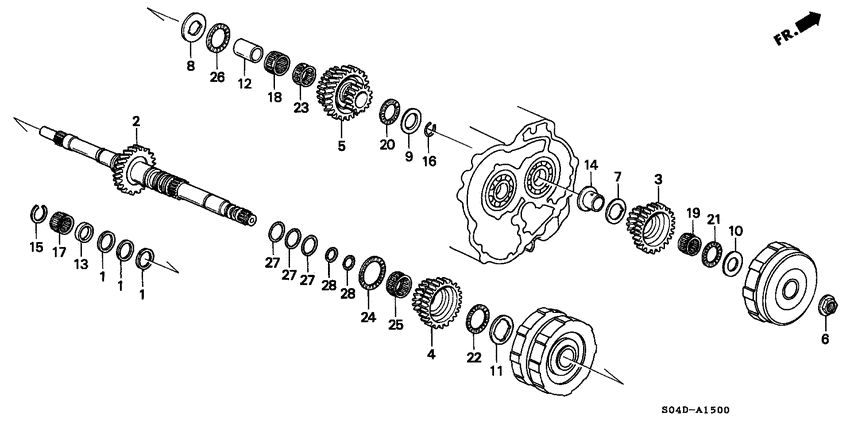

Mainshaft (2) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- VA
- transmission
- 4AT
- Number of doors
- 4
- grade
- VTI LEV
- abs
- +
- area code
- TW
- left-hand drive
- +
- power window
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22814-P0X-003 RingSEALING, 32MM |
22814-P0X-003 |
US $3.78 |
||
|
2
|
2
23210-P4M-911 Mainshaft comp.6004740 - |
23210-P4M-911 |
US $249.60 |
||
|
2
|
2
23210-P4M-910
Mainshaft comp.
00000000 - 6004739 |
23210-P4M-910 |
— | ||
|
3
|
3
23411-PFL-000 GearMAINSHAFT LOW |
23411-PFL-000 |
US $62.59 |
||
|
5
|
5
23461-P4M-910 GearMAINSHAFT FOURTH |
23461-P4M-910 |
US $140.80 |
||
|
10
|
10
90422-P7C-000
Washer
|
90422-P7C-000 |
— | ||
|
14
|
14
90508-P7C-000 Collar23MM |
90508-P7C-000 |
US $13.82 |
||
|
17
|
17
91011-P68-003 BearingNEEDLE, 20X26X17 |
91011-P68-003 |
US $7.70 |
||
|
21
|
21
91019-PL1-003 BearingTHRUST NEEDLE, 28X43X2 (NTN) |
91019-PL1-003 |
US $7 |
