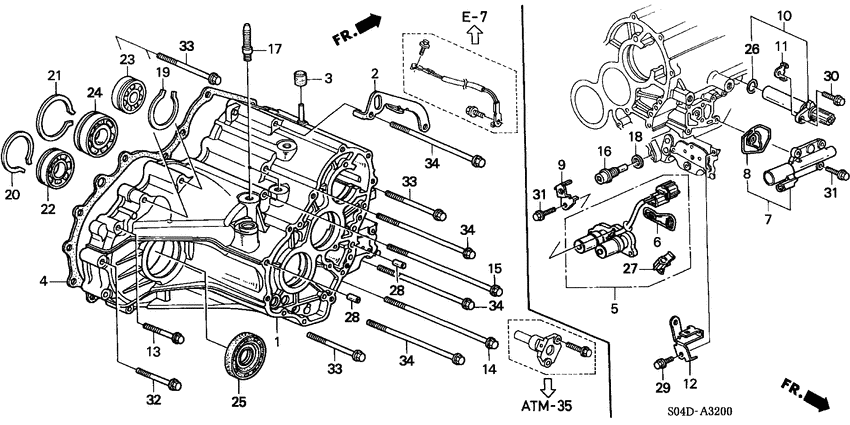

Transmission housing (4) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- MF91
- transmission
- 4AT
- Number of doors
- 4
- grade
- VTI
- abs
- +
- area code
- MA
- right-hand drive
- +
- power window
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21210-P4R-J00 Case comp.TRANSMISSION |
21210-P4R-J00 |
US $390.40 |
||
|
1
|
1
21210-P4R-000 Case comp.TRANSMISSION |
21210-P4R-000 |
US $451.84 |
||
|
2
|
2
21232-P56-000 HangerTRANSMISSION |
21232-P56-000 |
US $9.52 |
||
|
3
|
3
21396-PX5-000 CapBREATHER |
21396-PX5-000 |
US $3.18 |
||
|
4
|
4
21811-P56-000 PackingTORQUE CONVERTER CASE |
21811-P56-000 |
US $27.26 |
||
|
5
|
5
28200-P4R-003 Solenoid assy.SHIFT (KEIHIN) |
28200-P4R-003 |
US $792.15 |
||
|
6
|
6
28220-P56-003 Filter assySHIFT SOLENOID (KEIHIN) |
28220-P56-003 |
US $20.74 |
||
|
7
|
7
28250-P4R-003
Solenoid assy.
|
28250-P4R-003 |
— | ||
|
8
|
8
28251-P4R-003
Packing
|
28251-P4R-003 |
— | ||
|
9
|
9
28296-P56-000
Stay b
|
28296-P56-000 |
— | ||
|
10
|
10
28810-P4R-003 Pick up assy.MAIN (DENSO) |
28810-P4R-003 |
from US $140.08 |
||
|
11
|
11
28811-P4R-000
Washer
|
28811-P4R-000 |
— | ||
|
12
|
12
28812-P4R-000
Stay
|
28812-P4R-000 |
— | ||
|
13
|
13
90001-P56-000 BoltSPECIAL, 10X50 |
90001-P56-000 |
US $2.94 |
||
|
14
|
14
90002-P56-000 BoltFLANGE, 10X170 |
90002-P56-000 |
US $7 |
||
|
15
|
15
90003-P56-000 BoltFLANGE, 10X180 |
90003-P56-000 |
US $7 |
||
|
16
|
16
90081-PX4-003 BoltPLUG, 18MM |
90081-PX4-003 |
from US $5.54 |
||
|
17
|
17
90380-S04-000 BoltSTUD, 12X73 |
90380-S04-000 |
US $4.20 |
||
|
18
|
18
90471-PX4-000 WasherDRAIN PLUG, 18MM |
90471-PX4-000 |
from US $1.58 |
||
|
19
|
19
90603-PB6-000 RingSNAP, 62MM |
90603-PB6-000 |
from US $3.78 |
||
|
20
|
20
90609-PC8-000 RingSNAP, 68MM |
90609-PC8-000 |
US $4.43 |
||
|
21
|
21
90615-PF4-000 RingSNAP, 75MM |
90615-PF4-000 |
US $2.73 |
||
|
22
|
22
91002-PK4-003 BearingBALL (63/26N) |
91002-PK4-003 |
US $16.43 |
||
|
23
|
23
91003-P24-J01 BearingBALL (22X62X15) |
91003-P24-J01 |
from US $17 |
||
|
24
|
24
91006-PK4-003 BearingBALL (63/32-26) |
91006-PK4-003 |
US $15.64 |
||
|
25
|
25
91206-689-005 Oil seal35X76X9 (NOK) |
91206-689-005 |
from US $21.13 |
||
|
26
|
26
91309-PX4-003 O-ring16X2.1 (NOK) |
91309-PX4-003 |
from US $1.92 |
||
|
27
|
27
91558-SE3-003 ClipHOOD WIRE |
91558-SE3-003 |
US $4 |
||
|
28
|
28
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
29
|
29
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
30
|
30
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.34 |
||
|
31
|
31
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
32
|
32
95701-100-600-8 BoltFLANGE, 10X60 |
95701-100-600-8 |
from US $1.04 |
||
|
33
|
33
95701-100-800-8 BoltFLANGE, 10X80 |
95701-100-800-8 |
from US $1.18 |
||
|
34
|
34
95701-101-400-8 BoltFLANGE, 10X140 |
95701-101-400-8 |
US $1.85 |
