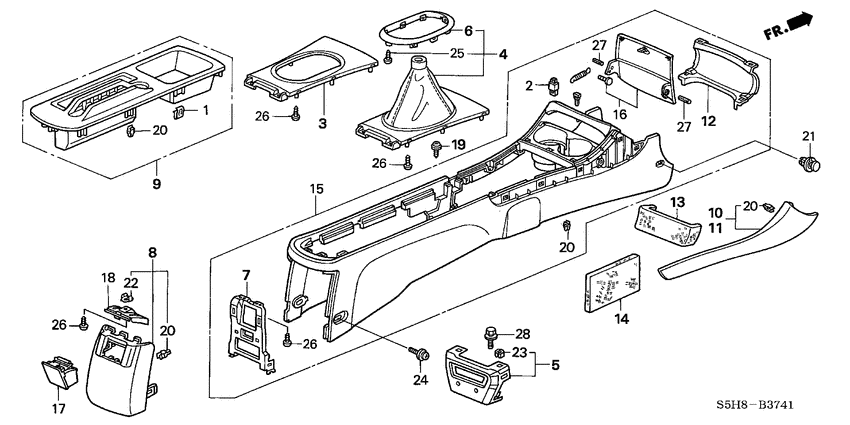

Console (2) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- transmission
- 4AT
- Number of doors
- 4
- grade
- EXI-S
- area code
- MA
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77205-S0X-A01 ClipSNAP FITTING |
77205-S0X-A01 |
from US $1.66 |
||
|
2
|
2
77235-S84-A01 LatchG-SENSOR |
77235-S84-A01 |
US $14.01 |
||
|
3
|
3
77295-S5H-T01ZB
Garnish
|
77295-S5H-T01ZB |
— | ||
|
7
|
7
83402-S5H-T00
Bracket
|
83402-S5H-T00 |
— | ||
|
8
|
8
83403-S5H-T00ZC
Cover assy.
|
83403-S5H-T00ZC |
— | ||
|
9
|
9
83404-S5H-T01ZB
Box assy
|
83404-S5H-T01ZB |
— | ||
|
10
|
10
83405-S5H-T10ZC
Panel
|
83405-S5H-T10ZC |
— | ||
|
11
|
11
83406-S5H-T10ZC
Panel
|
83406-S5H-T10ZC |
— | ||
|
12
|
12
83410-S5H-T00
Cover
|
83410-S5H-T00 |
— | ||
|
13
|
13
83411-S5A-A00 InsulatorFR. CONSOLE |
83411-S5A-A00 |
US $8.68 |
||
|
14
|
14
83412-S5A-A00 InsulatorCONSOLE SIDE |
83412-S5A-A00 |
US $5.74 |
||
|
15
|
15
83420-S5H-T01ZF
Console set
|
83420-S5H-T01ZF |
— | ||
|
16
|
16
83421-S5H-T01ZC
Lid set
|
83421-S5H-T01ZC |
— | ||
|
17
|
17
88320-S04-000ZK
Ashtray assy.
|
88320-S04-000ZK |
— | ||
|
18
|
18
88324-SB3-950 CoverRR. ASHTRAY |
88324-SB3-950 |
US $4.06 |
||
|
19
|
19
90137-SH3-000 ScrewTAPPING, 4X16 |
90137-SH3-000 |
from US $1.70 |
||
|
20
|
20
90666-S84-A01 ClipSNAP FITTING |
90666-S84-A01 |
from US $0.88 |
||
|
21
|
21
91550-S50-000ZS ClipTAILGATE *YR239L* |
91550-S50-000ZS |
US $1.47 |
||
|
22
|
22
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
24
|
24
93894-050-160-7 Screw-washer5X16 |
93894-050-160-7 |
from US $0.44 |
||
|
26
|
26
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
27
|
27
94305-30142 PinSPRING, 3X14 |
94305-30142 |
from US $0.74 |
