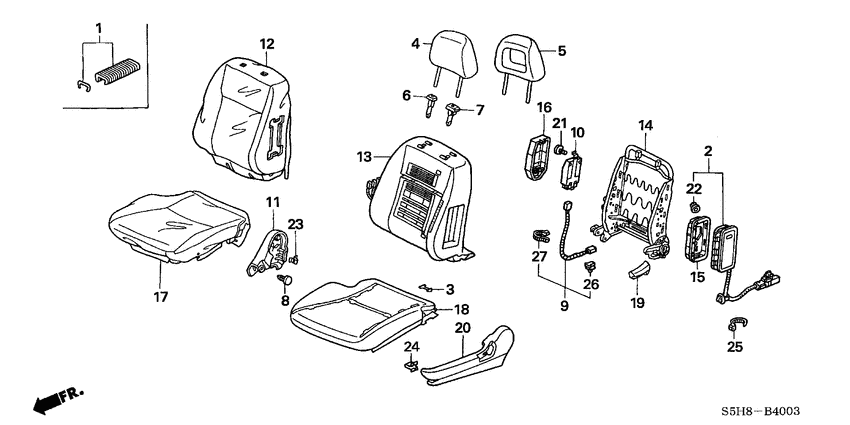

Front seat (RH; PASSENGER SIDE) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- transmission
- 4AT
- Number of doors
- 4
- grade
- EXI-S
- area code
- MA
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04810-SB3-R00 C clip setTRIM FASTENER (100 PIECES) |
04810-SB3-R00 |
US $13.30 |
||
|
1
|
1
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
from US $4.74 |
||
|
3
|
3
81138-S5A-G21 ClipH |
81138-S5A-G21 |
US $0.91 |
||
|
4
|
4
81140-S5H-T42ZC
Headrest assy
|
81140-S5H-T42ZC |
— | ||
|
6
|
6
81143-SM4-J01A6 Guide compHEADREST FREE *YR239L* |
81143-SM4-J01A6 |
US $6.02 |
||
|
7
|
7
81144-S0A-J01YA Guide compHEADREST LOCK *YR239L* |
81144-S0A-J01YA |
US $7.42 |
||
|
8
|
8
81189-S10-J11ZS Clip *yr239l* |
81189-S10-J11ZS |
US $1.82 |
||
|
11
|
11
81515-S5A-J11ZE CoverL. CENTER *YR239L* |
81515-S5A-J11ZE |
US $8.54 |
||
|
12
|
12
81521-S5H-T43ZC
Cover
|
81521-S5H-T43ZC |
— | ||
|
13
|
13
81522-S5H-T31
Pad assy
|
81522-S5H-T31 |
— | ||
|
14
|
14
81526-S5A-J01 Frame compL. FR. SEATBACK |
81526-S5A-J01 |
US $256 |
||
|
17
|
17
81531-S5H-T43ZC
Cover
|
81531-S5H-T43ZC |
— | ||
|
18
|
18
81532-S5H-T31
Pad assy
|
81532-S5H-T31 |
— | ||
|
19
|
19
81631-S5A-013ZK KnobL. RECLINING *YR239L* |
81631-S5A-013ZK |
US $4.62 |
||
|
20
|
20
81638-S5A-J01ZK CoverL. RECLINING *YR239L* |
81638-S5A-J01ZK |
US $13.72 |
||
|
23
|
23
90610-SR3-003 ClipGARNISH (KATO) |
90610-SR3-003 |
US $1.72 |
||
|
24
|
24
90610-S10-003 ClipGARNISH |
90610-S10-003 |
US $1.61 |
