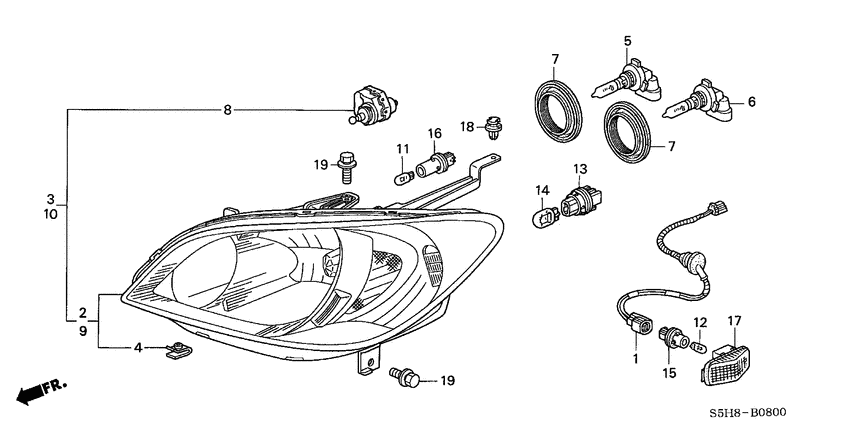

Headlight Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- transmission
- 4AT
- Number of doors
- 4
- grade
- EXI-S
- area code
- MA
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32118-S5A-900
Cord
|
32118-S5A-900 |
— | ||
|
2
|
2
33101-S5A-901 Headlight unitR. |
33101-S5A-901 |
US $410.88 |
||
|
4
|
4
33105-S0A-J21 NutSPECIAL |
33105-S0A-J21 |
US $3.08 |
||
|
5
|
5
33115-S84-A11 BulbHEADLIGHT (HB3) (12V 60W) (STANLEY) |
33115-S84-A11 |
US $22.44 |
||
|
5
|
5
33115-S84-A01 BulbHEADLIGHT (HB3) (12V 60W) (SYLVANIA) |
33115-S84-A01 |
from US $15.35 |
||
|
6
|
6
33116-S84-A01 BulbHEADLIGHT (HB4) (12V 51W) (SYLVANIA) |
33116-S84-A01 |
US $19.20 |
||
|
6
|
6
33116-S84-A11 BulbHEADLIGHT (HB4) (12V 51W) (STANLEY) |
33116-S84-A11 |
US $19.20 |
||
|
7
|
7
33126-SDA-A01 CoverRUBBER |
33126-SDA-A01 |
US $11.20 |
||
|
9
|
9
33151-S5A-901 Headlight unitL. |
33151-S5A-901 |
US $410.88 |
||
|
11
|
11
33301-SA0-741 Bulb (12V 5W)(12V 5W) (STANLEY) |
33301-SA0-741 |
from US $2.37 |
||
|
12
|
12
33301-S5H-T01 BulbWEDGE BASE (WY 12V 5W) (STANLEY) (AMBER) |
33301-S5H-T01 |
US $2.66 |
||
|
13
|
13
33303-SAA-003 Socket compT20 S) (AMBER |
33303-SAA-003 |
from US $7.55 |
||
|
14
|
14
33303-S2R-003 BulbWEDGE (12V 21W) (STANLEY) (AMBER) |
33303-S2R-003 |
from US $2.96 |
||
|
15
|
15
33304-S5A-003 Socket compT10 |
33304-S5A-003 |
from US $7.33 |
||
|
16
|
16
33305-S5A-003
Socket comp
|
33305-S5A-003 |
— | ||
|
17
|
17
34301-S5H-T02 Lamp unit |
34301-S5H-T02 |
from US $14 |
||
|
18
|
18
91512-SX0-003 ClipINNER FENDER CLIP |
91512-SX0-003 |
from US $1.98 |
||
|
19
|
19
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
