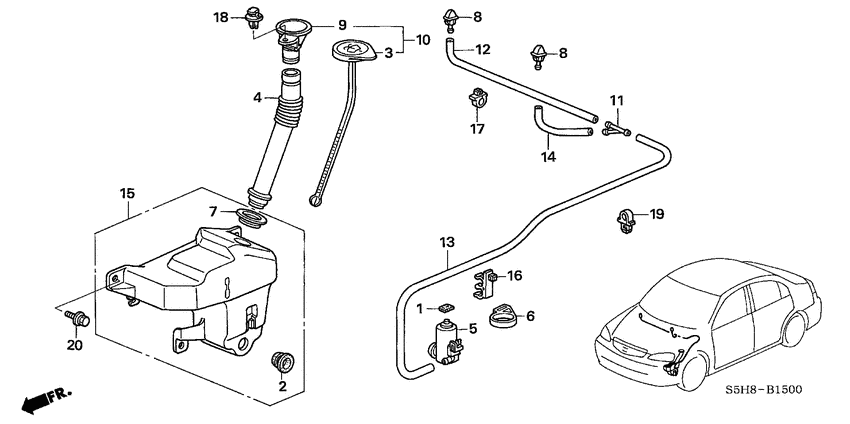

Windshield washer (1) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- transmission
- 4AT
- Number of doors
- 4
- grade
- EXI-S
- area code
- MA
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38516-SA5-671 PackingT-TYPE) (MITSUBA |
38516-SA5-671 |
US $2.60 |
||
|
2
|
2
38519-SB0-003 BushWASHER TANK (MITSUBA) |
38519-SB0-003 |
from US $2.97 |
||
|
3
|
3
76802-SX0-003 Cap unitMOUTH |
76802-SX0-003 |
from US $4.27 |
||
|
4
|
4
76805-S5A-003 Hose |
76805-S5A-003 |
US $17.66 |
||
|
5
|
5
76806-SL0-E11 MotorWASHER (HIGH) (MITSUBA) |
76806-SL0-E11 |
from US $37.54 |
||
|
6
|
6
76808-SD5-003 HolderMOTOR |
76808-SD5-003 |
US $3.74 |
||
|
7
|
7
76809-SE0-003 GrommetWASHER TANK |
76809-SE0-003 |
US $2.65 |
||
|
8
|
8
76810-S5A-003 Nozzle assy.WINDSHIELD WASHER (BLACK) |
76810-S5A-003 |
US $13.82 |
||
|
9
|
9
76812-S5A-003 MouthWASHER |
76812-S5A-003 |
US $10.36 |
||
|
11
|
11
76830-SM4-003 Joint yWASHER |
76830-SM4-003 |
from US $2.90 |
||
|
12
|
12
76832-S5H-T01
Tube
|
76832-S5H-T01 |
— | ||
|
13
|
13
76837-S5H-T01
Tube
|
76837-S5H-T01 |
— | ||
|
14
|
14
76839-S5H-T01
Tube
|
76839-S5H-T01 |
— | ||
|
15
|
15
76840-S5H-T02
Tank set
|
76840-S5H-T02 |
— | ||
|
16
|
16
80383-S5A-003 Clip ARECEIVER PIPE |
80383-S5A-003 |
US $1.61 |
||
|
17
|
17
90652-SB2-023 ClipTUBE, 7MM |
90652-SB2-023 |
from US $2.22 |
||
|
18
|
18
91512-SX0-003 ClipINNER FENDER CLIP |
91512-SX0-003 |
from US $1.98 |
||
|
19
|
19
91523-SM4-003 ClipWASHER TUBE |
91523-SM4-003 |
US $1.78 |
||
|
20
|
20
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
