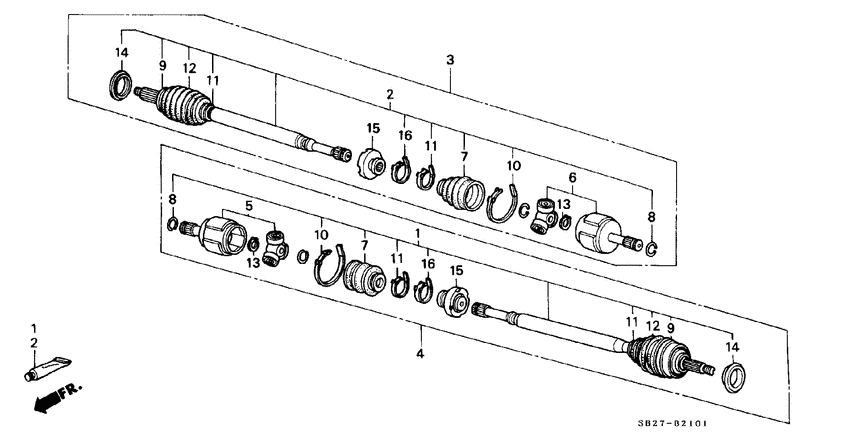

Driveshaft (1600) Diagram Honda CIVIC CRX
- Year
- 1986
- Model code
- CIVIC CRX
- Sales region
- General
- Engine
- ZC1
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.6I-16
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- rear wiper
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44010-SB2-G11
Driveshaft set
|
44010-SB2-G11 |
— | ||
|
2
|
2
44010-SB2-G12 Driveshaft set |
44010-SB2-G12 |
US $433.92 |
||
|
3
|
3
44305-SB2-G11 Driveshaft assy.R. |
44305-SB2-G11 |
US $765.44 |
||
|
4
|
4
44306-SB2-G12
Driveshaft assy.
|
44306-SB2-G12 |
— | ||
|
5
|
5
44310-SB2-982
Joint comp
|
44310-SB2-982 |
— | ||
|
6
|
6
44310-SE0-J20
Joint comp
|
44310-SE0-J20 |
— | ||
|
7
|
7
44315-SB2-981
Boot
|
44315-SB2-981 |
— | ||
| replacement | |||||
|
7
|
7
44315-SM4-003 BootINBOARD (NOK) |
44315-SM4-003 |
US $54.01 |
||
|
8
|
8
44319-SE0-000
Set ring
|
44319-SE0-000 |
— | ||
| replacement | |||||
|
8
|
8
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
US $5.08 |
||
|
9
|
9
44327-SB0-300 BandOUTBOARD BOOT |
44327-SB0-300 |
US $8.40 |
||
|
10
|
10
44328-SB0-300 BandINBOARD BOOT |
44328-SB0-300 |
US $15.37 |
||
|
11
|
11
44329-SB0-300
Band
|
44329-SB0-300 |
— | ||
| replacement | |||||
|
11
|
11
44352-SA2-300 BandDAMPER WEIGHT |
44352-SA2-300 |
US $16.86 |
||
|
12
|
12
44333-SB2-981 BootR. OUTBOARD (NOK) |
44333-SB2-981 |
US $32.13 |
||
|
13
|
13
44338-SB0-300 Circlip26MM |
44338-SB0-300 |
from US $2.24 |
||
|
14
|
14
44347-SB2-003 RingOUTBOARD |
44347-SB2-003 |
US $5.32 |
||
|
15
|
15
44351-SB2-980
Weight a
|
44351-SB2-980 |
— | ||
|
16
|
16
44352-SA2-300 BandDAMPER WEIGHT |
44352-SA2-300 |
US $16.86 |
||
