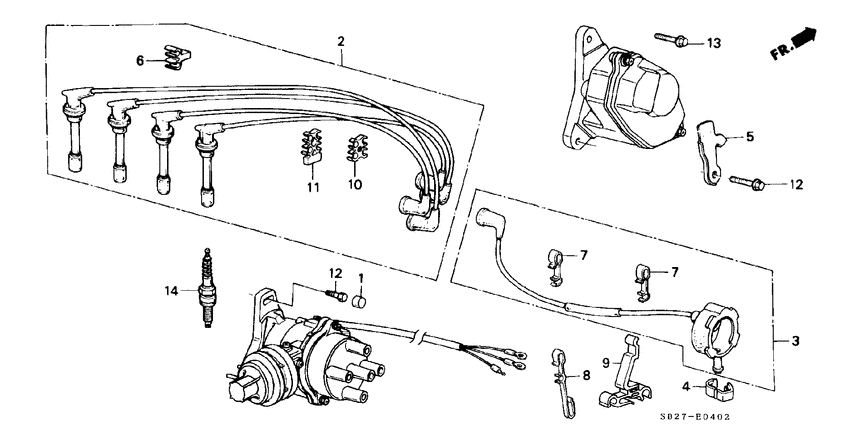

High tension cord/ spark plug (1600) Diagram Honda CIVIC CRX
- Year
- 1986
- Model code
- CIVIC CRX
- Sales region
- General
- Engine
- ZC1
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.6I-16
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- rear wiper
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30140-PA6-010
Cap
|
30140-PA6-010 |
— | ||
|
2
|
2
32722-PJ1-750
Cord comp
|
32722-PJ1-750 |
— | ||
|
3
|
3
32723-PJ1-750 Cord compIGNITION CENTER |
32723-PJ1-750 |
US $29.70 |
||
|
4
|
4
32726-PE0-003
Clamp
|
32726-PE0-003 |
— | ||
|
5
|
5
32761-PG6-010
Stay
|
32761-PG6-010 |
— | ||
|
6
|
6
32762-PG6-000 Clamp aHIGH TENSION CORD 00000000 - 1003854 |
32762-PG6-000 |
US $2.94 |
||
|
6
|
6
32762-PG6-010
Clamp a
1003855 - |
32762-PG6-010 |
— | ||
|
7
|
7
32765-PG7-000 ClampCENTER CORD |
32765-PG7-000 |
US $2.66 |
||
|
8
|
8
32766-PG7-621
Clamp
|
32766-PG7-621 |
— | ||
|
9
|
9
32768-PG7-661
Clamp c
|
32768-PG7-661 |
— | ||
|
10
|
10
32777-PA0-010
Clamp
1003891 - |
32777-PA0-010 |
— | ||
|
10
|
10
32777-PA0-000 ClampHIGH TENSION CORD 00000000 - 1003890 |
32777-PA0-000 |
US $4.62 |
||
|
11
|
11
32777-PA1-020
Clamp
1003855 - |
32777-PA1-020 |
— | ||
|
11
|
11
32777-PA1-010 ClampCORD 00000000 - 1003854 |
32777-PA1-010 |
US $5.46 |
||
|
12
|
12
90001-PG7-660
Bolt-washer
|
90001-PG7-660 |
— | ||
|
13
|
13
95700-060-220-8 BoltFLANGE, 6X22 |
95700-060-220-8 |
US $1.80 |
||
| replacement | |||||
|
13
|
13
95701-060-220-8 BoltFLANGE, 6X22 |
95701-060-220-8 |
from US $0.59 |
||
|
14
|
14
98079-57148 PlugSPARK (BCPR7E-11) (NGK) |
98079-57148 |
from US $4.40 |
||
|
14
|
14
98079-57158 PlugSPARK (Q22PR-U11) (DENSO) |
98079-57158 |
US $7.70 |
||
|
14
|
14
98079-55148 PlugSPARK (BCPR5E-11) (NGK) |
98079-55148 |
from US $5 |
||
|
14
|
14
98079-55158 PlugSPARK (Q16PR-U11) (DENSO) |
98079-55158 |
US $7.70 |
||
|
14
|
14
98079-56148 PlugSPARK (BCPR6E-11) (NGK) |
98079-56148 |
from US $5 |
||
|
14
|
14
98079-56158 PlugSPARK (Q20PR-U11) (DENSO) |
98079-56158 |
US $7.70 |
||
