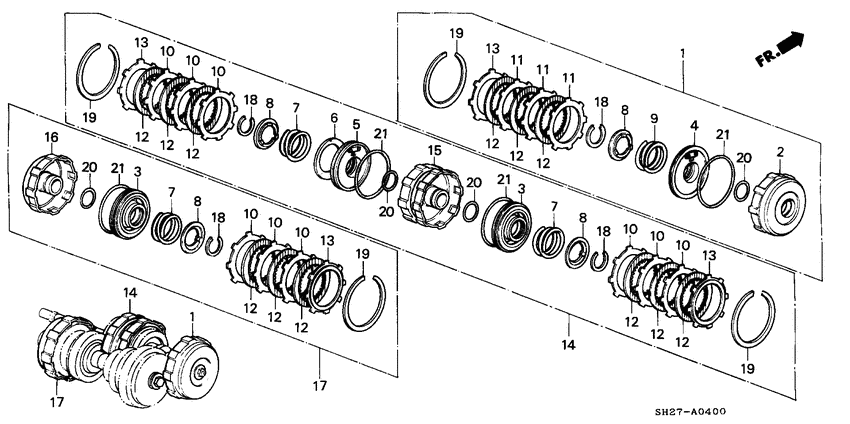

Clutch/clutch disk Diagram Honda CIVIC CRX
- Year
- 1991
- Model code
- CIVIC CRX
- Sales region
- General
- Engine
- D14A
- transmission
- 4AT
- Number of doors
- 3
- grade
- GL
- power steering
- +
- area code
- KB
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22500-PL1-020
Clutch assy.
|
22500-PL1-020 |
— | ||
|
2
|
2
22510-PL1-000
Guide comp
|
22510-PL1-000 |
— | ||
|
3
|
3
22530-PA9-030 Piston compCLUTCH |
22530-PA9-030 |
US $67.84 |
||
|
4
|
4
22530-PL1-010 Piston compLOW CLUTCH |
22530-PL1-010 |
US $56.96 |
||
|
5
|
5
22530-PL4-000 Piston compSECOND CLUTCH |
22530-PL4-000 |
US $41.86 |
||
|
6
|
6
22537-PL4-003
Spring
|
22537-PL4-003 |
— | ||
|
7
|
7
22541-PC9-000 SpringCLUTCH RETURN |
22541-PC9-000 |
US $30.35 |
||
|
8
|
8
22542-PA9-000 SeatCLUTCH SPRING |
22542-PA9-000 |
from US $2.80 |
||
|
9
|
9
22542-PF4-013
Spring
|
22542-PF4-013 |
— | ||
|
9
|
9
22542-PF4-004
Spring
|
22542-PF4-004 |
— | ||
|
10
|
10
22543-PA9-000 PlateCLUTCH (106MM) |
22543-PA9-000 |
from US $8.29 |
||
|
11
|
11
22543-PJ4-000 PlateCLUTCH (106MM) |
22543-PJ4-000 |
US $6.86 |
||
|
12
|
12
22544-PN0-000 DiskCLUTCH |
22544-PN0-000 |
US $20.48 |
||
|
13
|
13
22563-PA9-010 PlateCLUTCH END (13) (2.75MM) |
22563-PA9-010 |
from US $13.02 |
||
|
13
|
13
22553-PA9-010 PlateCLUTCH END (3) (2.9MM) |
22553-PA9-010 |
from US $13.82 |
||
|
13
|
13
22565-PA9-010 PlateCLUTCH END (15) (3.35MM) |
22565-PA9-010 |
from US $13.02 |
||
|
13
|
13
22555-PA9-010 PlateCLUTCH END (5) (3.5MM) |
22555-PA9-010 |
from US $13.02 |
||
|
13
|
13
22562-PA9-010 PlateCLUTCH END (12) (2.45MM) |
22562-PA9-010 |
from US $13.02 |
||
|
13
|
13
22552-PA9-010 PlateCLUTCH END (2) (2.6MM) |
22552-PA9-010 |
from US $13.02 |
||
|
13
|
13
22564-PA9-010 PlateCLUTCH END (14) (3.05MM) |
22564-PA9-010 |
from US $13.02 |
||
|
13
|
13
22554-PA9-010 PlateCLUTCH END (4) (3.2MM) |
22554-PA9-010 |
from US $13.02 |
||
|
13
|
13
22566-PA9-010 PlateCLUTCH END (16) (3.65MM) |
22566-PA9-010 |
from US $13.02 |
||
|
13
|
13
22561-PA9-010 PlateCLUTCH END (11) (2.15MM) |
22561-PA9-010 |
from US $13.02 |
||
|
13
|
13
22551-PA9-010 PlateCLUTCH END (1) (2.3MM) |
22551-PA9-010 |
from US $14.50 |
||
|
14
|
14
22600-PL4-010
Clutch assy.
|
22600-PL4-010 |
— | ||
|
15
|
15
22610-PC9-813 Guide compCLUTCH (2-4) |
22610-PC9-813 |
from US $255.68 |
||
|
16
|
16
22611-PA9-000 GuideSECOND CLUTCH |
22611-PA9-000 |
US $163.84 |
||
|
17
|
17
22650-PL4-010 Clutch assy.THIRD |
22650-PL4-010 |
US $323.84 |
||
|
18
|
18
90603-PA9-000 CirclipEXTERNAL, 40MM |
90603-PA9-000 |
from US $3.11 |
||
|
19
|
19
90605-PA9-000 RingSNAP, 114X1.8 |
90605-PA9-000 |
from US $6.96 |
||
|
20
|
20
91302-PA9-004 O-ring39.8X2.2 (NOK) |
91302-PA9-004 |
US $4.51 |
||
| replacement | |||||
|
20
|
20
91302-PA9-003 O-ring39.8X2.2 (ARAI) |
91302-PA9-003 |
from US $2.96 |
||
|
20
|
20
91302-PA9-003 O-ring39.8X2.2 (ARAI) |
91302-PA9-003 |
from US $2.96 |
||
|
21
|
21
91303-PA9-003 O-ring100X2.2(ARAI) |
91303-PA9-003 |
US $8.81 |
||
| replacement | |||||
|
21
|
21
91303-PA9-004 O-ring100X2.2 (NOK) |
91303-PA9-004 |
from US $5.62 |
||
|
21
|
21
91303-PA9-004 O-ring100X2.2 (NOK) |
91303-PA9-004 |
from US $5.62 |
||
