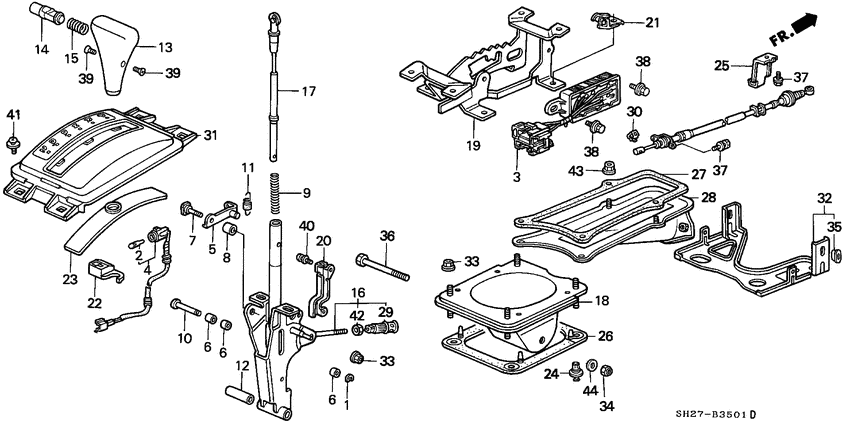

Select lever Diagram Honda CIVIC CRX
- Year
- 1991
- Model code
- CIVIC CRX
- Sales region
- General
- Engine
- D14A
- transmission
- 4AT
- Number of doors
- 3
- grade
- GL
- power steering
- +
- area code
- KB
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30158-700-010 E-clip3MM |
30158-700-010 |
from US $1.14 |
||
|
2
|
2
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
3
|
3
35700-SH3-983
Switch assy
|
35700-SH3-983 |
— | ||
|
4
|
4
37700-SH3-981
Lamp assy.
|
37700-SH3-981 |
— | ||
|
5
|
5
54110-SH3-980
Stopper comp
|
54110-SH3-980 |
— | ||
|
6
|
6
54113-692-980
Collar
|
54113-692-980 |
— | ||
|
7
|
7
54115-SA5-981
Bolt
|
54115-SA5-981 |
— | ||
|
8
|
8
54116-SA5-980
Collar
|
54116-SA5-980 |
— | ||
|
9
|
9
54117-692-980
Spring
|
54117-692-980 |
— | ||
|
10
|
10
54119-689-981
Pin
|
54119-689-981 |
— | ||
|
11
|
11
54120-SH3-980
Spring assy
|
54120-SH3-980 |
— | ||
|
12
|
12
54123-SE0-980 CollarSELECT LEVER |
54123-SE0-980 |
US $6.44 |
||
|
13
|
13
54131-SH3-A81
Knob
|
54131-SH3-A81 |
— | ||
|
14
|
14
54132-SH3-983 KnobPUSH |
54132-SH3-983 |
US $39.94 |
||
|
15
|
15
54133-SA5-981
Spring
|
54133-SA5-981 |
— | ||
|
16
|
16
54135-SH3-981
Lever
|
54135-SH3-981 |
— | ||
|
17
|
17
54136-SH3-981
Rod comp
|
54136-SH3-981 |
— | ||
|
18
|
18
54201-SK3-E81
Bracket
|
54201-SK3-E81 |
— | ||
|
19
|
19
54202-SH5-981
Bracket
|
54202-SH5-981 |
— | ||
|
20
|
20
54204-SH3-980
Guide
|
54204-SH3-980 |
— | ||
|
21
|
21
54205-SH3-980
Clamp
|
54205-SH3-980 |
— | ||
|
22
|
22
54211-SH3-A82
Indicator
|
54211-SH3-A82 |
— | ||
|
23
|
23
54222-SH3-980
Cover
|
54222-SH3-980 |
— | ||
|
24
|
24
54225-SH3-972 ClipSELECT LEVER BRACKET |
54225-SH3-972 |
US $2.10 |
||
|
25
|
25
54317-SH3-982
Holder
|
54317-SH3-982 |
— | ||
|
26
|
26
54318-SK3-E81
Seal
|
54318-SK3-E81 |
— | ||
|
27
|
27
54319-SH3-981
Seal
|
54319-SH3-981 |
— | ||
|
28
|
28
54351-SH3-981
Bracket
|
54351-SH3-981 |
— | ||
|
29
|
29
54361-SE0-980 PipeCONTROL WIRE ADJUSTING |
54361-SE0-980 |
US $8.68 |
||
|
30
|
30
54363-SE0-980
Pin
|
54363-SE0-980 |
— | ||
|
31
|
31
54710-SH3-A81
Escutcheon comp.
|
54710-SH3-A81 |
— | ||
|
32
|
32
83454-SH2-961
Bracket
|
83454-SH2-961 |
— | ||
|
33
|
33
90114-SA0-000 NutSELF-LOCK, 6MM |
90114-SA0-000 |
from US $1.70 |
||
|
34
|
34
90308-SA0-981 NutSELF-LOCK, 6MM |
90308-SA0-981 |
from US $1.82 |
||
|
35
|
35
91647-SH3-003 GrommetSCREW, 4MM |
91647-SH3-003 |
US $1.89 |
||
|
36
|
36
92200-06055-0H BoltHEX., 6X55 |
92200-06055-0H |
US $0.59 |
||
|
37
|
37
93492-060-120-8 Bolt-washer6X12 |
93492-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
37
|
37
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
38
|
38
93495-060-120-8 Bolt-washer6X12 |
93495-060-120-8 |
US $0.59 |
||
|
39
|
39
93700-050-080-G ScrewOVAL, 5X8 |
93700-050-080-G |
from US $0.37 |
||
|
40
|
40
93892-040-060-G Screw-washer4X6 |
93892-040-060-G |
US $0.44 |
||
|
41
|
41
93894-050-100-8 Screw-washer5X10 |
93894-050-100-8 |
from US $0.44 |
||
|
42
|
42
94001-060-800-S NutHEX., 6MM |
94001-060-800-S |
from US $0.44 |
||
|
43
|
43
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
||
|
44
|
44
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
