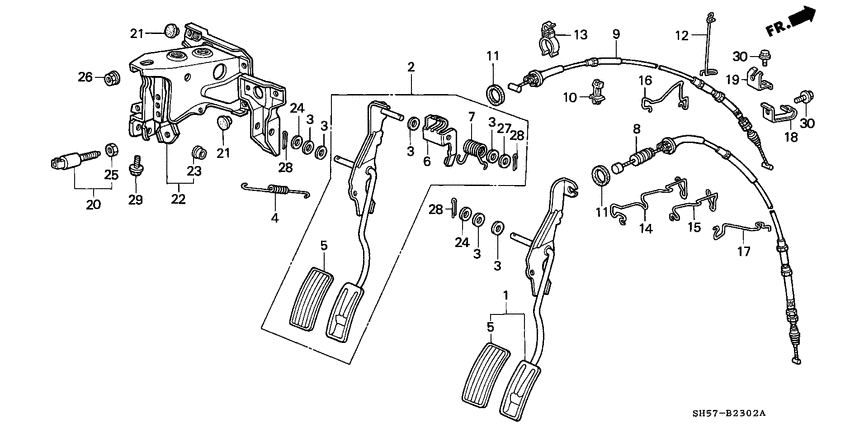

Accelerator pedal (2) Diagram Honda CIVIC SHUTTLE
- Year
- 1988
- Model code
- CIVIC SHUTTLE
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.6I-4WD
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17800-SH5-010
Pedal comp
|
17800-SH5-010 |
— | ||
|
3
|
3
17812-SA7-010 WasherACCELERATOR PEDAL |
17812-SA7-010 |
from US $2 |
||
|
4
|
4
17814-SH3-010
Spring
|
17814-SH3-010 |
— | ||
|
5
|
5
17816-692-000 CoverACCELERATOR PEDAL |
17816-692-000 |
US $6.16 |
||
|
8
|
8
17910-SH3-E32
Wire
|
17910-SH3-E32 |
— | ||
|
10
|
10
17920-SH3-003
Clip
|
17920-SH3-003 |
— | ||
|
11
|
11
17921-SA4-730 SealTHROTTLE CABLE |
17921-SA4-730 |
US $5.86 |
||
|
12
|
12
17923-SH3-000
Clamp
|
17923-SH3-000 |
— | ||
|
16
|
16
17925-SH3-010 ClampTHROTTLE WIRE |
17925-SH3-010 |
US $4.76 |
||
|
18
|
18
17930-SH3-730
Stay
|
17930-SH3-730 |
— | ||
|
19
|
19
17934-SH3-000
Stay
|
17934-SH3-000 |
— | ||
|
20
|
20
35350-SE0-003
Switch assy
00000000 - 0S001205 |
35350-SE0-003 |
— | ||
|
20
|
20
35350-SE0-A01
Switch assy
0S001206 - |
35350-SE0-A01 |
— | ||
|
21
|
21
46505-SH3-000 PadPEDAL STOPPER |
46505-SH3-000 |
US $2.31 |
||
|
22
|
22
46590-SH5-010
Bracket
|
46590-SH5-010 |
— | ||
|
24
|
24
90503-SA0-000 WasherPLAIN, 9MM |
90503-SA0-000 |
from US $1.85 |
||
|
25
|
25
94001-100-800-S NutHEX., 10MM |
94001-100-800-S |
from US $0.52 |
||
|
26
|
26
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
28
|
28
94201-25180 PinSPLIT, 2.5X18 |
94201-25180 |
from US $0.37 |
||
|
29
|
29
95700-080-140-8 BoltFLANGE, 8X14 |
95700-080-140-8 |
US $1.56 |
||
| replacement | |||||
|
29
|
29
95701-080-140-8 BoltFLANGE, 8X14 |
95701-080-140-8 |
from US $0.62 |
||
|
30
|
30
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
