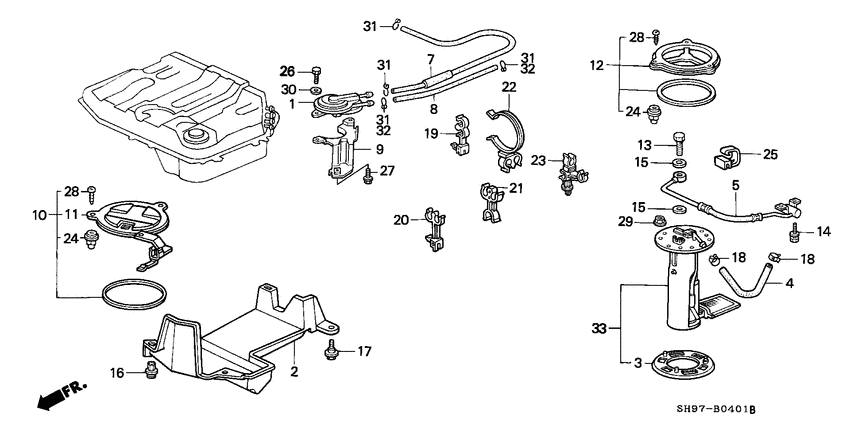

Fuel pump/two way valve Diagram Honda CIVIC SHUTTLE
- Year
- 1995
- Model code
- CIVIC SHUTTLE
- Sales region
- General
- Engine
- D16Z
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.6I-4WD
- area code
- KW
- left-hand drive
- +
- power window
- +
- 4wd
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17371-SF1-A01
Valve
|
17371-SF1-A01 |
— | ||
|
2
|
2
17372-SH5-040
Cover
|
17372-SH5-040 |
— | ||
|
3
|
3
17574-SE0-000 PackingBASE |
17574-SE0-000 |
from US $7.51 |
||
|
4
|
4
17704-SH5-934
Hose
|
17704-SH5-934 |
— | ||
|
5
|
5
17707-SH5-A30
Hose comp.
|
17707-SH5-A30 |
— | ||
|
7
|
7
17721-SH5-040
Tube
|
17721-SH5-040 |
— | ||
|
8
|
8
17722-SH5-010
Tube assy
|
17722-SH5-010 |
— | ||
|
9
|
9
17726-SH5-030
Bracket
|
17726-SH5-030 |
— | ||
|
10
|
10
74660-SH5-023
Cap assy.
|
74660-SH5-023 |
— | ||
|
11
|
11
74661-SH5-013 CapFLOOR MAINTENANCE HOLE |
74661-SH5-013 |
US $5.32 |
||
|
12
|
12
74665-SH5-003
Cap assy.
|
74665-SH5-003 |
— | ||
|
13
|
13
90020-PD6-000 BoltSEALING, 12MM |
90020-PD6-000 |
from US $7.99 |
||
|
14
|
14
90164-SD4-000 Bolt-washer6X16 |
90164-SD4-000 |
US $1.96 |
||
|
15
|
15
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.38 |
||
|
16
|
16
90657-SH3-013 ClipTWO WAY VALVE COVER |
90657-SH3-013 |
US $4.74 |
||
|
17
|
17
90671-SB2-000 BoltFR. FENDER (DACRO COATING) |
90671-SB2-000 |
US $3.29 |
||
|
18
|
18
91406-SA7-931 ClampFUEL HOSE, 15.5MM |
91406-SA7-931 |
US $10.18 |
||
| replacement | |||||
|
18
|
18
91406-SL0-931 ClampFUEL HOSE, 15.5MM |
91406-SL0-931 |
from US $4 |
||
|
20
|
20
91592-SH5-003 ClipFUEL TUBE |
91592-SH5-003 |
US $3.57 |
||
|
21
|
21
91593-SH5-003
Clip
|
91593-SH5-003 |
— | ||
|
22
|
22
91594-SH5-003
Clip
|
91594-SH5-003 |
— | ||
|
23
|
23
91599-SH5-010
Clip
|
91599-SH5-010 |
— | ||
|
24
|
24
91601-SH3-013 GrommetSCREW, 5MM (BLACK) |
91601-SH3-013 |
from US $1.55 |
||
|
25
|
25
91691-SE0-003
Clip
|
91691-SE0-003 |
— | ||
|
26
|
26
92301-05012-0A BoltRECESSED, 5X12 |
92301-05012-0A |
from US $0.44 |
||
|
27
|
27
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
28
|
28
93901-25220 ScrewTAPPING, 5X12 |
93901-25220 |
from US $0.38 |
||
|
29
|
29
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
30
|
30
94103-05800 WasherPLAIN, 5MM |
94103-05800 |
from US $0.38 |
||
|
32
|
32
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
|
33
|
33
17040-SH5-A30
Pump set
|
17040-SH5-A30 |
— | ||
