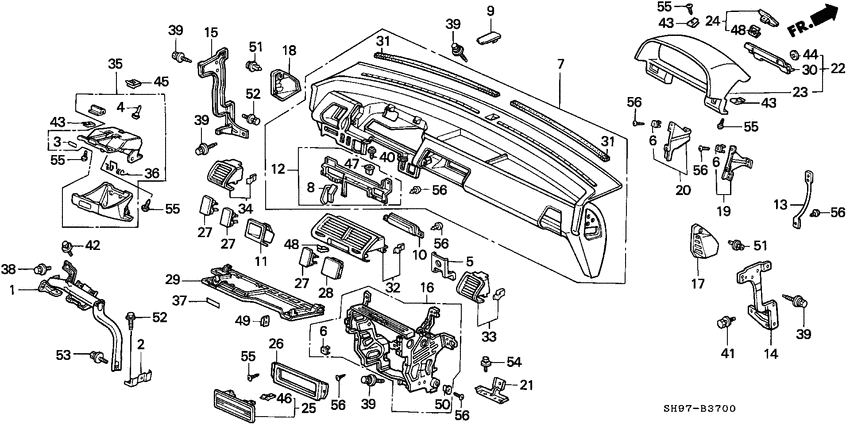

Instrument panel Diagram Honda CIVIC SHUTTLE
- Year
- 1995
- Model code
- CIVIC SHUTTLE
- Sales region
- General
- Engine
- D16Z
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.6I-4WD
- area code
- KW
- left-hand drive
- +
- power window
- +
- 4wd
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61170-SH5-A00ZZ
Beam comp
|
61170-SH5-A00ZZ |
— | ||
|
2
|
2
61174-SH3-A00ZZ
Bracket
|
61174-SH3-A00ZZ |
— | ||
|
3
|
3
66161-SB2-000
Label
|
66161-SB2-000 |
— | ||
|
4
|
4
66418-579-000 StopperGLOVE BOX LID |
66418-579-000 |
US $8.40 |
||
|
6
|
6
75522-611-000 GrommetSCREW, 4MM |
75522-611-000 |
US $4 |
||
|
7
|
7
77100-SH5-G32ZE
Panel assy.
|
77100-SH5-G32ZE |
— | ||
|
8
|
8
77105-SH3-010
Blind
|
77105-SH3-010 |
— | ||
|
9
|
9
77117-SH4-000ZD
Lid
|
77117-SH4-000ZD |
— | ||
|
10
|
10
77131-SH3-013ZA LidCLOCK HOLE *NH1L* |
77131-SH3-013ZA |
US $6.86 |
||
|
11
|
11
77132-SH3-010ZC
Lid
|
77132-SH3-010ZC |
— | ||
|
12
|
12
77140-SH3-A02
Frame assy
|
77140-SH3-A02 |
— | ||
|
13
|
13
77142-SH3-000
Pipe
|
77142-SH3-000 |
— | ||
|
14
|
14
77143-SH5-A01
Bracket
|
77143-SH5-A01 |
— | ||
|
15
|
15
77145-SH5-A20
Bracket
|
77145-SH5-A20 |
— | ||
|
16
|
16
77151-SH5-A01
Frame
|
77151-SH5-A01 |
— | ||
|
17
|
17
77161-SH3-010ZG
Garnish
|
77161-SH3-010ZG |
— | ||
|
18
|
18
77162-SH3-010ZG
Garnish
|
77162-SH3-010ZG |
— | ||
|
19
|
19
77176-SH5-010
Frame assy
|
77176-SH5-010 |
— | ||
|
20
|
20
77177-SH5-010
Frame assy
|
77177-SH5-010 |
— | ||
|
21
|
21
77180-SH5-000
Bracket
|
77180-SH5-000 |
— | ||
|
22
|
22
77200-SH5-A01ZC
Visor assy
|
77200-SH5-A01ZC |
— | ||
|
23
|
23
77201-SH5-A02ZC
Visor
|
77201-SH5-A02ZC |
— | ||
|
24
|
24
77202-SH5-020ZC
Lid
|
77202-SH5-020ZC |
— | ||
|
25
|
25
77230-SE3-A02 Lid assyAUDIO HOLE |
77230-SE3-A02 |
US $18.69 |
||
|
26
|
26
77233-SH3-A01
Panel
|
77233-SH3-A01 |
— | ||
|
27
|
27
77251-SH3-010ZE
Lid
|
77251-SH3-010ZE |
— | ||
|
28
|
28
77259-SH3-000ZD
Lid
|
77259-SH3-000ZD |
— | ||
|
29
|
29
77301-SH5-A01ZC
Cover
|
77301-SH5-A01ZC |
— | ||
|
30
|
30
77355-SH5-A00
Blind
|
77355-SH5-A00 |
— | ||
|
31
|
31
77466-SH5-000
Seal
|
77466-SH5-000 |
— | ||
|
32
|
32
77615-SH3-G03ZD
Case assy.
|
77615-SH3-G03ZD |
— | ||
|
33
|
33
77630-SH3-G04ZC
Outlet assy
|
77630-SH3-G04ZC |
— | ||
|
34
|
34
77640-SH3-033ZF Outlet assyL. SIDE *NH89L* |
77640-SH3-033ZF |
US $34.94 |
||
|
35
|
35
77750-SH3-010ZE
Pocket assy
|
77750-SH3-010ZE |
— | ||
|
36
|
36
77755-SH3-010
Spring
|
77755-SH3-010 |
— | ||
|
37
|
37
77762-SD4-000
Label
|
77762-SD4-000 |
— | ||
|
38
|
38
90105-634-000 Bolt-washer (8x20)8x20 |
90105-634-000 |
US $3.02 |
||
|
39
|
39
90128-SA7-000 Bolt-washer6X25 |
90128-SA7-000 |
US $3.58 |
||
|
40
|
40
90137-SH3-000 ScrewTAPPING, 4X16 |
90137-SH3-000 |
from US $1.70 |
||
|
41
|
41
90139-SH3-003
Bolt-washer
|
90139-SH3-003 |
— | ||
|
42
|
42
90157-SA0-000 Bolt-washer8X25 |
90157-SA0-000 |
US $2.37 |
||
|
43
|
43
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
44
|
44
90106-SD2-000
Nut
|
90106-SD2-000 |
— | ||
|
45
|
45
90334-SH3-000
Nut
|
90334-SH3-000 |
— | ||
|
46
|
46
90650-SE3-000 ClipRADIO PANEL |
90650-SE3-000 |
US $1.68 |
||
|
47
|
47
90659-SA5-003 GrommetSCREW, 4MM |
90659-SA5-003 |
US $2.24 |
||
|
48
|
48
90666-SD4-003 ClipFITTING |
90666-SD4-003 |
from US $1.92 |
||
|
49
|
49
90669-SH3-000
Clip
|
90669-SH3-000 |
— | ||
|
50
|
50
90681-693-000 GrommetSCREW, 4MM |
90681-693-000 |
US $2.52 |
||
|
51
|
51
90685-SH3-003ZA
Clip
|
90685-SH3-003ZA |
— | ||
|
52
|
52
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
53
|
53
93404-080-160-8 Bolt-washer8X16 |
93404-080-160-8 |
from US $0.67 |
||
|
54
|
54
93405-060-120-8 Bolt-washer6X12 |
93405-060-120-8 |
from US $0.59 |
||
|
55
|
55
93903-44480 ScrewTAPPING, 4X16 |
93903-44480 |
from US $0.37 |
||
|
56
|
56
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
