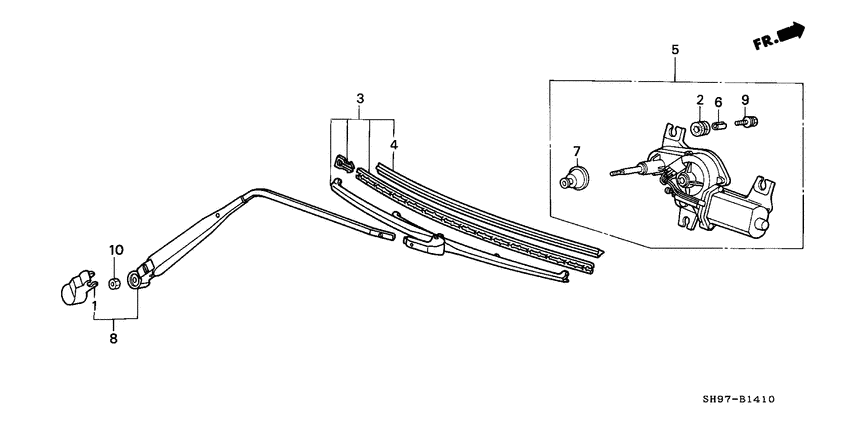

Rear wiper Diagram Honda CIVIC SHUTTLE
- Year
- 1993
- Model code
- CIVIC SHUTTLE
- Sales region
- General
- Engine
- D16Z
- transmission
- 4AT
- Number of doors
- 5
- grade
- 1.6I-4WD
- area code
- KX
- left-hand drive
- +
- power window
- +
- air conditioner (dealer set)
- +
- 4wd
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38431-SB6-003 CoverARM |
38431-SB6-003 |
US $5.18 |
||
|
2
|
2
38448-SD2-003 RubberWIPER MOUNTING |
38448-SD2-003 |
US $1.61 |
||
|
3
|
3
38450-693-023
Blade
|
38450-693-023 |
— | ||
| replacement | |||||
|
3
|
3
38450-693-305
Blade wshld wiper
|
38450-693-305 |
— | ||
|
4
|
4
38452-693-013 Rubber |
38452-693-013 |
US $9.94 |
||
|
5
|
5
76700-SH5-S05
Motor
|
76700-SH5-S05 |
— | ||
|
6
|
6
76702-SE1-003
Collar
|
76702-SE1-003 |
— | ||
|
7
|
7
76711-SH5-003
Cap
|
76711-SH5-003 |
— | ||
|
8
|
8
76720-SH5-003
Arm
|
76720-SH5-003 |
— | ||
|
9
|
9
93405-060-200-8 Bolt-washer6X20 |
93405-060-200-8 |
from US $0.59 |
||
|
10
|
10
94001-060-000-S
Nut
|
94001-060-000-S |
— | ||
| replacement | |||||
|
10
|
10
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
