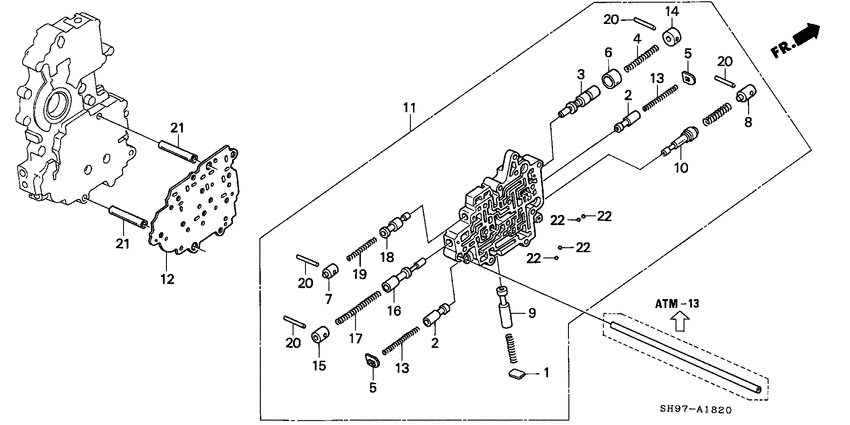

Secondary body Diagram Honda CIVIC SHUTTLE
- Year
- 1993
- Model code
- CIVIC SHUTTLE
- Sales region
- General
- Engine
- D16Z
- transmission
- 4AT
- Number of doors
- 5
- grade
- 1.6I-4WD
- area code
- KX
- left-hand drive
- +
- power window
- +
- air conditioner (dealer set)
- +
- 4wd
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27263-PA9-000 Seat Valve Sping 1.0mmVALVE SPRING, 1.0MM |
27263-PA9-000 |
US $2.66 |
||
|
2
|
2
27415-PC9-010
Valve
|
27415-PC9-010 |
— | ||
|
3
|
3
27415-PL5-000
Valve
|
27415-PL5-000 |
— | ||
|
4
|
4
27417-PL5-000
Spring
|
27417-PL5-000 |
— | ||
|
5
|
5
27419-PC9-010 SEAT, VALVE SPRINGVALVE SPRING |
27419-PC9-010 |
US $2.10 |
||
|
6
|
6
27646-PG4-000
Sleeve
|
27646-PG4-000 |
— | ||
|
7
|
7
27653-PF4-000 CapCLUTCH PRESSURE CONTROL VALVE |
27653-PF4-000 |
US $2.17 |
||
|
8
|
8
27653-P25-J00 CapCLUTCH PRESSURE CONTROL VALVE |
27653-P25-J00 |
US $3.01 |
||
|
9
|
9
27655-PC9-950
Valve
|
27655-PC9-950 |
— | ||
|
10
|
10
27655-P48-J00
Valve
|
27655-P48-J00 |
— | ||
|
11
|
11
27700-P25-J00 Body assySECONDARY |
27700-P25-J00 |
US $261.12 |
||
|
12
|
12
27712-P25-J01 PlateSECONDARY SEPARATING |
27712-P25-J01 |
US $12.32 |
||
|
13
|
13
27722-PS5-000
Spring
|
27722-PS5-000 |
— | ||
|
14
|
14
27724-PG4-000 CapKICK DOWN VALVE |
27724-PG4-000 |
US $3.92 |
||
|
15
|
15
27728-PF4-000 CapREVERSE CONTROL VALVE |
27728-PF4-000 |
US $1.54 |
||
|
16
|
16
27756-PS5-020
Valve
|
27756-PS5-020 |
— | ||
|
17
|
17
27757-PS5-020
Spring
|
27757-PS5-020 |
— | ||
|
18
|
18
27771-PS5-000
Valve
|
27771-PS5-000 |
— | ||
|
19
|
19
27772-PS5-000
Spring
|
27772-PS5-000 |
— | ||
|
20
|
20
91101-PF4-003 Roller3.5X21.8 |
91101-PF4-003 |
from US $1.19 |
||
|
21
|
21
91704-PF4-000 Dowel pin8X40 |
91704-PF4-000 |
from US $2.24 |
||
|
22
|
22
96211-07000 BallSTEEL, #7 (7/32) |
96211-07000 |
from US $0.15 |
