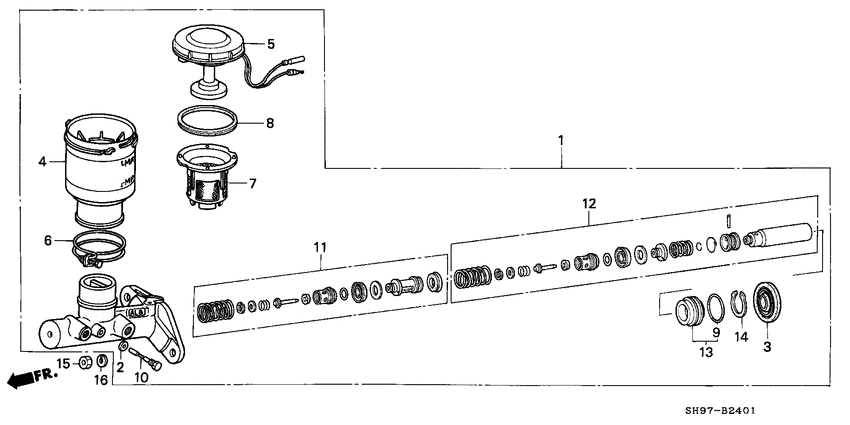

Brake master cylinder (ABS) Diagram Honda CIVIC SHUTTLE
- Year
- 1993
- Model code
- CIVIC SHUTTLE
- Sales region
- General
- Engine
- D16Z
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.6I-4WD
- abs
- +
- area code
- KX
- left-hand drive
- +
- power window
- +
- air conditioner (dealer set)
- +
- 4wd
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46100-SH3-G52 Cylinder assy.MASTER |
46100-SH3-G52 |
US $321.28 |
||
|
2
|
2
46138-568-671
Packing
|
46138-568-671 |
— | ||
|
3
|
3
46185-SE0-003 SealROD |
46185-SE0-003 |
from US $3.33 |
||
|
4
|
4
46660-SE0-013
Tank
|
46660-SE0-013 |
— | ||
|
5
|
5
46662-SK7-J01
Cap comp.
|
46662-SK7-J01 |
— | ||
|
6
|
6
46665-ST5-003 BandRESERVE TANK |
46665-ST5-003 |
US $5.88 |
||
|
7
|
7
46666-SE0-003
Filter
|
46666-SE0-003 |
— | ||
|
8
|
8
46669-692-003 SealRESERVE TANK |
46669-692-003 |
US $8.73 |
||
|
9
|
9
57173-SB0-801 O-ringCONNECTOR |
57173-SB0-801 |
US $2.07 |
||
|
10
|
10
57515-SG0-812
Bolt comp
|
57515-SG0-812 |
— | ||
|
11
|
11
57520-SF1-013 Piston assy.PRIMARY |
57520-SF1-013 |
US $38.66 |
||
|
12
|
12
57540-SF1-013 Piston assy.SECONDARY |
57540-SF1-013 |
US $39.81 |
||
|
13
|
13
57560-SF1-003
Guide assy
|
57560-SF1-003 |
— | ||
|
14
|
14
57562-SF1-003 Circlip |
57562-SF1-003 |
US $2.17 |
||
|
15
|
15
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
15
|
15
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
16
|
16
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
