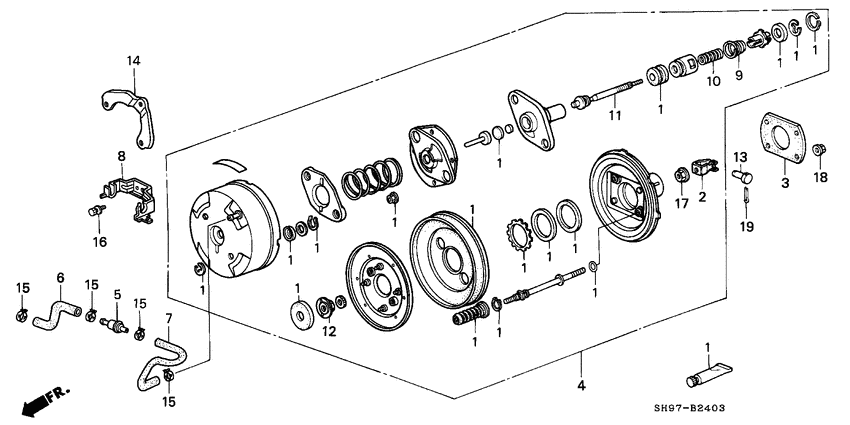

Master power (ABS) Diagram Honda CIVIC SHUTTLE
- Year
- 1993
- Model code
- CIVIC SHUTTLE
- Sales region
- General
- Engine
- D16Z
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.6I-4WD
- abs
- +
- area code
- KX
- left-hand drive
- +
- power window
- +
- air conditioner (dealer set)
- +
- 4wd
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06464-SH4-000
Power set
|
06464-SH4-000 |
— | ||
|
2
|
2
46151-SB2-003 YokePUSH ROD (NISSIN) |
46151-SB2-003 |
US $18.92 |
||
|
3
|
3
46191-634-000 GasketMASTER CYLINDER BRACKET |
46191-634-000 |
US $5.03 |
||
|
4
|
4
46400-SF1-023
Power assy.
|
46400-SF1-023 |
— | ||
|
5
|
5
46403-SE0-003
Valve comp.
|
46403-SE0-003 |
— | ||
|
6
|
6
46404-SH3-G50
Tube a
|
46404-SH3-G50 |
— | ||
|
7
|
7
46405-SH3-G50
Tube b
|
46405-SH3-G50 |
— | ||
|
8
|
8
46406-SH9-G81
Stay
|
46406-SH9-G81 |
— | ||
|
9
|
9
46431-692-003
Spring
|
46431-692-003 |
— | ||
|
10
|
10
46432-SA0-003
Spring
|
46432-SA0-003 |
— | ||
|
11
|
11
46433-SB2-003
Rod comp
|
46433-SB2-003 |
— | ||
|
12
|
12
46443-692-003 AdjusterPUSH ROD |
46443-692-003 |
US $2.80 |
||
|
13
|
13
46512-SB2-000 PinPEDAL |
46512-SB2-000 |
US $4.22 |
||
|
14
|
14
46674-SH9-G80
Bracket
|
46674-SH9-G80 |
— | ||
|
15
|
15
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.51 |
||
|
16
|
16
93402-060-100-8 Bolt-washer6X10 |
93402-060-100-8 |
from US $0.52 |
||
|
17
|
17
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
18
|
18
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
19
|
19
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
| replacement | |||||
|
19
|
19
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
