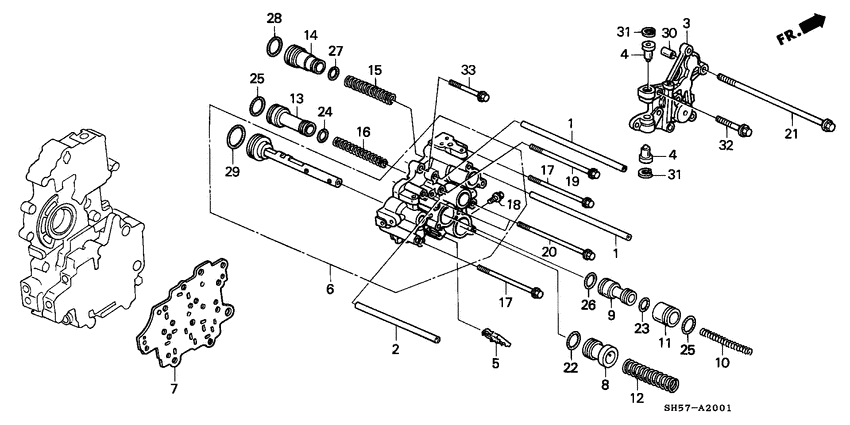

Servo body (4WD) Diagram Honda CIVIC SHUTTLE
- Year
- 1991
- Model code
- CIVIC SHUTTLE
- Sales region
- General
- Engine
- D16Z
- transmission
- 4AT
- Number of doors
- 5
- grade
- 1.6I-4WD
- area code
- KX
- left-hand drive
- +
- catalyst
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22744-PG4-000 PipeTOP CLUTCH |
22744-PG4-000 |
US $7.56 |
||
|
2
|
2
22748-PS5-900 Pipe8X71 |
22748-PS5-900 |
US $2.10 |
||
|
3
|
3
24278-PS5-900 BaseSERVO DETENT |
24278-PS5-900 |
US $23.04 |
||
|
4
|
4
24530-PN1-000
Sleeve comp.
|
24530-PN1-000 |
— | ||
|
5
|
5
25422-PN6-801 Magnet comp.TRANSMISSION |
25422-PN6-801 |
US $7 |
||
|
6
|
6
27405-PS5-900
Body sub assy.
|
27405-PS5-900 |
— | ||
|
7
|
7
27412-PS5-900 PlateSERVO SEPARATING |
27412-PS5-900 |
US $13.44 |
||
|
8
|
8
27561-PF0-000
Piston
|
27561-PF0-000 |
— | ||
|
9
|
9
27561-PS5-000 PistonLOW ACCUMULATOR (L 37.5) |
27561-PS5-000 |
US $9.80 |
||
|
10
|
10
27562-PS5-003
Spring
|
27562-PS5-003 |
— | ||
|
11
|
11
27563-PS5-000 CollarLOW ACCUMULATOR |
27563-PS5-000 |
US $9.52 |
||
|
12
|
12
27564-PS5-000
Spring b
|
27564-PS5-000 |
— | ||
|
13
|
13
27574-PL4-000 PistonTHIRD ACCUMULATOR |
27574-PL4-000 |
US $12.88 |
||
|
14
|
14
27576-PN6-800
Piston
|
27576-PN6-800 |
— | ||
|
15
|
15
27577-PL4-000
Spring
00000000 - 3005108 |
27577-PL4-000 |
— | ||
|
15
|
15
27577-P25-J00
Spring
3005109 - |
27577-P25-J00 |
— | ||
|
16
|
16
27583-P25-J00
Spring
3005109 - |
27583-P25-J00 |
— | ||
|
16
|
16
27583-PS5-900
Spring
00000000 - 3005108 |
27583-PS5-900 |
— | ||
|
17
|
17
90004-PC9-000 BoltFLANGE, 6X90 |
90004-PC9-000 |
US $3.36 |
||
|
18
|
18
90004-415-000 BoltFLANGE, 6X14 |
90004-415-000 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
96001-060-140-0 BoltFLANGE, 6X14 |
96001-060-140-0 |
from US $0.59 |
||
|
19
|
19
90011-PF0-000
Bolt
|
90011-PF0-000 |
— | ||
|
20
|
20
90017-PF4-000 BoltFLANGE, 6X127 |
90017-PF4-000 |
US $2.52 |
||
|
21
|
21
90019-PF4-000 BoltFLANGE, 6X152 |
90019-PF4-000 |
US $4.34 |
||
|
22
|
22
91302-PF0-003 O-ring26.9X2.4 (NOK) |
91302-PF0-003 |
from US $1.70 |
||
|
23
|
23
91304-PS5-003 O-ring17.3X2.4 |
91304-PS5-003 |
from US $3.33 |
||
|
24
|
24
91321-PF4-004 O-ring18.3X2.4(NOK) |
91321-PF4-004 |
from US $1.85 |
||
|
25
|
25
91324-PF4-004 O-ring28.3X2.4 (NOK) |
91324-PF4-004 |
from US $1.78 |
||
|
26
|
26
91326-PF4-004 O-ring24.4X2.4 (NOK) |
91326-PF4-004 |
from US $1.68 |
||
|
27
|
27
91331-PC9-004 O-ring21.2X2.4 (NOK) |
91331-PC9-004 |
US $3.21 |
||
| replacement | |||||
|
27
|
27
91331-PC9-003 O-ring |
91331-PC9-003 |
from US $2.37 |
||
|
27
|
27
91331-PC9-003 O-ring |
91331-PC9-003 |
from US $2.37 |
||
|
28
|
28
91344-PC9-003
O-ring
|
91344-PC9-003 |
— | ||
|
28
|
28
91344-PC9-004 O-ring29X2.4 (NOK) |
91344-PC9-004 |
from US $2.44 |
||
|
29
|
29
91344-580-000 O-ring31X2.7 (ARAI) |
91344-580-000 |
US $2 |
||
|
30
|
30
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
31
|
31
94521-15000 CirclipINTERNAL, 15MM |
94521-15000 |
US $0.44 |
||
|
32
|
32
95701-060-350-8 BoltFLANGE, 6X35 |
95701-060-350-8 |
from US $0.59 |
||
|
33
|
33
95701-060-550-8 BoltFLANGE, 6X55 |
95701-060-550-8 |
from US $0.81 |
||
