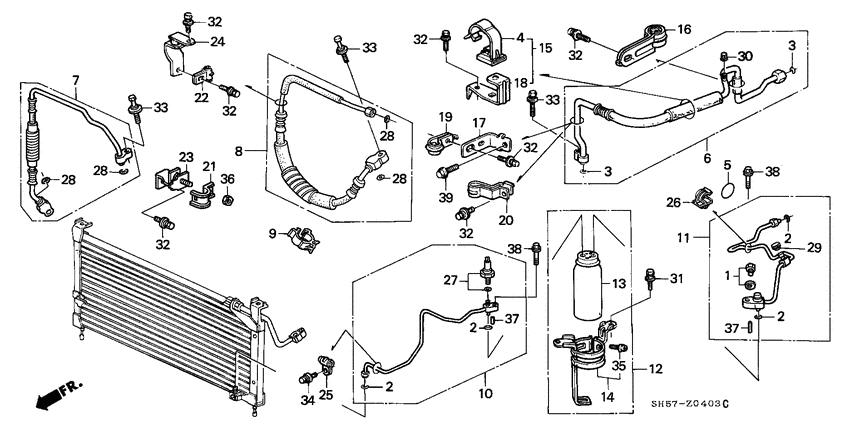

Air conditioner (HOSES/PIPES; 4) Diagram Honda CIVIC SHUTTLE
- Year
- 1989
- Model code
- CIVIC SHUTTLE
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.6I-4WD
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38642-692-013
Plug
|
38642-692-013 |
— | ||
|
2
|
2
38646-692-660
O-ring
|
38646-692-660 |
— | ||
| replacement | |||||
|
2
|
2
80874-SL0-900 O-ring3/8" |
80874-SL0-900 |
US $3.74 |
||
|
3
|
3
38648-692-660 O-ring5/8" |
38648-692-660 |
US $2.87 |
||
|
4
|
4
38677-SB2-003
Clamp
|
38677-SB2-003 |
— | ||
|
6
|
6
80311-SH3-013
Hose comp.
|
80311-SH3-013 |
— | ||
|
8
|
8
80315-SH3-023
Hose comp.
|
80315-SH3-023 |
— | ||
|
10
|
10
80331-SH3-023
Pipe
|
80331-SH3-023 |
— | ||
|
11
|
11
80341-SH3-902
Pipe
|
80341-SH3-902 |
— | ||
|
12
|
12
80350-SJ4-000
Receiver assy
|
80350-SJ4-000 |
— | ||
|
14
|
14
80352-SH3-000
Bracket
|
80352-SH3-000 |
— | ||
|
15
|
15
80360-SJ4-000
Stay comp
|
80360-SJ4-000 |
— | ||
|
16
|
16
80361-SH3-010
Bracket
|
80361-SH3-010 |
— | ||
|
17
|
17
80362-SH3-000
Stay
|
80362-SH3-000 |
— | ||
|
18
|
18
80363-SH3-000
Stay b
|
80363-SH3-000 |
— | ||
|
19
|
19
80364-SH3-000
Clamp b
|
80364-SH3-000 |
— | ||
|
20
|
20
80364-SH3-900
Clamp b
|
80364-SH3-900 |
— | ||
|
22
|
22
80371-SH3-000
Clamp
|
80371-SH3-000 |
— | ||
|
24
|
24
80375-SH3-010
Rubber
|
80375-SH3-010 |
— | ||
|
25
|
25
80381-SH3-000 ClampRECEIVER PIPE |
80381-SH3-000 |
US $5.88 |
||
|
26
|
26
80382-SH3-003
Clip
|
80382-SH3-003 |
— | ||
|
27
|
27
80440-SE0-003
Switch
|
80440-SE0-003 |
— | ||
|
28
|
28
91315-SE0-000 O-ring1/2" |
91315-SE0-000 |
US $2.10 |
||
|
29
|
29
91638-SF1-003 CapVALVE (SAK) |
91638-SF1-003 |
US $2.24 |
||
|
32
|
32
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
33
|
33
93403-080-350-8 Bolt-washer8X35 |
93403-080-350-8 |
US $0.81 |
||
|
34
|
34
93405-060-120-7 Bolt-washer6X12 |
93405-060-120-7 |
US $0.59 |
||
|
35
|
35
93893-050-200-8 Screw-washer5X20 |
93893-050-200-8 |
from US $0.52 |
||
|
37
|
37
94305-30102 PinSPRING, 3X10 |
94305-30102 |
from US $0.65 |
||
|
38
|
38
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
39
|
39
95701-100-200-8 BoltFLANGE, 10X20 |
95701-100-200-8 |
from US $0.74 |
||
