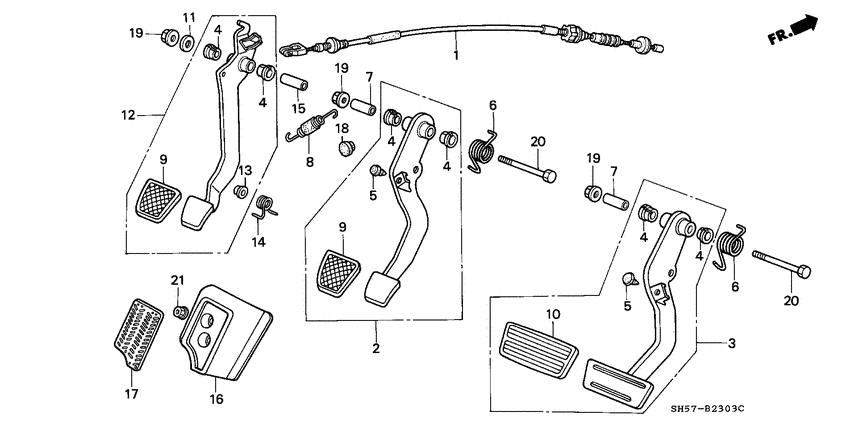

Brake pedal/clutch pedal (2) Diagram Honda CIVIC SHUTTLE
- Year
- 1989
- Model code
- CIVIC SHUTTLE
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.6I-4WD
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22910-SH5-602
Wire comp
00000000 - 0S102693 |
22910-SH5-602 |
— | ||
|
1
|
1
22910-SH5-603
Wire comp
0S102694 - |
22910-SH5-603 |
— | ||
|
2
|
2
46500-SH3-000
Pedal assy
|
46500-SH3-000 |
— | ||
|
4
|
4
46504-679-300 BushPEDAL |
46504-679-300 |
from US $5.37 |
||
|
5
|
5
46505-SA5-000 PadPEDAL STOPPER |
46505-SA5-000 |
from US $2.59 |
||
|
6
|
6
46530-SH3-000
Spring
|
46530-SH3-000 |
— | ||
|
7
|
7
46535-692-000 CollarPEDAL |
46535-692-000 |
US $6.86 |
||
|
8
|
8
46540-SH5-010
Spring assy
00000000 - 0S102537 |
46540-SH5-010 |
— | ||
|
9
|
9
46545-SA5-000 Cover, Pedal |
46545-SA5-000 |
from US $5.03 |
||
|
11
|
11
90510-SH3-000
Washer
0S102538 - |
90510-SH3-000 |
— | ||
|
11
|
11
94101-10800 WasherPLAIN, 10MM 00000000 - 0S102537 |
94101-10800 |
from US $0.52 |
||
|
12
|
12
46900-SH5-J00
Pedal assy
0S102538 - |
46900-SH5-J00 |
— | ||
|
12
|
12
46900-SH5-010 Pedal assyCLUTCH 00000000 - 0S102537 |
46900-SH5-010 |
US $37.63 |
||
|
13
|
13
46902-SE0-930
Bush a
0S102538 - |
46902-SE0-930 |
— | ||
|
14
|
14
46907-SH3-000
Spring
0S102538 - |
46907-SH3-000 |
— | ||
|
15
|
15
46935-SB2-000
Collar
00000000 - 0S102537 |
46935-SB2-000 |
— | ||
|
16
|
16
46991-SH5-003
Bracket
|
46991-SH5-003 |
— | ||
|
17
|
17
46992-SH3-013
Plate
|
46992-SH3-013 |
— | ||
|
19
|
19
90212-SA5-003 NutSELF-LOCK, 10MM |
90212-SA5-003 |
from US $2.74 |
||
|
20
|
20
92201-10070-0J BoltHEX., 10X70 |
92201-10070-0J |
US $1.04 |
||
|
21
|
21
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
