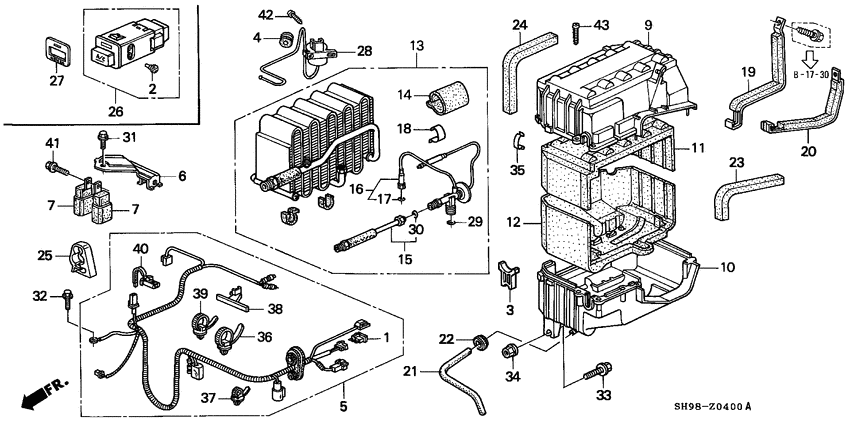

Air conditioner (UNIT) Diagram Honda CIVIC SHUTTLE
- Year
- 1995
- Model code
- CIVIC SHUTTLE
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 5
- grade
- 55X
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32146-SD2-013 Diode3P |
32146-SD2-013 |
US $12.60 |
||
|
2
|
2
35851-SB2-003 BulbNEO WEDGE (14V 65MA) |
35851-SB2-003 |
US $3.26 |
||
|
3
|
3
38625-SB2-000 HolderEVAPORATOR PIPE |
38625-SB2-000 |
US $2.45 |
||
|
4
|
4
38625-692-000
Grommet
|
38625-692-000 |
— | ||
|
5
|
5
38710-SH3-030
Harness
|
38710-SH3-030 |
— | ||
|
6
|
6
39792-SH7-000
Bracket b
|
39792-SH7-000 |
— | ||
|
7
|
7
39795-SB2-003 Relay assyPOWER (4P) (MITSUBA) (RC-2201) |
39795-SB2-003 |
US $40.58 |
||
|
9
|
9
80201-SH3-000
Case
|
80201-SH3-000 |
— | ||
|
10
|
10
80202-SH3-000
Case
|
80202-SH3-000 |
— | ||
|
11
|
11
80205-SH3-000 InsulatorEVAPORATOR UPPER |
80205-SH3-000 |
US $14.72 |
||
|
12
|
12
80206-SH3-000 InsulatorEVAPORATOR LOWER |
80206-SH3-000 |
US $14.72 |
||
|
13
|
13
80210-SH9-003
Evaporator sub assy.
|
80210-SH9-003 |
— | ||
|
14
|
14
80214-SL5-A01 InsulatorEXPANSION |
80214-SL5-A01 |
US $12.21 |
||
|
15
|
15
80216-SH9-003
Pipe
|
80216-SH9-003 |
— | ||
|
16
|
16
80220-ST7-A02
Valve assy.
|
80220-ST7-A02 |
— | ||
|
17
|
17
80223-ST7-A01 O-ringFUJI KOKI |
80223-ST7-A01 |
US $2.73 |
||
|
18
|
18
80225-SR3-010 Clamp |
80225-SR3-010 |
US $2.38 |
||
|
19
|
19
80261-SH3-000
Band a
|
80261-SH3-000 |
— | ||
|
20
|
20
80265-SH3-000 Band bAIR CONDITIONER |
80265-SH3-000 |
US $14.08 |
||
|
21
|
21
80271-SH3-000
Hose
|
80271-SH3-000 |
— | ||
|
22
|
22
80272-SH3-960
Grommet
|
80272-SH3-960 |
— | ||
|
23
|
23
80286-SH3-000 SealEVAPORATOR INNER |
80286-SH3-000 |
US $7.14 |
||
|
24
|
24
80287-SH3-000 SealEVAPORATOR OUTER |
80287-SH3-000 |
US $7.14 |
||
|
25
|
25
80388-SH3-003
Clamp
|
80388-SH3-003 |
— | ||
|
26
|
26
80410-SH3-013
Switch assy
|
80410-SH3-013 |
— | ||
|
27
|
27
80411-SH3-003
Panel
|
80411-SH3-003 |
— | ||
|
28
|
28
80430-SF1-003
Thermostat
|
80430-SF1-003 |
— | ||
|
29
|
29
80872-ST7-000 O-ring1/2" |
80872-ST7-000 |
from US $2.52 |
||
|
30
|
30
80873-ST7-000 O-ring8MM |
80873-ST7-000 |
from US $2.74 |
||
|
31
|
31
90136-SH3-000
Bolt-washer
|
90136-SH3-000 |
— | ||
|
32
|
32
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
33
|
33
90156-SH3-000 Bolt-washer6X24 |
90156-SH3-000 |
US $2.52 |
||
|
34
|
34
90222-SB4-000 Nut-washer6MM |
90222-SB4-000 |
from US $0.41 |
||
|
35
|
35
90659-692-000 ClampCASE |
90659-692-000 |
from US $2.10 |
||
|
36
|
36
91547-SF4-003 BandWIRE HARNESS (BLUE) (123.5MM) |
91547-SF4-003 |
from US $3.40 |
||
|
37
|
37
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $3.40 |
||
|
38
|
38
91557-SH3-003 ClipWIRE HARNESS (BLACK) (54MM) |
91557-SH3-003 |
US $1.82 |
||
|
39
|
39
91567-SE0-003 BandWIRE HARNESS(WHITE) (93.5MM) |
91567-SE0-003 |
from US $3.08 |
||
|
40
|
40
91570-SH3-003 BandWIRE HARNESS (NATURAL) |
91570-SH3-003 |
US $3.15 |
||
|
41
|
41
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.47 |
||
|
42
|
42
93913-14220 ScrewTAPPING, 4X12 |
93913-14220 |
from US $0.37 |
||
|
43
|
43
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
