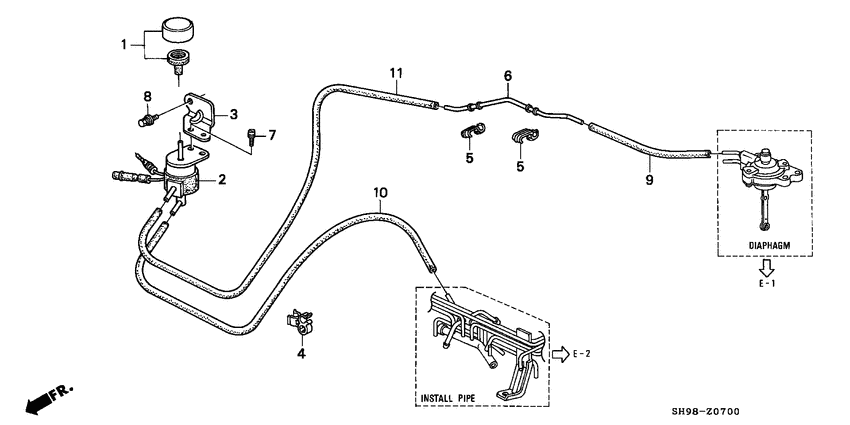

Air conditioner (CARBURETOR COMPONENTS) Diagram Honda CIVIC SHUTTLE
- Year
- 1995
- Model code
- CIVIC SHUTTLE
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 5
- grade
- 55X
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36138-PM1-G01
Filter assy
|
36138-PM1-G01 |
— | ||
|
2
|
2
38771-PM3-004
Valve assy.
|
38771-PM3-004 |
— | ||
|
3
|
3
38775-PM3-000
Stay
|
38775-PM3-000 |
— | ||
|
4
|
4
38777-PM3-004
Clamp
|
38777-PM3-004 |
— | ||
|
5
|
5
38778-PM3-000
Clamp b
|
38778-PM3-000 |
— | ||
|
6
|
6
38785-PM3-000
Pipe
|
38785-PM3-000 |
— | ||
|
7
|
7
90092-657-000 Screw-washer5X8 |
90092-657-000 |
from US $1.32 |
||
|
8
|
8
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
9
|
9
95005-351-101-0 Tube3.5X110 (95005-35001-10M) |
95005-351-101-0 |
US $1.55 |
||
|
10
|
10
95005-352-401-0 Tube3.5X240 (95005-35001-10M) |
95005-352-401-0 |
US $2.81 |
||
|
11
|
11
95005-352-901-0
Tube
|
95005-352-901-0 |
— |
