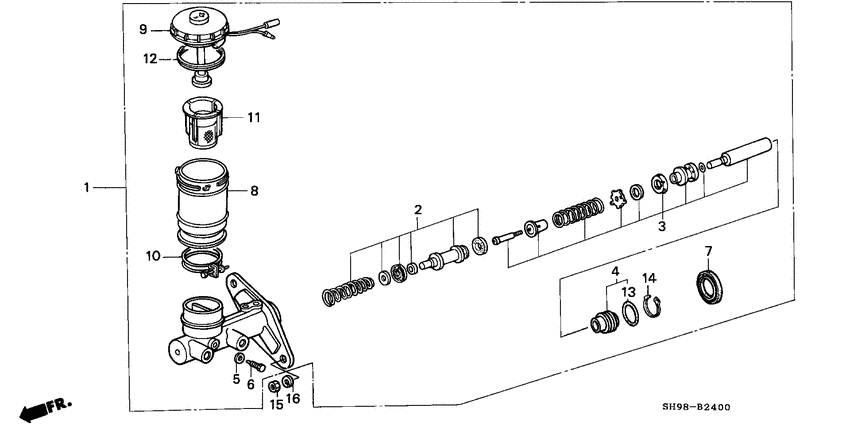

Brake master cylinder Diagram Honda CIVIC SHUTTLE
- Year
- 1995
- Model code
- CIVIC SHUTTLE
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 5
- grade
- 55X
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46100-SH3-033 Cylinder assy.MASTER |
46100-SH3-033 |
US $321.28 |
||
|
2
|
2
46120-SH3-003 Piston assy.PRIMARY |
46120-SH3-003 |
US $21.76 |
||
|
3
|
3
46122-SH3-003
Piston assy.
|
46122-SH3-003 |
— | ||
|
4
|
4
46135-SF4-003 Guide assyPISTON |
46135-SF4-003 |
US $12.74 |
||
|
5
|
5
46138-568-671
Packing
|
46138-568-671 |
— | ||
|
6
|
6
46139-632-000
Bolt
|
46139-632-000 |
— | ||
|
7
|
7
46185-SE0-003 SealROD |
46185-SE0-003 |
from US $3.33 |
||
|
8
|
8
46660-SC2-013
Tank
|
46660-SC2-013 |
— | ||
|
9
|
9
46662-SH3-003 Cap comp.RESERVE TANK |
46662-SH3-003 |
US $45.95 |
||
|
10
|
10
46665-ST5-003 BandRESERVE TANK |
46665-ST5-003 |
US $5.88 |
||
|
11
|
11
46666-692-013 FilterMASTER CYLINDER |
46666-692-013 |
US $12.18 |
||
|
12
|
12
46669-692-003 SealRESERVE TANK |
46669-692-003 |
US $8.73 |
||
|
13
|
13
57173-SB0-801 O-ringCONNECTOR |
57173-SB0-801 |
US $2.07 |
||
|
14
|
14
57562-SF1-003 Circlip |
57562-SF1-003 |
US $2.17 |
||
|
15
|
15
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
US $0.44 |
||
| replacement | |||||
|
15
|
15
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.44 |
||
|
16
|
16
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
