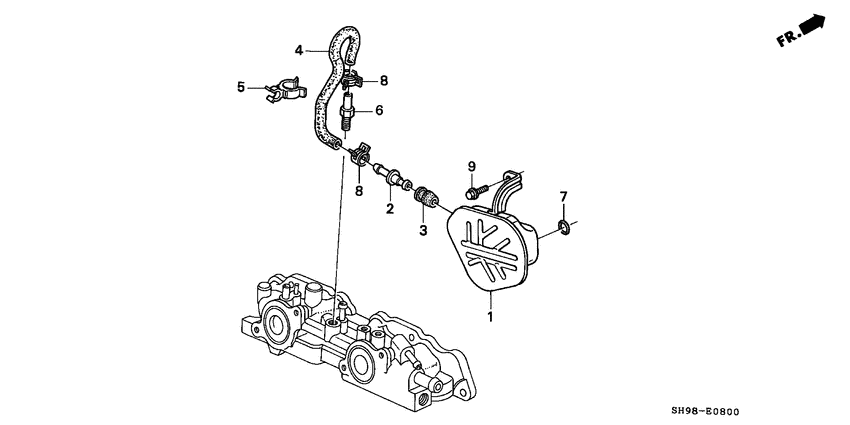

Breather chamber Diagram Honda CIVIC SHUTTLE
- Year
- 1995
- Model code
- CIVIC SHUTTLE
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 5
- grade
- 55X
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11850-PM3-000
Chamber comp
|
11850-PM3-000 |
— | ||
| replacement | |||||
|
1
|
1
11851-P01-000
Chamber set
|
11851-P01-000 |
— | ||
|
2
|
2
11854-PM3-000 JointBREATHER CHAMBER |
11854-PM3-000 |
US $3.67 |
||
|
3
|
3
11855-PC6-000
Grommet
|
11855-PC6-000 |
— | ||
|
4
|
4
11856-PM4-000
Tube
|
11856-PM4-000 |
— | ||
|
5
|
5
11857-PM4-003
Clamp
|
11857-PM4-003 |
— | ||
|
6
|
6
17130-PM3-003
Valve assy.
|
17130-PM3-003 |
— | ||
|
7
|
7
91324-PC6-000 O-ring20.6X2.6 |
91324-PC6-000 |
from US $2.44 |
||
|
8
|
8
91405-679-004 ClampTUBE (D17) |
91405-679-004 |
US $3.92 |
||
| replacement | |||||
|
8
|
8
91405-PM5-004 ClampTUBE (D17) |
91405-PM5-004 |
from US $6.81 |
||
|
9
|
9
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
