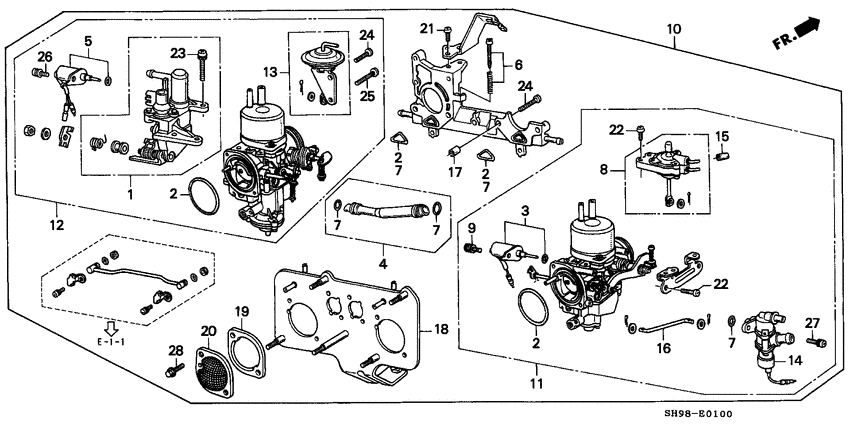

Carburetor assy. Diagram Honda CIVIC SHUTTLE
- Year
- 1995
- Model code
- CIVIC SHUTTLE
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 5
- grade
- 55X
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06161-P03-900
Valve kit
|
06161-P03-900 |
— | ||
|
2
|
2
16010-PM2-B01
Gasket set
|
16010-PM2-B01 |
— | ||
|
3
|
3
16024-PM4-005
Solenoid
|
16024-PM4-005 |
— | ||
|
4
|
4
16026-PC7-661
Joint set
|
16026-PC7-661 |
— | ||
|
5
|
5
16036-PM4-005
Solenoid
|
16036-PM4-005 |
— | ||
|
6
|
6
16038-PC6-005
Screw set
|
16038-PC6-005 |
— | ||
|
7
|
7
16039-PH5-005
Packing set
|
16039-PH5-005 |
— | ||
|
8
|
8
16045-PM4-900
Diaphragm set
|
16045-PM4-900 |
— | ||
|
9
|
9
16080-PC7-661
Screw
|
16080-PC7-661 |
— | ||
|
10
|
10
16100-PM4-905
Carburetor assy
|
16100-PM4-905 |
— | ||
|
11
|
11
16101-PM4-908
Carburetor assy.
|
16101-PM4-908 |
— | ||
|
12
|
12
16102-PM4-908
Carburetor assy.
|
16102-PM4-908 |
— | ||
|
13
|
13
16045-PR2-T51
Diaphragm assy.
|
16045-PR2-T51 |
— | ||
|
14
|
14
16120-PM4-005
Valve assy.
|
16120-PM4-005 |
— | ||
|
15
|
15
16139-PJ7-005
Cap
|
16139-PJ7-005 |
— | ||
|
16
|
16
16145-PR6-000
Rod
|
16145-PR6-000 |
— | ||
|
17
|
17
16178-463-004
Pin
|
16178-463-004 |
— | ||
|
18
|
18
16410-PM4-900
Flange comp
|
16410-PM4-900 |
— | ||
|
19
|
19
17265-PC6-000
Flange
|
17265-PC6-000 |
— | ||
|
20
|
20
17267-PK1-010
Funnel comp.
|
17267-PK1-010 |
— | ||
|
21
|
21
93500-050-121-H ScrewPAN, 5X12 |
93500-050-121-H |
US $0.37 |
||
| replacement | |||||
|
21
|
21
93500-050-120-H ScrewPAN, 5X12 |
93500-050-120-H |
from US $0.37 |
||
|
22
|
22
93500-050-141-H ScrewPAN, 5X14 |
93500-050-141-H |
US $0.37 |
||
|
23
|
23
93500-050-161-H ScrewPAN, 5X16 |
93500-050-161-H |
US $0.37 |
||
|
24
|
24
93500-060-251-H ScrewPAN, 6X25 |
93500-060-251-H |
US $0.52 |
||
|
25
|
25
93500-060-351-H ScrewPAN, 6X35 |
93500-060-351-H |
US $0.52 |
||
|
26
|
26
93892-050-101-8 Screw-washer5X10 |
93892-050-101-8 |
from US $0.44 |
||
|
27
|
27
93892-050-141-8 Screw-washer5X14 |
93892-050-141-8 |
US $0.44 |
||
| replacement | |||||
|
27
|
27
93892-050-140-8 Screw-washer, 5X145X14 |
93892-050-140-8 |
from US $0.44 |
||
|
28
|
28
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
