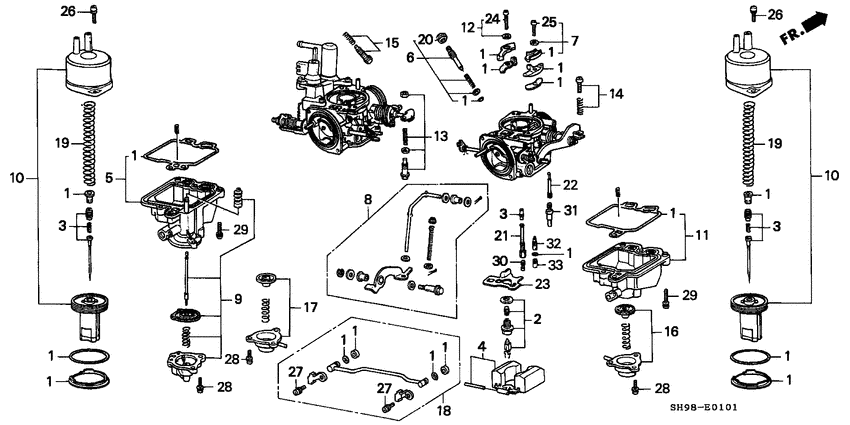

Carburetor components Diagram Honda CIVIC SHUTTLE
- Year
- 1995
- Model code
- CIVIC SHUTTLE
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 5
- grade
- 55X
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-PM2-B01
Gasket set
|
16010-PM2-B01 |
— | ||
|
2
|
2
16011-P03-005
Valve set
|
16011-P03-005 |
— | ||
|
3
|
3
16012-PM4-005
Needle Set
|
16012-PM4-005 |
— | ||
|
4
|
4
16013-PB9-005 Float set |
16013-PB9-005 |
US $48.42 |
||
|
5
|
5
16015-PR6-000
Chamber set a
|
16015-PR6-000 |
— | ||
|
6
|
6
16016-PC7-611
Screw set
|
16016-PC7-611 |
— | ||
|
7
|
7
16018-PK1-005
Plate set
|
16018-PK1-005 |
— | ||
|
8
|
8
16019-PR6-000
Rod set
|
16019-PR6-000 |
— | ||
|
9
|
9
16021-PR6-000
Diaphragm set
|
16021-PR6-000 |
— | ||
|
10
|
10
16022-PM4-005
Piston set
|
16022-PM4-005 |
— | ||
|
11
|
11
16023-PR6-000
Chamber set
|
16023-PR6-000 |
— | ||
|
12
|
12
16028-PK1-005
Screw set
|
16028-PK1-005 |
— | ||
|
13
|
13
16029-PK1-005
Screw set
|
16029-PK1-005 |
— | ||
|
14
|
14
16030-PR2-005
Screw set
|
16030-PR2-005 |
— | ||
|
15
|
15
16031-PK1-005
Screw set
|
16031-PK1-005 |
— | ||
|
16
|
16
16041-PC6-005
Economizer set a
|
16041-PC6-005 |
— | ||
|
17
|
17
16042-PC6-005
Economizer set b
|
16042-PC6-005 |
— | ||
|
18
|
18
16047-PC6-005
Joint set
|
16047-PC6-005 |
— | ||
|
19
|
19
16050-PC6-661
Spring
|
16050-PC6-661 |
— | ||
|
20
|
20
16109-PC6-005
Cap
|
16109-PC6-005 |
— | ||
|
21
|
21
16165-PM4-005
Holder
|
16165-PM4-005 |
— | ||
|
22
|
22
16166-PM4-005
Nozzle
|
16166-PM4-005 |
— | ||
|
23
|
23
16185-PR6-000
Plate
|
16185-PR6-000 |
— | ||
|
24
|
24
93500-040-141-H ScrewPAN, 4X14 |
93500-040-141-H |
US $0.37 |
||
| replacement | |||||
|
24
|
24
93500-040-140-H ScrewPAN, 4X14 |
93500-040-140-H |
from US $0.37 |
||
|
25
|
25
93500-040-161-H ScrewPAN, 4X16 |
93500-040-161-H |
US $0.37 |
||
| replacement | |||||
|
25
|
25
93500-040-160-H ScrewPAN, 4X16 |
93500-040-160-H |
from US $0.37 |
||
|
26
|
26
93500-050-161-H ScrewPAN, 5X16 |
93500-050-161-H |
US $0.37 |
||
|
27
|
27
93892-040-081-8 Screw-washer4X8 |
93892-040-081-8 |
US $0.44 |
||
| replacement | |||||
|
27
|
27
93892-040-080-8 Screw-washer4X8 |
93892-040-080-8 |
from US $0.49 |
||
|
28
|
28
93892-040-121-8 Screw-washer4X12 |
93892-040-121-8 |
US $0.44 |
||
| replacement | |||||
|
28
|
28
93892-040-120-8 Screw-washer4X12 |
93892-040-120-8 |
from US $0.49 |
||
|
29
|
29
93892-040-161-8 Screw-washer4X16 |
93892-040-161-8 |
US $0.44 |
||
| replacement | |||||
|
29
|
29
93892-040-160-8 Screw-washer4X16 |
93892-040-160-8 |
from US $0.44 |
||
|
30
|
30
99101-393-1600
Jet
|
99101-393-1600 |
— | ||
|
31
|
31
99103-PB9-0450 JetECONOMIZER, #45 |
99103-PB9-0450 |
US $6.51 |
||
|
32
|
32
99104-PC7-0400 JetSLOW, #40 |
99104-PC7-0400 |
US $6.51 |
||
|
33
|
33
99201-PN4-075-0 Jet setMAIN, #75 |
99201-PN4-075-0 |
US $6.51 |
||
