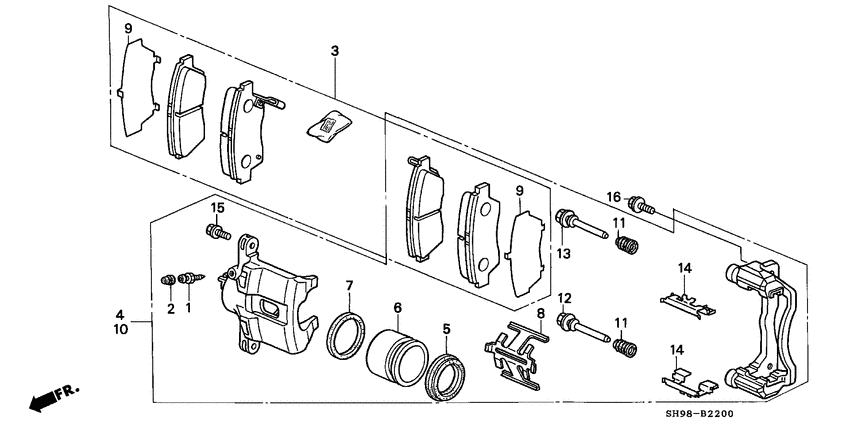

Front brake caliper Diagram Honda CIVIC SHUTTLE
- Year
- 1995
- Model code
- CIVIC SHUTTLE
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 5
- grade
- 55X
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43352-SM4-951 ScrewBLEEDER |
43352-SM4-951 |
from US $3.63 |
||
|
2
|
2
43353-SD5-003 CapBLEEDER SCREW 0S000165 - |
43353-SD5-003 |
from US $2.29 |
||
|
3
|
3
45022-SR3-910 Pad setFR. |
45022-SR3-910 |
US $126.72 |
||
|
4
|
4
45210-SR3-912
Caliper assy
|
45210-SR3-912 |
— | ||
|
5
|
5
45214-SC2-003 CoverDUST |
45214-SC2-003 |
US $10.42 |
||
|
6
|
6
45216-SC2-003 Piston51MM |
45216-SC2-003 |
US $39.68 |
||
|
7
|
7
45217-SC2-003 SealPISTON |
45217-SC2-003 |
US $12.86 |
||
|
8
|
8
45227-692-931
Spring
|
45227-692-931 |
— | ||
|
9
|
9
45228-SA5-013
Shim
|
45228-SA5-013 |
— | ||
|
10
|
10
45230-SR3-912
Caliper assy
|
45230-SR3-912 |
— | ||
|
11
|
11
45234-692-013 CoverDUST |
45234-692-013 |
US $7.81 |
||
|
12
|
12
45235-SA0-003 Pin a |
45235-SA0-003 |
US $10.50 |
||
|
13
|
13
45236-SH3-003 Pin b |
45236-SH3-003 |
US $12.60 |
||
|
14
|
14
45237-692-931 RetainerPAD |
45237-692-931 |
US $5.70 |
||
|
15
|
15
45240-SC2-003 BoltFLANGE, 8X22 |
45240-SC2-003 |
from US $3.03 |
||
|
16
|
16
90107-SM4-000 BoltCALIPER MOUNTING (12X21) |
90107-SM4-000 |
US $2.77 |
