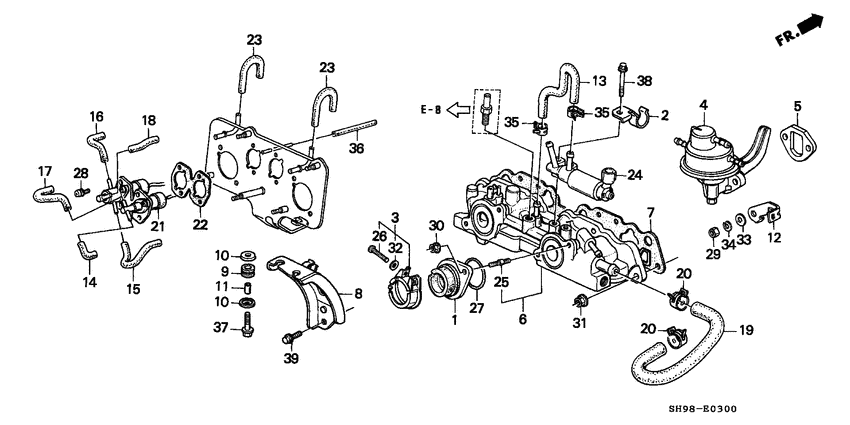

Intake manifold Diagram Honda CIVIC SHUTTLE
- Year
- 1995
- Model code
- CIVIC SHUTTLE
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 5
- grade
- 55X
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16211-PR6-000
Insulator comp.
|
16211-PR6-000 |
— | ||
|
2
|
2
16236-PM4-010
Clamp b
|
16236-PM4-010 |
— | ||
|
3
|
3
16240-PR6-000
Band
|
16240-PR6-000 |
— | ||
|
4
|
4
16700-PM3-000
Pump assy.
|
16700-PM3-000 |
— | ||
|
5
|
5
16701-PM3-S00
Insulator comp.
|
16701-PM3-S00 |
— | ||
|
6
|
6
17000-PM4-010
Manifold assy
|
17000-PM4-010 |
— | ||
|
7
|
7
17105-P00-T02 GasketINTAKE MANIFOLD (NIPPON LEAKLESS) |
17105-P00-T02 |
US $15.49 |
||
|
8
|
8
17132-PM4-000
Stay comp
|
17132-PM4-000 |
— | ||
|
9
|
9
17207-PM4-000
Mounting
|
17207-PM4-000 |
— | ||
|
10
|
10
17208-PC6-000
Washer
|
17208-PC6-000 |
— | ||
|
11
|
11
17209-PC6-000
Collar
|
17209-PC6-000 |
— | ||
|
12
|
12
17365-P01-000
Stay
|
17365-P01-000 |
— | ||
|
13
|
13
17511-PM4-010
Tube
|
17511-PM4-010 |
— | ||
|
14
|
14
17731-PM4-000
Tube
|
17731-PM4-000 |
— | ||
|
15
|
15
17732-PM4-000
Tube
|
17732-PM4-000 |
— | ||
|
16
|
16
17733-PM4-000
Tube
|
17733-PM4-000 |
— | ||
|
17
|
17
17734-PM4-000
Tube
|
17734-PM4-000 |
— | ||
|
18
|
18
17736-PM4-000
Tube
|
17736-PM4-000 |
— | ||
|
19
|
19
19508-PM4-000
Hose
|
19508-PM4-000 |
— | ||
|
20
|
20
19513-PE0-003 ClampWATER HOSE (21.7MM) (CHUO SPRING) |
19513-PE0-003 |
US $4.23 |
||
|
21
|
21
36140-PM4-004
Valve assy.
|
36140-PM4-004 |
— | ||
|
22
|
22
36141-PM4-000
Packing
|
36141-PM4-000 |
— | ||
|
23
|
23
36157-PM4-000
Tube
|
36157-PM4-000 |
— | ||
|
24
|
24
36450-PJ7-003
Valve assy.
|
36450-PJ7-003 |
— | ||
|
25
|
25
90063-PC6-000
Bolt
|
90063-PC6-000 |
— | ||
|
26
|
26
90100-PR6-000 ScrewPAN, 6X32 |
90100-PR6-000 |
US $1.33 |
||
|
27
|
27
91301-PB9-000
O-ring
|
91301-PB9-000 |
— | ||
|
28
|
28
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
29
|
29
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
US $0.44 |
||
| replacement | |||||
|
29
|
29
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.44 |
||
|
30
|
30
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
31
|
31
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
32
|
32
94101-06400 WasherPLAIN, 6MM |
94101-06400 |
from US $0.38 |
||
|
33
|
33
94102-08800 WasherPLAIN, 8MM |
94102-08800 |
from US $0.37 |
||
|
34
|
34
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
35
|
35
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
||
|
36
|
36
95005-450-701-2 Tube4.5X70 (95005-45001-10M) |
95005-450-701-2 |
US $1.55 |
||
|
37
|
37
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
38
|
38
95701-060-400-8 BoltFLANGE, 6X40 |
95701-060-400-8 |
from US $0.59 |
||
|
39
|
39
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.52 |
||
