Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 42200-SE0-004 Bearing assy	42200-SE0-004	—
1	1 42200-SE0-008 Bearing assy	42200-SE0-008	—
2	2 42324-SB2-020 Washer	42324-SB2-020	—
3	3 42326-SB2-000 Cap	42326-SB2-000	—
	replacement
3	3 42326-SFA-000 Cap HUB UNIT	42326-SFA-000	from US $6.62
4	4 42610-SH9-000 Drum	42610-SH9-000	—
5	5 43110-SK7-013 Plate comp	43110-SK7-013	—
6	6 43120-SK7-013 Plate comp	43120-SK7-013	—
7	7 43153-SK7-013 Shoe comp	43153-SK7-013	—
8	8 43171-S04-003 Spring a 0S000165 -	43171-S04-003	—
8	8 43171-SA5-003 Spring a 00000000 - 0S000164	43171-SA5-003	—
9	9 43172-SA5-003 Spring b 00000000 - 0S000164	43172-SA5-003	—
9	9 43172-S04-003 Spring b BRAKE SHOE RETURN 0S000165 -	43172-S04-003	US $4.40
10	10 43300-SH5-013 Cylinder assy.	43300-SH5-013	—
11	11 43315-671-631 Cover	43315-671-631	—
	replacement
11	11 43315-SN4-003 Cover DUST	43315-SN4-003	from US $2.89
12	12 43321-S04-003 Piston WHEEL CYLINDER 0S000165 -	43321-S04-003	US $10.64
12	12 43321-SM4-A01 Piston WHEEL CYLINDER 00000000 - 0S000164	43321-SM4-A01	US $13.58
13	13 43322-663-003 Cup PISTON	43322-663-003	from US $3.71
14	14 43323-663-003 Spring	43323-663-003	—
15	15 43345-S04-003 Plug ADJUSTER 0S000165 -	43345-S04-003	US $2.37
15	15 43345-SA5-013 Plug ADJUSTER 00000000 - 0S000164	43345-SA5-013	US $2.80
16	16 43352-568-003 SCREW, BLEEDER (NISSIN)	43352-568-003	from US $4.80
17	17 43353-548-003 Cap BLEEDER SCREW 00000000 - 0S000164	43353-548-003	from US $2.25
18	18 43361-SH5-003 Lever R. PARKING BRAKE	43361-SH5-003	US $11.48
19	19 43362-SA5-003 Rod a R. CONNECTING	43362-SA5-003	US $14
20	20 43363-SA5-003 Bolt	43363-SA5-003	—
21	21 43364-SA5-003 Rod b	43364-SA5-003	—
	replacement
21	21 43364-S5A-003 Rod b CONNECTING	43364-S5A-003	US $6.35
22	22 43365-SA5-003 Pin PARKING BRAKE LEVER	43365-SA5-003	US $4.65
23	23 43366-SH5-003 Lever comp R. ADJUSTER	43366-SH5-003	from US $5.89
24	24 43367-SH5-003 Spring	43367-SH5-003	—
25	25 43371-SH5-003 Lever L. PARKING BRAKE	43371-SH5-003	US $11.48
26	26 43372-SA5-003 Rod a L. CONNECTING	43372-SA5-003	US $11.90
27	27 43373-SA5-003 Bolt L. ADJUSTER	43373-SA5-003	US $13.61
28	28 43375-SA0-003 U-clip	43375-SA0-003	—
29	29 43376-SH5-003 Lever comp L. ADJUSTER	43376-SH5-003	US $7
30	30 43377-SH5-003 Spring	43377-SH5-003	—
31	31 43379-SA5-003 Washer WAVE	43379-SA5-003	US $1.08
32	32 45172-S04-003 Spring SHOE CLAMP 0S000165 -	45172-S04-003	from US $2.23
32	32 45172-SA0-003 Spring 00000000 - 0S000164	45172-SA0-003	—
	replacement
32	32 45172-S04-003 Spring SHOE CLAMP 00000000 - 0S000164	45172-S04-003	from US $2.23
33	33 45175-SA0-013 Pin TENSIONER	45175-SA0-013	from US $2.37
34	34 90001-SH3-000 Bolt FLANGE, 10X13	90001-SH3-000	US $2.31
35	35 90113-SA0-025 Bolt WHEEL (NAGOYA RASHI)	90113-SA0-025	US $4.28
	replacement
35	35 90113-SM1-005 Bolt WHEEL (ROCKNEL FASTENER)	90113-SM1-005	from US $3.70
35	35 90113-SA0-023 Bolt	90113-SA0-023	—
	replacement
35	35 90113-SM1-005 Bolt WHEEL (ROCKNEL FASTENER)	90113-SM1-005	from US $3.70
36	36 90305-692-010 Nut	90305-692-010	US $8.14
37	37 95701-060-120-8 Bolt FLANGE, 6X12 0S000165 -	95701-060-120-8	from US $0.52
37	37 93402-060-120-8 Bolt-washer 6X12 00000000 - 0S000164	93402-060-120-8	from US $0.52

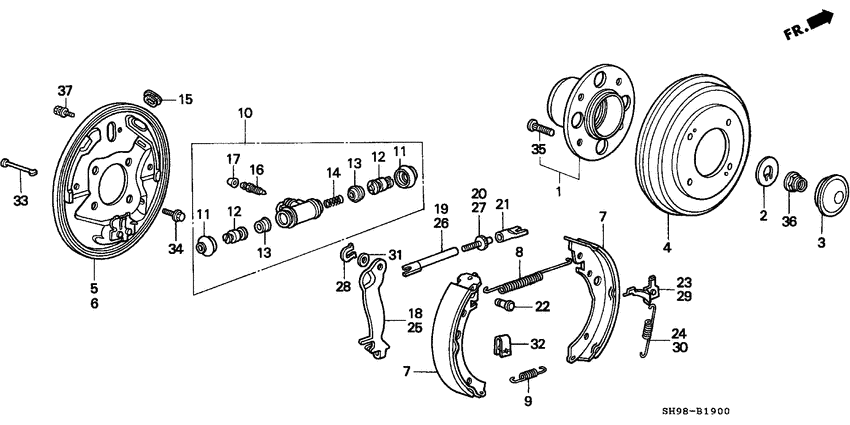

Rear brake Diagram Honda CIVIC SHUTTLE General 7072261-550236

Rear brake Diagram Honda CIVIC SHUTTLE General 7072261-550236
