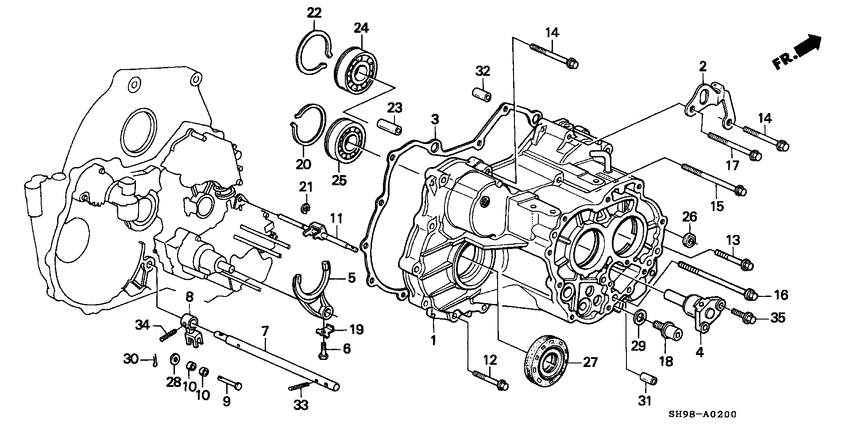

Transmission housing Diagram Honda CIVIC SHUTTLE
- Year
- 1995
- Model code
- CIVIC SHUTTLE
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 5
- grade
- 55X
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21210-PL4-060
Case comp.
|
21210-PL4-060 |
— | ||
|
2
|
2
21232-PL4-010 HangerTRANSMISSION |
21232-PL4-010 |
US $8.26 |
||
|
3
|
3
21811-PL4-S01 GasketTORQUE CONVERTER CASE |
21811-PL4-S01 |
US $29.06 |
||
|
4
|
4
23540-P48-J00 Holder compREVERSE IDLE |
23540-P48-J00 |
US $13.44 |
||
|
5
|
5
24111-PP6-010 ForkREVERSE SHIFT |
24111-PP6-010 |
US $30.59 |
||
|
6
|
6
24282-634-000 BoltSHAFT FORK SETTING |
24282-634-000 |
from US $1.40 |
||
|
7
|
7
24411-PL4-300
Shaft
|
24411-PL4-300 |
— | ||
|
8
|
8
24421-PP6-000 LeverMANUAL VALVE |
24421-PP6-000 |
US $14.72 |
||
|
9
|
9
24423-PA9-000 PinMANUAL VALVE |
24423-PA9-000 |
US $2.10 |
||
|
10
|
10
24425-639-000 RollerMANUAL VALVE |
24425-639-000 |
US $2.10 |
||
|
11
|
11
27490-PF4-701
Shaft comp.
|
27490-PF4-701 |
— | ||
|
12
|
12
90015-PF0-000 BoltFLANGE, 8X53 |
90015-PF0-000 |
US $2.59 |
||
|
13
|
13
90016-PF0-000 BoltFLANGE, 8X70 |
90016-PF0-000 |
US $2.94 |
||
|
14
|
14
90016-PL4-000 BoltFLANGE, 8X90 |
90016-PL4-000 |
US $2.94 |
||
|
15
|
15
90017-PL4-000 BoltFLANGE, 8X125 |
90017-PL4-000 |
US $3.15 |
||
|
16
|
16
90017-PP6-000 BoltFLANGE, 8X176 |
90017-PP6-000 |
from US $4.06 |
||
|
17
|
17
90018-PL4-000 BoltFLANGE, 8X115 |
90018-PL4-000 |
US $3.08 |
||
|
18
|
18
90081-PB6-000 BoltPLUG, 14MM |
90081-PB6-000 |
from US $7.98 |
||
|
19
|
19
90433-639-000 WasherLOCK, 6MM |
90433-639-000 |
US $7.38 |
||
|
20
|
20
90603-PH0-000 RingSNAP, 64MM |
90603-PH0-000 |
US $3.50 |
||
|
21
|
21
90607-081-000 Circlip7MM |
90607-081-000 |
from US $2.37 |
||
|
22
|
22
90609-PH0-000 RingSNAP, 70MM |
90609-PH0-000 |
US $3.08 |
||
|
23
|
23
90705-PA9-000 Dowel pin14X25 |
90705-PA9-000 |
US $2.80 |
||
|
24
|
24
91002-PL4-003 BearingRADIAL BALL, 26X70X17 (NTN) |
91002-PL4-003 |
US $14.72 |
||
|
25
|
25
91004-PL4-003 BearingRADIAL BALL, 26X64X16 |
91004-PL4-003 |
US $14 |
||
|
26
|
26
91201-PA9-004 Oil seal9X18X7 (ARAI) |
91201-PA9-004 |
from US $3.70 |
||
|
27
|
27
91206-689-005 Oil seal35X76X9 (NOK) |
91206-689-005 |
from US $21.06 |
||
|
28
|
28
94101-05800 WasherPLAIN, 5MM |
94101-05800 |
from US $0.37 |
||
|
29
|
29
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $1.14 |
||
|
30
|
30
94201-16120 PinSPLIT, 1.6X12 |
94201-16120 |
from US $0.37 |
||
|
31
|
31
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
32
|
32
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
33
|
33
94305-40162 PinSPRING, 4X16 |
94305-40162 |
from US $0.81 |
||
|
34
|
34
94305-50182 PinSPRING, 5X18 |
94305-50182 |
from US $0.81 |
||
|
35
|
35
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
