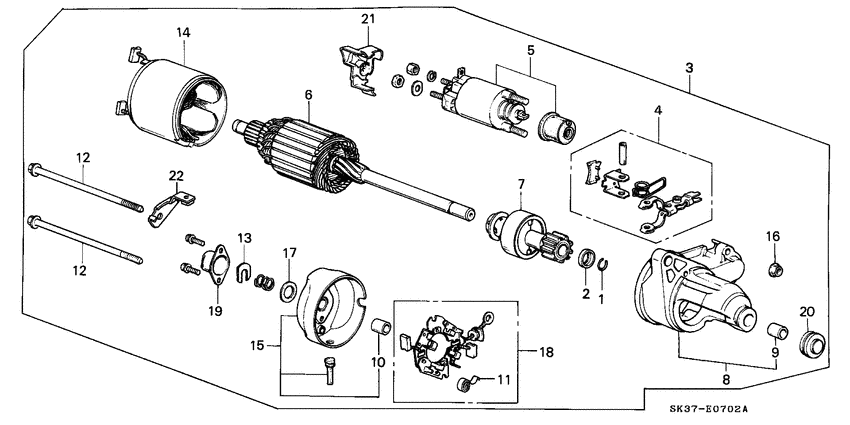

Starter motor (DENSO; 2) Diagram Honda CONCERTO
- Year
- 1990
- Model code
- CONCERTO
- Sales region
- General
- Engine
- D14A
- transmission
- 5MT
- Number of doors
- 5
- grade
- GL
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30201-590-004 RingSNAP |
30201-590-004 |
US $1.82 |
||
|
2
|
2
30202-590-004 CollarCLUTCH STOP |
30202-590-004 |
US $4.76 |
||
|
3
|
3
31200-PM5-L01
Motor assy.
00000000 - E006281 |
31200-PM5-L01 |
— | ||
|
3
|
3
31200-PM5-L03
Motor assy.
E006282 - |
31200-PM5-L03 |
— | ||
|
4
|
4
31203-PA5-911
Lever
|
31203-PA5-911 |
— | ||
|
5
|
5
31204-PC1-024
Switch assy
|
31204-PC1-024 |
— | ||
|
6
|
6
31206-PA0-016
Armature comp.
|
31206-PA0-016 |
— | ||
|
7
|
7
31207-PA0-006
Pinion
00000000 - E006281 |
31207-PA0-006 |
— | ||
|
7
|
7
31207-PM5-L01
Clutch comp.
E006282 - |
31207-PM5-L01 |
— | ||
|
8
|
8
31208-PE0-003
Housing
|
31208-PE0-003 |
— | ||
|
9
|
9
31209-590-004
BEARING A
|
31209-590-004 |
— | ||
|
10
|
10
31210-PA0-006
Bearing b
|
31210-PA0-006 |
— | ||
|
11
|
11
31212-PA0-006
Spring
|
31212-PA0-006 |
— | ||
|
12
|
12
31214-PA0-006 BoltTHROUGH |
31214-PA0-006 |
US $5.04 |
||
|
13
|
13
31215-657-006
Plate
|
31215-657-006 |
— | ||
|
14
|
14
31218-PE0-013
Yoke comp.
|
31218-PE0-013 |
— | ||
|
15
|
15
31219-PC1-004
Frame comp
|
31219-PC1-004 |
— | ||
|
16
|
16
31223-PA0-006 NutHEX. |
31223-PA0-006 |
from US $1.19 |
||
|
17
|
17
31224-657-006
Rubber a
|
31224-657-006 |
— | ||
|
18
|
18
31231-PA0-006
Holder comp
|
31231-PA0-006 |
— | ||
|
19
|
19
31232-PA0-006
Cap
|
31232-PA0-006 |
— | ||
|
20
|
20
31233-PB1-931
Cover
|
31233-PB1-931 |
— | ||
|
21
|
21
31239-PA5-911
Cover
|
31239-PA5-911 |
— | ||
|
22
|
22
31291-PM5-L01
Stay
|
31291-PM5-L01 |
— |
