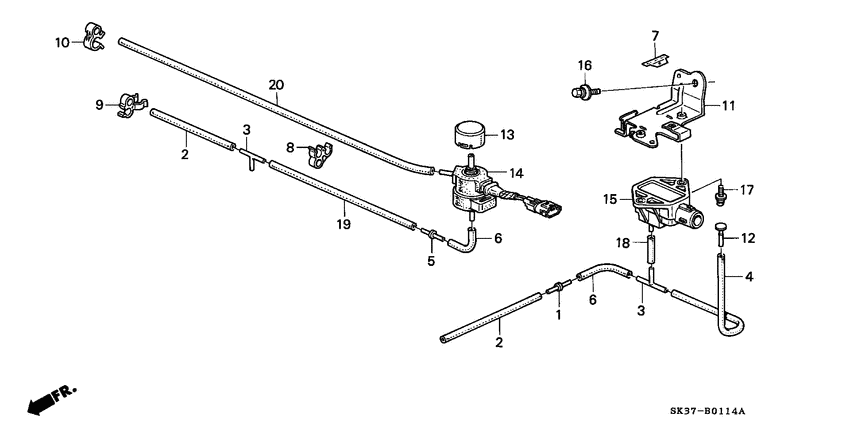

Control device (PGM-FI; 1.5L) Diagram Honda CONCERTO
- Year
- 1993
- Model code
- CONCERTO
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 5
- grade
- DX
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17414-PC6-660 JointTWO WAY (3.5) |
17414-PC6-660 |
from US $2.45 |
||
|
2
|
2
17419-PM5-A00
Tube
|
17419-PM5-A00 |
— | ||
|
3
|
3
36010-PA6-004 JointTHREE WAY |
36010-PA6-004 |
from US $6.51 |
||
|
4
|
4
36011-PP4-E01
Tube
|
36011-PP4-E01 |
— | ||
|
5
|
5
36012-PE0-901 JointTWO WAY |
36012-PE0-901 |
US $4.48 |
||
|
6
|
6
36013-PE0-004
Holder
|
36013-PE0-004 |
— | ||
|
7
|
7
36022-PW1-G01
Label
|
36022-PW1-G01 |
— | ||
|
8
|
8
36024-PM2-G51 ClampTUBE, 7.5X3L |
36024-PM2-G51 |
US $6.16 |
||
|
9
|
9
36025-PM5-A01
Clamp
|
36025-PM5-A01 |
— | ||
|
10
|
10
36025-PW1-G01
Clamp
|
36025-PW1-G01 |
— | ||
|
11
|
11
36033-PW1-G01
Stay
|
36033-PW1-G01 |
— | ||
|
12
|
12
36034-PE7-661
Plug
|
36034-PE7-661 |
— | ||
|
13
|
13
36138-PM1-G01
Filter assy
|
36138-PM1-G01 |
— | ||
|
14
|
14
36166-PW1-G01
Valve assy.
|
36166-PW1-G01 |
— | ||
|
15
|
15
37830-PK2-003
Sensor assy
|
37830-PK2-003 |
— | ||
|
16
|
16
93405-060-120-8 Bolt-washer6X12 |
93405-060-120-8 |
from US $0.59 |
||
|
17
|
17
93893-050-120-7 Screw-washer5X12 |
93893-050-120-7 |
from US $0.52 |
||
|
18
|
18
95005-350-301-0 Tube3.5X30(95005-35001-10M) |
95005-350-301-0 |
US $0.89 |
||
|
19
|
19
95005-351-701-C Tube3.5X170 (95005-35001-10M) |
95005-351-701-C |
US $2.37 |
||
|
20
|
20
95005-355-451-7 Tube3.5X545 (95005-35001-10M) |
95005-355-451-7 |
US $5.33 |
