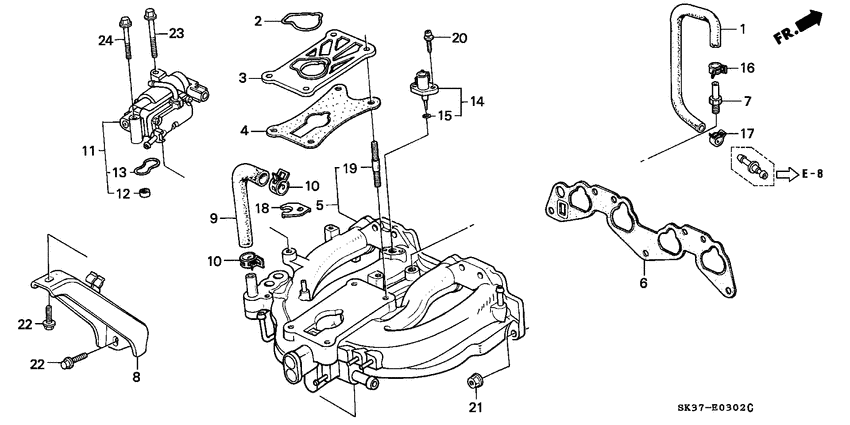

Intake manifold (PGM-FI; 1.5L) Diagram Honda CONCERTO
- Year
- 1991
- Model code
- CONCERTO
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.5I
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11856-PM5-000
Tube
|
11856-PM5-000 |
— | ||
|
2
|
2
16105-PM5-A00
O-ring
|
16105-PM5-A00 |
— | ||
|
3
|
3
16210-PM5-G00
Insulator
|
16210-PM5-G00 |
— | ||
|
4
|
4
16212-PM5-S00
Packing
|
16212-PM5-S00 |
— | ||
|
5
|
5
17000-PM5-A02
Manifold assy
|
17000-PM5-A02 |
— | ||
|
6
|
6
17105-P00-T02 GasketINTAKE MANIFOLD (NIPPON LEAKLESS) E009559 - |
17105-P00-T02 |
US $15.49 |
||
|
6
|
6
17105-PM5-S02 GasketINTAKE MANIFOLD (NIPPON LEAKLESS) |
17105-PM5-S02 |
US $17.28 |
||
|
6
|
6
17105-PM5-S01
Gasket
00000000 - E009558 |
17105-PM5-S01 |
— | ||
|
7
|
7
17130-PM3-G01
Valve assy.
|
17130-PM3-G01 |
— | ||
|
8
|
8
17132-PM5-A00
Stay comp
|
17132-PM5-A00 |
— | ||
|
9
|
9
17510-PM5-A00
Tube
|
17510-PM5-A00 |
— | ||
|
10
|
10
19512-PC6-003 ClipHOSE, 18.7MM |
19512-PC6-003 |
from US $3.18 |
||
|
11
|
11
36450-PW1-G01
Valve assy.
|
36450-PW1-G01 |
— | ||
|
12
|
12
36454-PS4-003 Filter compELECTRONIC AIR CONTROL VALVE (TOYO ROKI) |
36454-PS4-003 |
from US $3.33 |
||
|
13
|
13
36455-PT3-A01 Packing, ELECTRONIC AIR CONTROL VALVE (DENSO) |
36455-PT3-A01 |
from US $3.42 |
||
|
14
|
14
37880-PK2-005
Sensor assy
|
37880-PK2-005 |
— | ||
| replacement | |||||
|
14
|
14
37880-P05-A00 Sensor assyAIR TEMP |
37880-P05-A00 |
from US $27.74 |
||
|
15
|
15
91303-PK2-005 O-ring (7.5X1.5)7.5X1.5 |
91303-PK2-005 |
from US $1.63 |
||
|
16
|
16
91405-PM5-004 ClampTUBE (D17) |
91405-PM5-004 |
from US $4.28 |
||
|
17
|
17
91405-679-004 ClampTUBE (D17) |
91405-679-004 |
from US $3.92 |
||
| replacement | |||||
|
17
|
17
91405-PM5-004 ClampTUBE (D17) |
91405-PM5-004 |
from US $4.28 |
||
|
18
|
18
91599-SK3-G11
Clamp
|
91599-SK3-G11 |
— | ||
|
19
|
19
92900-08032-0B BoltSTUD, 8X32 |
92900-08032-0B |
from US $0.81 |
||
|
20
|
20
93893-050-160-8 Screw-washer5X16 |
93893-050-160-8 |
from US $0.55 |
||
|
21
|
21
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
22
|
22
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
|
23
|
23
95701-080-500-8 BoltFLANGE, 8X50 |
95701-080-500-8 |
from US $0.81 |
||
|
24
|
24
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
||
