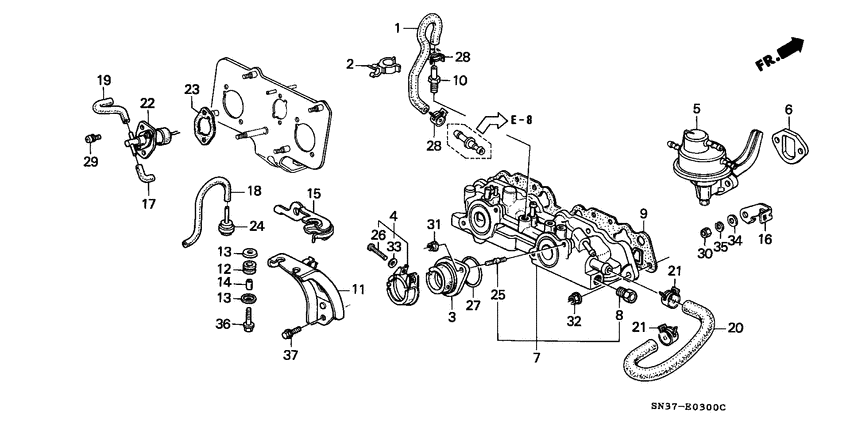

Intake manifold (CARBURETOR) Diagram Honda CONCERTO
- Year
- 1990
- Model code
- CONCERTO
- Sales region
- General
- Engine
- D16Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11856-PM4-000
Tube
|
11856-PM4-000 |
— | ||
|
2
|
2
11857-PM4-003
Clamp
|
11857-PM4-003 |
— | ||
|
3
|
3
16211-PM4-000
Insulator comp.
00000000 - E008771 |
16211-PM4-000 |
— | ||
|
3
|
3
16211-PR6-000
Insulator comp.
E008772 - |
16211-PR6-000 |
— | ||
|
4
|
4
16240-PC6-020 BandCARBURETOR INSULATOR 00000000 - E008771 |
16240-PC6-020 |
US $6.44 |
||
|
4
|
4
16240-PR6-000
Band
E008772 - |
16240-PR6-000 |
— | ||
|
5
|
5
16700-PM3-003 Pump assy.FUEL |
16700-PM3-003 |
US $151.04 |
||
|
6
|
6
16701-PM3-010
Insulator comp.
|
16701-PM3-010 |
— | ||
|
7
|
7
17000-PR2-T50
Manifold assy
|
17000-PR2-T50 |
— | ||
|
9
|
9
17105-PM2-004
Gasket
|
17105-PM2-004 |
— | ||
| replacement | |||||
|
9
|
9
17105-P00-T03
Gasket
|
17105-P00-T03 |
— | ||
|
9
|
9
17105-PM2-003
Gasket
|
17105-PM2-003 |
— | ||
|
10
|
10
17130-PM3-G01
Valve assy.
|
17130-PM3-G01 |
— | ||
|
11
|
11
17132-PR2-000
Stay comp
|
17132-PR2-000 |
— | ||
|
12
|
12
17207-PM4-000
Mounting
|
17207-PM4-000 |
— | ||
|
13
|
13
17208-PC6-000
Washer
|
17208-PC6-000 |
— | ||
|
14
|
14
17209-PC6-000
Collar
|
17209-PC6-000 |
— | ||
|
15
|
15
17213-PR2-T00
Clamp
|
17213-PR2-T00 |
— | ||
|
16
|
16
17365-PM3-000
Stay
|
17365-PM3-000 |
— | ||
|
17
|
17
17731-PM4-000
Tube
|
17731-PM4-000 |
— | ||
|
18
|
18
17731-PR2-E00
Tube
|
17731-PR2-E00 |
— | ||
|
19
|
19
17734-PM4-000
Tube
|
17734-PM4-000 |
— | ||
|
20
|
20
19508-PM4-000
Hose
|
19508-PM4-000 |
— | ||
|
21
|
21
19513-PE0-003 ClampWATER HOSE (21.7MM) (CHUO SPRING) |
19513-PE0-003 |
from US $2.75 |
||
|
22
|
22
36140-PR2-T01
Valve assy.
|
36140-PR2-T01 |
— | ||
|
23
|
23
36141-PR2-T00
Packing
|
36141-PR2-T00 |
— | ||
|
24
|
24
36210-PR2-T01
Valve comp.
|
36210-PR2-T01 |
— | ||
|
25
|
25
90063-PC6-000
Bolt
|
90063-PC6-000 |
— | ||
|
26
|
26
90100-PC6-000
Screw
00000000 - E008771 |
90100-PC6-000 |
— | ||
|
26
|
26
90100-PR6-000 ScrewPAN, 6X32 E008772 - |
90100-PR6-000 |
US $1.33 |
||
|
27
|
27
91301-PB9-000
O-ring
|
91301-PB9-000 |
— | ||
|
28
|
28
91405-679-004 ClampTUBE (D17) |
91405-679-004 |
from US $3.92 |
||
| replacement | |||||
|
28
|
28
91405-PM5-004 ClampTUBE (D17) |
91405-PM5-004 |
from US $4.28 |
||
|
29
|
29
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
30
|
30
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
30
|
30
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
31
|
31
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
32
|
32
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
33
|
33
94101-06400 WasherPLAIN, 6MM |
94101-06400 |
from US $0.38 |
||
|
34
|
34
94102-08800 WasherPLAIN, 8MM |
94102-08800 |
from US $0.37 |
||
|
35
|
35
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
36
|
36
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
37
|
37
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
