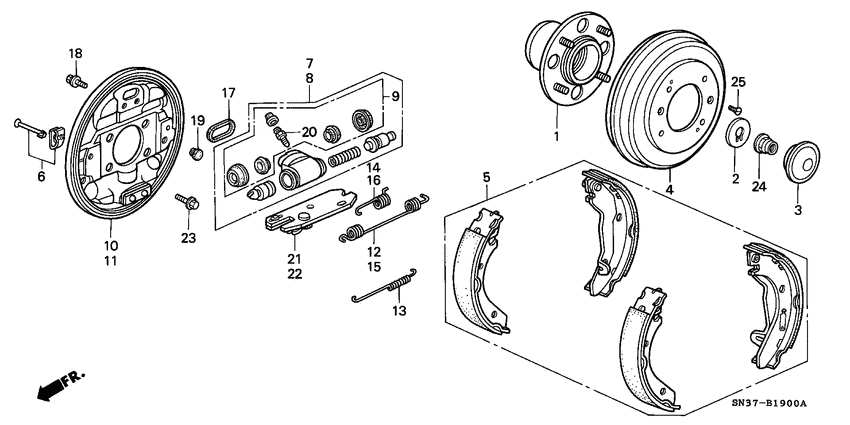

Rear brake (DRUM) Diagram Honda CONCERTO
- Year
- 1990
- Model code
- CONCERTO
- Sales region
- General
- Engine
- D16Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX
- area code
- KF
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42200-SK3-E01
Bearing assy
|
42200-SK3-E01 |
— | ||
|
2
|
2
42324-SK3-E00
Washer
|
42324-SK3-E00 |
— | ||
|
3
|
3
42326-SK3-E00
Cap
|
42326-SK3-E00 |
— | ||
|
4
|
4
42610-SK3-E10
Drum
|
42610-SK3-E10 |
— | ||
|
5
|
5
43015-SP8-000
Shoe kit
|
43015-SP8-000 |
— | ||
|
6
|
6
43024-SK3-E10
Shoe kit
|
43024-SK3-E10 |
— | ||
|
7
|
7
43030-SP8-000
Cylinder assy.
|
43030-SP8-000 |
— | ||
|
8
|
8
43031-SP8-000
Cylinder assy.
|
43031-SP8-000 |
— | ||
|
9
|
9
43035-SP8-000
Repair kit
|
43035-SP8-000 |
— | ||
|
10
|
10
43110-SK3-E10
Plate comp
|
43110-SK3-E10 |
— | ||
|
11
|
11
43120-SK3-E10
Plate comp
|
43120-SK3-E10 |
— | ||
|
12
|
12
43171-SK3-E10
Spring
|
43171-SK3-E10 |
— | ||
|
13
|
13
43172-SK3-E10
Spring
|
43172-SK3-E10 |
— | ||
|
14
|
14
43175-SK3-E10
Spring
|
43175-SK3-E10 |
— | ||
|
15
|
15
43181-SK3-E10
Spring
|
43181-SK3-E10 |
— | ||
|
16
|
16
43185-SK3-E10
Spring
|
43185-SK3-E10 |
— | ||
|
17
|
17
43302-SK3-E10
Seal
|
43302-SK3-E10 |
— | ||
|
18
|
18
43305-SK3-E10
Bolt
|
43305-SK3-E10 |
— | ||
|
19
|
19
43345-SK3-E10
Plug
|
43345-SK3-E10 |
— | ||
|
20
|
20
43352-SK3-E00
Screw
|
43352-SK3-E00 |
— | ||
|
21
|
21
43362-SK3-E10
Strut assy.
|
43362-SK3-E10 |
— | ||
|
22
|
22
43372-SK3-E10
Strut assy.
|
43372-SK3-E10 |
— | ||
|
23
|
23
90001-SH3-000 BoltFLANGE, 10X13 |
90001-SH3-000 |
US $2.31 |
||
|
24
|
24
90305-692-010 Nut |
90305-692-010 |
US $6.84 |
||
|
25
|
25
99SF1-06121
Screw
|
99SF1-06121 |
— |
