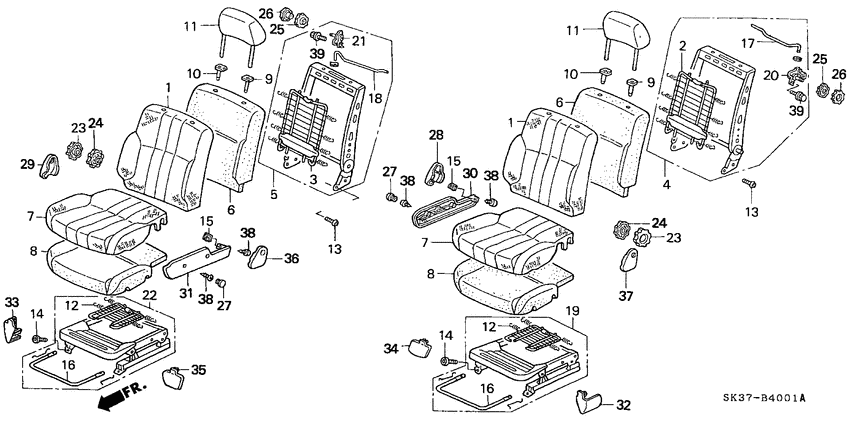

Front seat ('93) Diagram Honda CONCERTO
- Year
- 1993
- Model code
- CONCERTO
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.6I-16
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81121-SK4-E33ZD
Cover
|
81121-SK4-E33ZD |
— | ||
|
1
|
1
81121-SK4-E33ZC
Cover
|
81121-SK4-E33ZC |
— | ||
|
2
|
2
81124-SK4-E22
Suspension assy
|
81124-SK4-E22 |
— | ||
|
3
|
3
81124-SK4-E02
Suspension assy
|
81124-SK4-E02 |
— | ||
|
4
|
4
81127-SK4-E25
Frame assy
|
81127-SK4-E25 |
— | ||
|
5
|
5
81127-SK4-G05
Frame assy
|
81127-SK4-G05 |
— | ||
|
6
|
6
81129-SK4-E00
Overlay
|
81129-SK4-E00 |
— | ||
|
7
|
7
81131-SK4-E23ZC
Cover
|
81131-SK4-E23ZC |
— | ||
|
7
|
7
81131-SK4-E23ZD
Cover
|
81131-SK4-E23ZD |
— | ||
|
8
|
8
81139-SK4-E01
Overlay
|
81139-SK4-E01 |
— | ||
|
9
|
9
81143-SG9-G02ZG
Guide comp
|
81143-SG9-G02ZG |
— | ||
|
9
|
9
81143-SG9-G02ZF
Guide comp
|
81143-SG9-G02ZF |
— | ||
|
10
|
10
81144-SG9-G02ZG
Guide comp
|
81144-SG9-G02ZG |
— | ||
|
10
|
10
81144-SG9-G02ZF
Guide comp
|
81144-SG9-G02ZF |
— | ||
|
11
|
11
81145-SK4-E33ZC
Headrest assy
|
81145-SK4-E33ZC |
— | ||
|
11
|
11
81145-SK4-E33ZD
Headrest assy
|
81145-SK4-E33ZD |
— | ||
|
12
|
12
81150-SK4-E01
Suspension assy
|
81150-SK4-E01 |
— | ||
|
13
|
13
81154-SK4-E01
Bolt
|
81154-SK4-E01 |
— | ||
|
14
|
14
81155-SK4-E00
Bolt
|
81155-SK4-E00 |
— | ||
|
15
|
15
81156-SK4-E00
Grommet
|
81156-SK4-E00 |
— | ||
|
16
|
16
81165-SK4-E00
Bar
|
81165-SK4-E00 |
— | ||
|
17
|
17
81167-SK4-E00
Bar
|
81167-SK4-E00 |
— | ||
|
19
|
19
81171-SK4-E04
Frame assy
|
81171-SK4-E04 |
— | ||
|
20
|
20
81173-SK4-E00
Adjuster
|
81173-SK4-E00 |
— | ||
|
22
|
22
81176-SK4-E04
Frame assy
|
81176-SK4-E04 |
— | ||
|
23
|
23
81231-SK4-E00ZE
Handle
|
81231-SK4-E00ZE |
— | ||
|
23
|
23
81231-SK4-E00ZF
Handle
|
81231-SK4-E00ZF |
— | ||
|
24
|
24
81231-SK4-G00ZC
Handle
|
81231-SK4-G00ZC |
— | ||
|
24
|
24
81231-SK4-G00ZD
Handle
|
81231-SK4-G00ZD |
— | ||
|
25
|
25
81234-SK4-E00ZD
Knob
|
81234-SK4-E00ZD |
— | ||
|
25
|
25
81234-SK4-E00ZC
Knob
|
81234-SK4-E00ZC |
— | ||
|
26
|
26
81236-SK4-E00ZD
Cap
|
81236-SK4-E00ZD |
— | ||
|
26
|
26
81236-SK4-E00ZC
Cap
|
81236-SK4-E00ZC |
— | ||
|
27
|
27
81237-SK4-E00ZD
Plug
|
81237-SK4-E00ZD |
— | ||
|
27
|
27
81237-SK4-E00ZC
Plug
|
81237-SK4-E00ZC |
— | ||
|
28
|
28
81238-SK4-E50ZB
Cover
|
81238-SK4-E50ZB |
— | ||
|
28
|
28
81238-SK4-E50ZA
Cover
|
81238-SK4-E50ZA |
— | ||
|
29
|
29
81248-SK4-E50ZA
Cover
|
81248-SK4-E50ZA |
— | ||
|
29
|
29
81248-SK4-E50ZB
Cover
|
81248-SK4-E50ZB |
— | ||
|
30
|
30
81251-SK4-E02ZC
Cover
|
81251-SK4-E02ZC |
— | ||
|
30
|
30
81251-SK4-E02ZD
Cover
|
81251-SK4-E02ZD |
— | ||
|
31
|
31
81256-SK4-E02ZD
Valance
|
81256-SK4-E02ZD |
— | ||
|
31
|
31
81256-SK4-E02ZC
Valance
|
81256-SK4-E02ZC |
— | ||
|
32
|
32
81272-SK4-E02ZD
Cover
|
81272-SK4-E02ZD |
— | ||
|
32
|
32
81272-SK4-E02ZC
Cover
|
81272-SK4-E02ZC |
— | ||
|
33
|
33
81277-SK4-E02ZD
Cover
|
81277-SK4-E02ZD |
— | ||
|
33
|
33
81277-SK4-E02ZC
Cover
|
81277-SK4-E02ZC |
— | ||
|
34
|
34
81292-SK4-E02ZC
Cover
|
81292-SK4-E02ZC |
— | ||
|
34
|
34
81292-SK4-E02ZD
Cover
|
81292-SK4-E02ZD |
— | ||
|
35
|
35
81297-SK4-E02ZC
Fixing
|
81297-SK4-E02ZC |
— | ||
|
35
|
35
81297-SK4-E02ZD
Fixing
|
81297-SK4-E02ZD |
— | ||
|
36
|
36
81638-SK4-E50ZB
Cover
|
81638-SK4-E50ZB |
— | ||
|
36
|
36
81638-SK4-E50ZA
Cover
|
81638-SK4-E50ZA |
— | ||
|
37
|
37
81648-SK4-E50ZB
Cover
|
81648-SK4-E50ZB |
— | ||
|
37
|
37
81648-SK4-E50ZA
Cover
|
81648-SK4-E50ZA |
— | ||
|
38
|
38
99DA6-08051
Screw
|
99DA6-08051 |
— | ||
|
39
|
39
99FS1-06101
Bolt
|
99FS1-06101 |
— |
