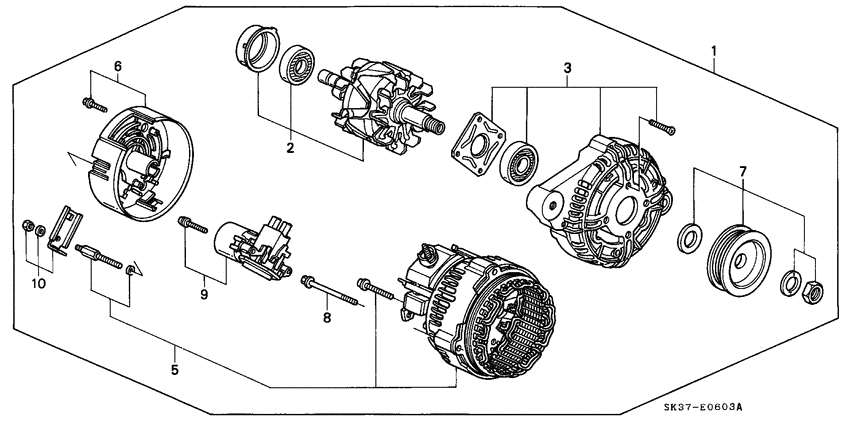

Alternator (BOSCH) Diagram Honda CONCERTO
- Year
- 1993
- Model code
- CONCERTO
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.6I-16
- area code
- KG
- left-hand drive
- +
- headlight adjuster
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-PP4-E03
Alternator assy
E311921 - |
31100-PP4-E03 |
— | ||
|
2
|
2
31101-PP4-E03
Rotor assy.
E311921 - |
31101-PP4-E03 |
— | ||
|
3
|
3
31109-PP4-E03
Frame assy
E311921 - |
31109-PP4-E03 |
— | ||
|
5
|
5
31121-PP4-E03
Frame
E311921 - |
31121-PP4-E03 |
— | ||
|
6
|
6
31135-PP4-E03
Cover
E311921 - |
31135-PP4-E03 |
— | ||
|
7
|
7
31141-PP4-E03
Pulley
E311921 - |
31141-PP4-E03 |
— | ||
|
8
|
8
31145-PP4-E03
Screw
E311921 - |
31145-PP4-E03 |
— | ||
|
9
|
9
31150-PP4-E03
Regulator assy
E311921 - |
31150-PP4-E03 |
— | ||
|
10
|
10
91415-PP4-E03
Clip
E311921 - |
91415-PP4-E03 |
— |
