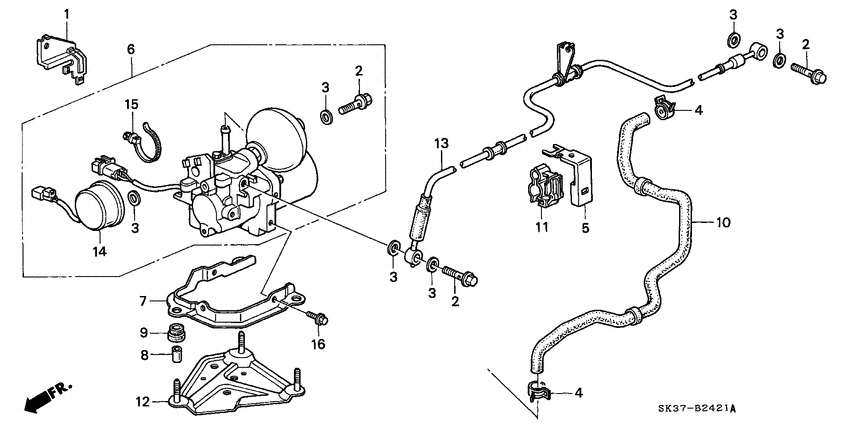

Abs pump Diagram Honda CONCERTO
- Year
- 1993
- Model code
- CONCERTO
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.6I-16
- abs
- +
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38233-SK3-E00
Bracket
|
38233-SK3-E00 |
— | ||
|
2
|
2
46462-SE0-000 BoltOIL |
46462-SE0-000 |
from US $3.33 |
||
|
3
|
3
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.18 |
||
|
4
|
4
53729-SP0-003 ClampD15.5 |
53729-SP0-003 |
US $3.57 |
||
|
5
|
5
57089-SK3-802
Stay
|
57089-SK3-802 |
— | ||
|
6
|
6
57310-SK3-023
Pump assy.
|
57310-SK3-023 |
— | ||
|
7
|
7
57355-SK3-802
Bracket
|
57355-SK3-802 |
— | ||
|
8
|
8
57357-SB0-800
Pipe
|
57357-SB0-800 |
— | ||
|
9
|
9
57358-SB0-800 Mount aPUMP BRACKET |
57358-SB0-800 |
US $2.94 |
||
|
10
|
10
57370-SK3-805
Hose comp.
|
57370-SK3-805 |
— | ||
|
11
|
11
57372-SK3-802
Clamp
|
57372-SK3-802 |
— | ||
|
12
|
12
57375-SK3-803
Bracket
|
57375-SK3-803 |
— | ||
|
13
|
13
57380-SK3-804
Hose
|
57380-SK3-804 |
— | ||
|
14
|
14
57390-SP0-013
Switch assy
|
57390-SP0-013 |
— | ||
|
15
|
15
90672-SB2-003 StrapCABLE, 105MM (BLACK) |
90672-SB2-003 |
US $8.81 |
||
|
16
|
16
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
