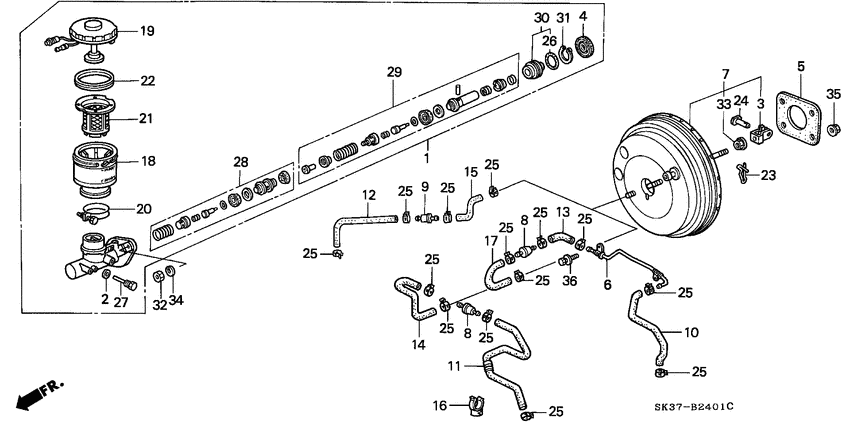

Brake master cylinder/ master power (A.L.B.) Diagram Honda CONCERTO
- Year
- 1991
- Model code
- CONCERTO
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.6I-16
- abs
- +
- area code
- KG
- left-hand drive
- +
- headlight adjuster
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46100-SK3-802
Cylinder assy.
|
46100-SK3-802 |
— | ||
| replacement | |||||
|
1
|
1
46100-SK3-803
Cylinder assy.
|
46100-SK3-803 |
— | ||
|
2
|
2
46138-568-671
Packing
|
46138-568-671 |
— | ||
|
3
|
3
46151-SB2-003 YokePUSH ROD (NISSIN) |
46151-SB2-003 |
US $18.92 |
||
|
4
|
4
46185-SE0-003 SealROD |
46185-SE0-003 |
from US $3.33 |
||
|
5
|
5
46191-SG9-000
Packing
|
46191-SG9-000 |
— | ||
|
7
|
7
46400-SK7-A01 Power assy.MASTER (7"+8") |
46400-SK7-A01 |
US $696.32 |
||
|
9
|
9
46403-SE0-003
Valve comp.
|
46403-SE0-003 |
— | ||
|
12
|
12
46404-SK3-G00
Tube a
|
46404-SK3-G00 |
— | ||
|
15
|
15
46405-SK3-G00
Tube b
|
46405-SK3-G00 |
— | ||
|
18
|
18
46660-SE3-003
Tank
|
46660-SE3-003 |
— | ||
|
19
|
19
46662-SK7-003
Cap comp.
|
46662-SK7-003 |
— | ||
|
20
|
20
46665-671-651 BandRESERVE TANK |
46665-671-651 |
US $6.30 |
||
|
21
|
21
46666-SE3-013
Filter
|
46666-SE3-013 |
— | ||
|
22
|
22
46669-SE3-003 SealRESERVE TANK |
46669-SE3-003 |
US $7.98 |
||
|
23
|
23
46911-SG9-010
Clip
|
46911-SG9-010 |
— | ||
|
24
|
24
46912-SK4-010
Pin
|
46912-SK4-010 |
— | ||
|
25
|
25
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.74 |
||
|
26
|
26
57173-SB0-801 O-ringCONNECTOR |
57173-SB0-801 |
US $2.07 |
||
|
27
|
27
57515-SG0-812
Bolt comp
|
57515-SG0-812 |
— | ||
|
28
|
28
57520-SE0-013
Piston assy.
|
57520-SE0-013 |
— | ||
| replacement | |||||
|
28
|
28
57520-SE0-023
Piston assy.
|
57520-SE0-023 |
— | ||
|
29
|
29
57540-SE0-013
Piston assy.
|
57540-SE0-013 |
— | ||
| replacement | |||||
|
29
|
29
57540-SE0-023
Piston assy.
|
57540-SE0-023 |
— | ||
|
30
|
30
57560-SE0-003
Guide assy
|
57560-SE0-003 |
— | ||
|
31
|
31
57562-SF1-003 Circlip |
57562-SF1-003 |
US $2.17 |
||
|
32
|
32
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
32
|
32
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
33
|
33
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
34
|
34
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
35
|
35
99FN1-08041
Nut
|
99FN1-08041 |
— | ||
