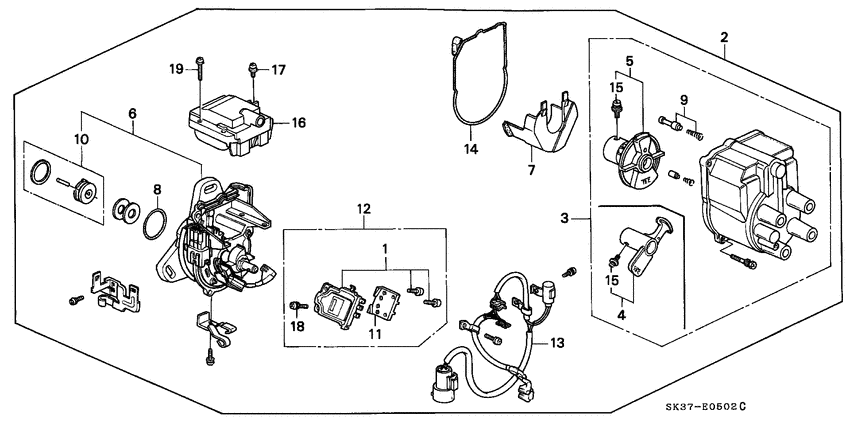

Distributor (TEC) Diagram Honda CONCERTO
- Year
- 1991
- Model code
- CONCERTO
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.6I-16
- abs
- +
- area code
- KG
- left-hand drive
- +
- headlight adjuster
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06302-PT2-A00
Igniter unit kit
|
06302-PT2-A00 |
— | ||
|
1
|
1
06302-PT2-000 Igniter unit kitNEC/ELESYS |
06302-PT2-000 |
US $86.02 |
||
|
2
|
2
30100-PM7-056
Distributor assy
|
30100-PM7-056 |
— | ||
|
3
|
3
30102-PM7-306
Cap assy.
|
30102-PM7-306 |
— | ||
|
5
|
5
30103-PM5-A05 Head assyROTOR SET |
30103-PM5-A05 |
US $9.66 |
||
|
6
|
6
30105-PM7-036
Housing comp
|
30105-PM7-036 |
— | ||
|
7
|
7
30107-PM6-A03
Cover set
|
30107-PM6-A03 |
— | ||
|
8
|
8
30110-PA1-732 O-ring26.4X3.1 (TEC) |
30110-PA1-732 |
from US $2.43 |
||
|
9
|
9
30112-PM5-A03
Suppressor comp.
|
30112-PM5-A03 |
— | ||
|
10
|
10
30113-PD2-006
Coupling set
|
30113-PD2-006 |
— | ||
|
11
|
11
30121-PM5-A02
Sink
|
30121-PM5-A02 |
— | ||
|
12
|
12
30130-PR3-006 Igniter assy |
30130-PR3-006 |
US $209.92 |
||
|
13
|
13
30131-PM7-026
Harness assy
|
30131-PM7-026 |
— | ||
|
14
|
14
30132-PM5-A02
Packing
|
30132-PM5-A02 |
— | ||
|
15
|
15
30135-PW0-G02
Screw-washer
|
30135-PW0-G02 |
— | ||
|
16
|
16
30500-PM5-A03
Coil assy
|
30500-PM5-A03 |
— | ||
|
17
|
17
93892-040-061-8
Screw-washer
00000000 - E003348 |
93892-040-061-8 |
— | ||
| replacement | |||||
|
17
|
17
93892-040-060-8 Screw-washer4X6 00000000 - E003348 |
93892-040-060-8 |
from US $0.44 |
||
|
18
|
18
93892-040-101-8 Screw-washer4X10 |
93892-040-101-8 |
from US $0.44 |
||
| replacement | |||||
|
18
|
18
93892-040-100-8 Screw-washer4X10 |
93892-040-100-8 |
from US $0.49 |
||
|
19
|
19
93892-040-201-8
Screw-washer
00000000 - E003348 |
93892-040-201-8 |
— | ||
| replacement | |||||
|
19
|
19
93892-040-200-8 Screw-washer4X20 00000000 - E003348 |
93892-040-200-8 |
US $0.44 |
||
