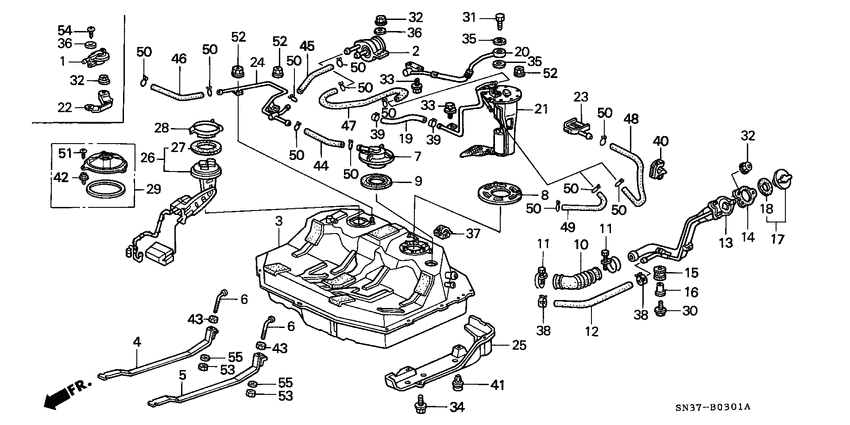

Fuel tank (PGM-FI) Diagram Honda CONCERTO
- Year
- 1993
- Model code
- CONCERTO
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 1.6I-16
- abs
- +
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17371-SF1-A01
Valve
|
17371-SF1-A01 |
— | ||
|
3
|
3
17500-SK3-E32
Tank comp.
|
17500-SK3-E32 |
— | ||
|
4
|
4
17521-SK3-E00
Band
|
17521-SK3-E00 |
— | ||
|
5
|
5
17522-SK3-E00
Band
|
17522-SK3-E00 |
— | ||
|
6
|
6
17525-SK3-E01
Bolt
|
17525-SK3-E01 |
— | ||
|
7
|
7
17570-SD4-010
Valve
|
17570-SD4-010 |
— | ||
|
8
|
8
17574-SE0-000 PackingBASE |
17574-SE0-000 |
from US $7.51 |
||
|
9
|
9
17575-SE0-000
Packing
|
17575-SE0-000 |
— | ||
|
10
|
10
17651-SK3-E00
Tube
|
17651-SK3-E00 |
— | ||
|
11
|
11
17652-SA5-000 ClipFILLER TUBE |
17652-SA5-000 |
US $5.48 |
||
|
12
|
12
17652-SK3-E00
Tube
|
17652-SK3-E00 |
— | ||
|
13
|
13
17660-SK3-G00
Pipe comp
|
17660-SK3-G00 |
— | ||
|
14
|
14
17662-SK3-E00
Packing
|
17662-SK3-E00 |
— | ||
|
15
|
15
17664-SK3-E01
Bush
|
17664-SK3-E01 |
— | ||
|
16
|
16
17665-SK7-010 CollarFILLER PIPE MOUNT |
17665-SK7-010 |
US $3.01 |
||
|
17
|
17
17670-SA5-013
Cap comp.
|
17670-SA5-013 |
— | ||
|
18
|
18
17682-679-013 PackingFUEL FILLER CAP |
17682-679-013 |
from US $4.59 |
||
|
19
|
19
17704-SK3-E32
Hose
|
17704-SK3-E32 |
— | ||
|
20
|
20
17707-SK3-E31
Hose comp.
|
17707-SK3-E31 |
— | ||
|
21
|
21
17708-SK3-E33
Pump unit
|
17708-SK3-E33 |
— | ||
|
22
|
22
17726-SK3-G00
Bracket
|
17726-SK3-G00 |
— | ||
|
24
|
24
17731-SK3-E01
Pipe
|
17731-SK3-E01 |
— | ||
|
25
|
25
17733-SK3-E30
Protector
|
17733-SK3-E30 |
— | ||
|
26
|
26
37800-SK3-G11
Meter unit
|
37800-SK3-G11 |
— | ||
|
27
|
27
37801-SE3-000
Packing
|
37801-SE3-000 |
— | ||
|
28
|
28
37802-SE0-000
Retainer
|
37802-SE0-000 |
— | ||
|
29
|
29
74660-SK3-E01
Cap assy.
|
74660-SK3-E01 |
— | ||
|
30
|
30
90011-SK7-010 BoltFILLER PIPE MOUNTING |
90011-SK7-010 |
US $1.82 |
||
|
31
|
31
90020-PD6-000 BoltSEALING, 12MM |
90020-PD6-000 |
from US $7.99 |
||
|
32
|
32
90103-SB0-010 NutFLANGE, 5MM |
90103-SB0-010 |
US $1.33 |
||
|
33
|
33
90164-SD4-000 Bolt-washer6X16 |
90164-SD4-000 |
US $1.96 |
||
|
34
|
34
90169-SK3-E00
Bolt
|
90169-SK3-E00 |
— | ||
|
35
|
35
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.38 |
||
|
36
|
36
90552-SD4-000
Washer
|
90552-SD4-000 |
— | ||
|
37
|
37
90691-SB3-000
Clip
|
90691-SB3-000 |
— | ||
|
38
|
38
90700-SB0-003 ClipAIR BLEED TUBE |
90700-SB0-003 |
US $3.18 |
||
|
39
|
39
91406-SA7-931 ClampFUEL HOSE, 15.5MM |
91406-SA7-931 |
US $10.18 |
||
| replacement | |||||
|
39
|
39
91406-SL0-931 ClampFUEL HOSE, 15.5MM |
91406-SL0-931 |
from US $4 |
||
|
40
|
40
91591-SK3-G00
Clip
|
91591-SK3-G00 |
— | ||
|
41
|
41
91593-SK3-E00
Clip
|
91593-SK3-E00 |
— | ||
|
42
|
42
91601-SK3-E00
Grommet
|
91601-SK3-E00 |
— | ||
|
43
|
43
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
43
|
43
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
44
|
44
95001-551-003-0 TubeFUEL, 5.3X100 (95001-55001-60M) |
95001-551-003-0 |
US $1.18 |
||
|
45
|
45
95001-550-803-0 TubeFUEL, 5.3X80 (95001-55001-60M) |
95001-550-803-0 |
US $1.18 |
||
|
46
|
46
95001-551-203-0 TubeFUEL, 5.3X120 (95001-55001-60M) |
95001-551-203-0 |
US $1.55 |
||
|
47
|
47
95001-551-103-0
Tube
|
95001-551-103-0 |
— | ||
|
49
|
49
95001-553-503-0 TubeFUEL, 5.3X350 (95001-55001-60M) |
95001-553-503-0 |
US $11.99 |
||
|
50
|
50
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
|
51
|
51
99AB6-10041
Screw
|
99AB6-10041 |
— | ||
|
52
|
52
99FN1-06041
Nut
|
99FN1-06041 |
— | ||
|
53
|
53
99NY1-08041
Nut
|
99NY1-08041 |
— | ||
|
54
|
54
99SE1-05121
Screw
|
99SE1-05121 |
— | ||
|
55
|
55
99WA1-08051
Washer
|
99WA1-08051 |
— | ||
