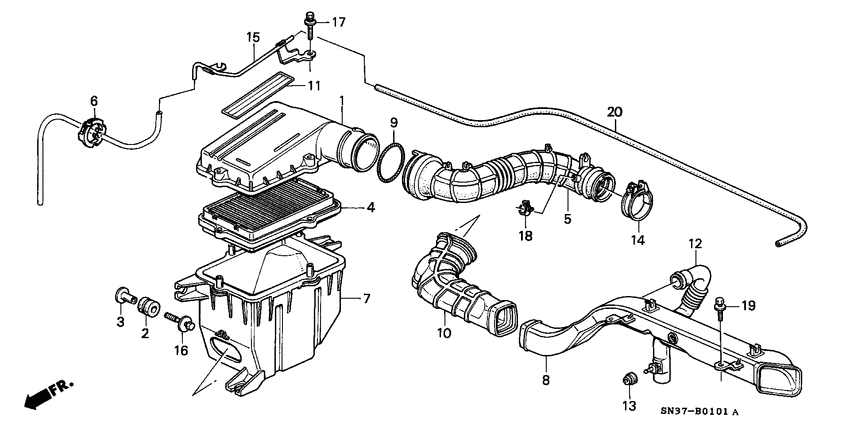

Air cleaner (PGM-FI) Diagram Honda CONCERTO
- Year
- 1991
- Model code
- CONCERTO
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 1.6I-16
- abs
- +
- area code
- KF
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17210-PP4-E00
Cover comp.
|
17210-PP4-E00 |
— | ||
|
2
|
2
17212-PN3-000
Rubber, AIR CLEANER MOUNTING
|
17212-PN3-000 |
— | ||
| replacement | |||||
|
2
|
2
17212-P2J-J00 Rubber, AIR CLEANER MOUNTING |
17212-P2J-J00 |
from US $2.69 |
||
|
3
|
3
17216-PN3-000 CollarAIR CLEANER MOUNTING |
17216-PN3-000 |
from US $2.29 |
||
|
4
|
4
17220-PP4-305
Element assy.
|
17220-PP4-305 |
— | ||
|
5
|
5
17228-PP5-E00
Tube
|
17228-PP5-E00 |
— | ||
|
6
|
6
17232-PP4-E00
Clamp
|
17232-PP4-E00 |
— | ||
|
7
|
7
17241-PP4-E00
Case comp.
|
17241-PP4-E00 |
— | ||
|
8
|
8
17242-PP4-E00
Pipe comp
|
17242-PP4-E00 |
— | ||
|
9
|
9
17243-PD1-000
Spring
|
17243-PD1-000 |
— | ||
|
10
|
10
17244-PP4-E00
Joint
|
17244-PP4-E00 |
— | ||
|
11
|
11
17273-PM7-G00
Plate
|
17273-PM7-G00 |
— | ||
|
12
|
12
17281-PP4-E00 Branch comp.SIDE |
17281-PP4-E00 |
US $20.35 |
||
|
13
|
13
17293-PP4-E00
Rubber
|
17293-PP4-E00 |
— | ||
|
14
|
14
17316-PH3-003 ClampAIR FLOW TUBE (70) |
17316-PH3-003 |
US $4.06 |
||
|
15
|
15
17400-PP4-E00
Pipe
|
17400-PP4-E00 |
— | ||
|
16
|
16
90005-PM7-000
Bolt-washer
|
90005-PM7-000 |
— | ||
|
17
|
17
90091-PE2-000 Bolt-washer5X25 |
90091-PE2-000 |
from US $4 |
||
|
18
|
18
91405-PG7-003 ClipHOSE (D13) |
91405-PG7-003 |
US $3.26 |
||
|
19
|
19
93404-060-160-8 Bolt-washer6X16 |
93404-060-160-8 |
from US $0.52 |
||
|
20
|
20
95005-358-151-0 Tube3.5X815 (95005-35001-10M) |
95005-358-151-0 |
US $9.03 |
||
