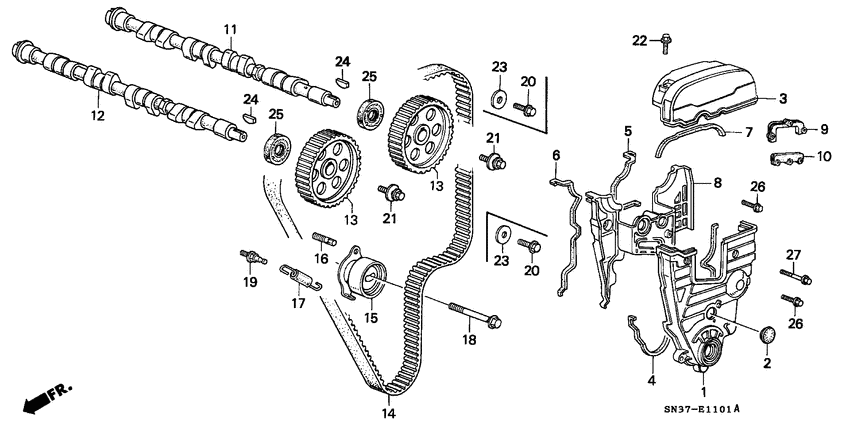

Camshaft/timing belt (DOHC) Diagram Honda CONCERTO
- Year
- 1991
- Model code
- CONCERTO
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 1.6I-16
- abs
- +
- area code
- KF
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11810-PP5-E00
Cover comp.
|
11810-PP5-E00 |
— | ||
|
2
|
2
11812-PE0-300
Grommet
|
11812-PE0-300 |
— | ||
|
3
|
3
11820-PP5-E00
Cover comp.
|
11820-PP5-E00 |
— | ||
|
4
|
4
11831-PM7-000
Rubber
|
11831-PM7-000 |
— | ||
|
5
|
5
11833-PM7-000
Rubber
|
11833-PM7-000 |
— | ||
|
6
|
6
11832-PM7-000
Rubber
|
11832-PM7-000 |
— | ||
|
7
|
7
11834-PM7-000
Rubber
|
11834-PM7-000 |
— | ||
|
8
|
8
11840-PP5-E00
Cover comp.
|
11840-PP5-E00 |
— | ||
|
9
|
9
11925-PM3-000
Rubber a
|
11925-PM3-000 |
— | ||
|
10
|
10
11926-PM3-000
Rubber b
|
11926-PM3-000 |
— | ||
|
11
|
11
14111-PP5-G50
Camshaft
|
14111-PP5-G50 |
— | ||
|
12
|
12
14121-PP5-G50
Camshaft
|
14121-PP5-G50 |
— | ||
|
13
|
13
14211-PM7-003
Pulley
|
14211-PM7-003 |
— | ||
|
14
|
14
14400-PK2-004
Belt
|
14400-PK2-004 |
— | ||
|
15
|
15
14510-PM7-004
Tensioner comp
|
14510-PM7-004 |
— | ||
|
15
|
15
14510-PM7-003
Tensioner comp
|
14510-PM7-003 |
— | ||
|
16
|
16
14513-PE0-015 BoltTENSIONER (M6) |
14513-PE0-015 |
US $3.55 |
||
|
17
|
17
14516-PM7-010
Spring
|
14516-PM7-010 |
— | ||
|
18
|
18
14517-PG6-000 Bolt aTENSIONER |
14517-PG6-000 |
US $2.64 |
||
|
19
|
19
90011-PG6-004 BoltTIMING BELT ADJUSTER SPRING |
90011-PG6-004 |
US $4.16 |
||
|
20
|
20
90031-PC6-000 BoltFLANGE, 8X22 00000000 - E004368 |
90031-PC6-000 |
US $7.73 |
||
|
21
|
21
90031-PT0-003 Bolt-washer8X22 E004369 - |
90031-PT0-003 |
US $2.96 |
||
|
22
|
22
90225-PM7-000
Bolt
|
90225-PM7-000 |
— | ||
|
23
|
23
90435-611-000 WasherSPECIAL, 28X8.5X4.0 00000000 - E004368 |
90435-611-000 |
US $9.98 |
||
|
24
|
24
90741-657-000 Key25.4X13 |
90741-657-000 |
from US $4.46 |
||
|
25
|
25
91203-PG6-003 Oil seal27X43X9 (NOK) |
91203-PG6-003 |
US $14.06 |
||
| replacement | |||||
|
25
|
25
91203-PFB-013 OIL SEAL |
91203-PFB-013 |
from US $6.84 |
||
|
25
|
25
91203-PR4-004 Oil seal27X43X9 (ARAI) |
91203-PR4-004 |
US $6.22 |
||
| replacement | |||||
|
25
|
25
91203-PFB-013 OIL SEAL |
91203-PFB-013 |
from US $6.84 |
||
|
26
|
26
95701-060-220-8 BoltFLANGE, 6X22 |
95701-060-220-8 |
from US $0.65 |
||
|
27
|
27
95701-060-320-8 BoltFLANGE, 6X32 |
95701-060-320-8 |
from US $0.59 |
||
