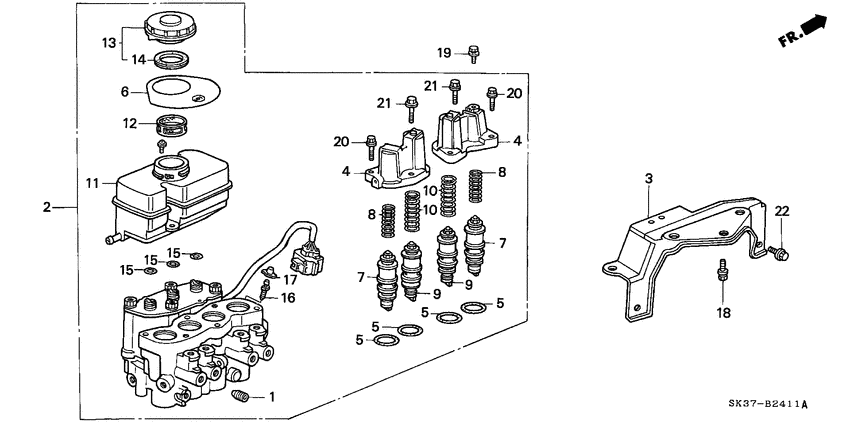

Abs modulator ('93) Diagram Honda CONCERTO
- Year
- 1993
- Model code
- CONCERTO
- Sales region
- General
- Engine
- D16A
- transmission
- 4AT
- Number of doors
- 5
- grade
- 1.6I-16 SE
- abs
- +
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46175-671-651 ScrewSOCKET |
46175-671-651 |
from US $2.17 |
||
|
2
|
2
57110-SK3-013
Modulator assy
|
57110-SK3-013 |
— | ||
|
3
|
3
57115-SK3-804
Bracket
|
57115-SK3-804 |
— | ||
|
4
|
4
57116-SP0-305
Head set a
|
57116-SP0-305 |
— | ||
|
5
|
5
57118-SG0-801 O-ringHEAD |
57118-SG0-801 |
US $2.15 |
||
|
6
|
6
57119-SP0-013
Mark
|
57119-SP0-013 |
— | ||
|
7
|
7
57120-SG0-805
Piston comp
|
57120-SG0-805 |
— | ||
|
8
|
8
57121-SG0-801
Spring
|
57121-SG0-801 |
— | ||
|
9
|
9
57140-SG0-805
Piston comp
|
57140-SG0-805 |
— | ||
|
10
|
10
57141-SE0-G01
Spring
|
57141-SE0-G01 |
— | ||
|
11
|
11
57191-SK3-003
Tank comp.
|
57191-SK3-003 |
— | ||
|
12
|
12
57193-SP0-013
Filter
|
57193-SP0-013 |
— | ||
|
13
|
13
57196-SP0-003
Cap comp.
|
57196-SP0-003 |
— | ||
|
14
|
14
57198-SP0-003 SealRESERVE TANK |
57198-SP0-003 |
US $5.18 |
||
|
15
|
15
57204-SP0-003 O-ring cSOLENOID |
57204-SP0-003 |
US $3.33 |
||
|
16
|
16
57348-SB0-801
Bleed
|
57348-SB0-801 |
— | ||
|
17
|
17
57349-SB0-801
Cap
|
57349-SB0-801 |
— | ||
|
18
|
18
90105-SG0-003
Bolt-washer
|
90105-SG0-003 |
— | ||
|
19
|
19
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
20
|
20
95701-080-320-8 BoltFLANGE, 8X32 |
95701-080-320-8 |
from US $0.81 |
||
|
21
|
21
95701-100-320-8 BoltFLANGE, 10X32 |
95701-100-320-8 |
from US $0.90 |
||
|
22
|
22
99FS1-08161
Bolt
|
99FS1-08161 |
— |
