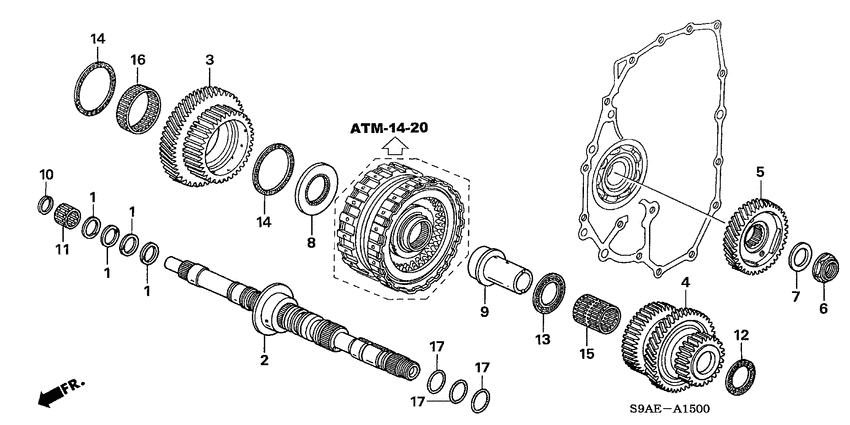

Mainshaft (5AT) Diagram Honda CR-V
- Year
- 2006
- Model code
- CR-V
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 5
- grade
- RV-SI
- abs
- +
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22814-PRP-003 RingSEALING, 29MM |
22814-PRP-003 |
from US $5.37 |
||
|
2
|
2
23210-RCL-010 Mainshaft comp. |
23210-RCL-010 |
US $179.20 |
||
|
3
|
3
23481-RFK-900 GearMAINSHAFT FIFTH |
23481-RFK-900 |
US $163.84 |
||
|
4
|
4
23461-RCR-000 GearMAINSHAFT FOURTH |
23461-RCR-000 |
US $152.32 |
||
|
5
|
5
23511-RCL-010 GearMAINSHAFT IDLE 00000000 - 2077005 |
23511-RCL-010 |
US $72.96 |
||
|
5
|
5
23511-RCL-A00 GearMAINSHAFT IDLE 2077006 - |
23511-RCL-A00 |
US $72.96 |
||
|
6
|
6
90203-PX4-010 NutFLANGE, 24MM |
90203-PX4-010 |
US $4.59 |
||
|
7
|
7
90402-P0Z-000
Washer
|
90402-P0Z-000 |
— | ||
|
8
|
8
90416-PRP-010
Washer
|
90416-PRP-010 |
— | ||
|
8
|
8
90418-PRP-010
Washer
|
90418-PRP-010 |
— | ||
|
8
|
8
90415-PRP-010
Washer
|
90415-PRP-010 |
— | ||
|
8
|
8
90417-PRP-010
Washer
|
90417-PRP-010 |
— | ||
|
8
|
8
90419-PRP-010
Washer
|
90419-PRP-010 |
— | ||
|
8
|
8
90414-PRP-010
Washer
|
90414-PRP-010 |
— | ||
|
9
|
9
90501-PRP-000 Collar27X34X66.3 |
90501-PRP-000 |
US $16.64 |
||
|
10
|
10
90603-P0X-000
Set ring
|
90603-P0X-000 |
— | ||
|
11
|
11
91017-PZK-003 BearingNEEDLE, 23X29X18 |
91017-PZK-003 |
US $8.68 |
||
|
12
|
12
91018-PW7-A02 BearingTHRUST NEEDLE, 34X46X2 |
91018-PW7-A02 |
US $5.04 |
||
|
13
|
13
91023-PCJ-003 BearingTHRUST NEEDLE, 34X53.5X2.5 |
91023-PCJ-003 |
from US $7 |
||
|
14
|
14
91026-PRP-003 BearingTHRUST NEEDLE, 57.6X71X2 |
91026-PRP-003 |
US $7 |
||
|
15
|
15
91107-PRP-003 BearingNEEDLE, 34X40X39.5 |
91107-PRP-003 |
US $9.80 |
||
|
16
|
16
91109-PRP-003 BearingNEEDLE, 52X57X18 |
91109-PRP-003 |
US $8.40 |
||
|
17
|
17
91316-PR9-003 O-ring33X1.9 (ARAI) |
91316-PR9-003 |
US $1.54 |
