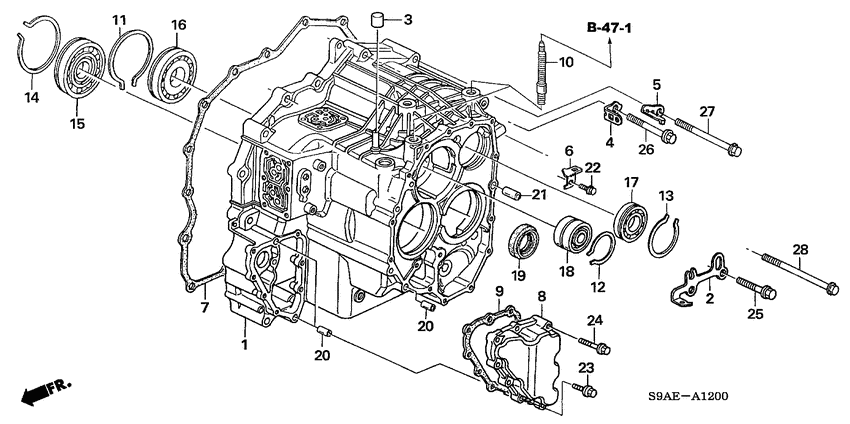

Transmission case (5AT) Diagram Honda CR-V
- Year
- 2006
- Model code
- CR-V
- Sales region
- General
- Engine
- K24A
- transmission
- 5AT
- Number of doors
- 5
- grade
- RV-SI
- abs
- +
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21210-RKZ-000 Case comp.TRANSMISSION |
21210-RKZ-000 |
US $633.60 |
||
|
2
|
2
21231-PRP-000 HangerTRANSMISSION |
21231-PRP-000 |
US $5.74 |
||
|
3
|
3
21396-PX5-000 CapBREATHER |
21396-PX5-000 |
US $3.18 |
||
|
4
|
4
21512-PRP-000
Stay b
|
21512-PRP-000 |
— | ||
|
5
|
5
21513-PRP-000
Stay c
|
21513-PRP-000 |
— | ||
|
6
|
6
21514-PRP-000
Stay d
|
21514-PRP-000 |
— | ||
|
7
|
7
21811-PRH-010 PackingTORQUE CONVERTER CASE |
21811-PRH-010 |
US $25.16 |
||
|
8
|
8
28450-PRP-000 CoverSOLENOID |
28450-PRP-000 |
US $21.25 |
||
|
9
|
9
28451-PRP-010 PackingSOLENOID COVER |
28451-PRP-010 |
from US $3.08 |
||
|
10
|
10
90380-S9A-000 BoltSTUD, 12X83.8 |
90380-S9A-000 |
US $3.36 |
||
|
11
|
11
90609-PX4-000 RingSNAP, 80MM |
90609-PX4-000 |
US $2.87 |
||
|
12
|
12
90613-PRP-000 RingSNAP, 48MM |
90613-PRP-000 |
US $2.59 |
||
|
13
|
13
90614-PRP-000 RingSNAP, 55MM |
90614-PRP-000 |
US $2.59 |
||
|
14
|
14
90615-P0Z-000 RingSNAP, 82MM |
90615-P0Z-000 |
US $3.08 |
||
|
15
|
15
91002-RCR-016 BearingBALL, 27X82X18.5 |
91002-RCR-016 |
US $25.60 |
||
|
16
|
16
91003-RFK-005 BearingBALL, 31X80X16 00000000 - 2035488 |
91003-RFK-005 |
US $25.60 |
||
|
16
|
16
91003-RFK-015 BearingBALL, 31X80X16 2035489 - |
91003-RFK-015 |
US $29.92 |
||
|
17
|
17
91004-RFK-016 BearingBALL, 26.8X55X14.5 |
91004-RFK-016 |
US $14.96 |
||
|
18
|
18
91006-PRP-026 BearingBALL, 20X48X24 2050948 - |
91006-PRP-026 |
US $23.94 |
||
|
18
|
18
91006-PRP-016 BearingBALL, 20X48X24 00000000 - 2050947 |
91006-PRP-016 |
US $20.48 |
||
|
19
|
19
91205-P0X-005 Oil seal40X56X9 (NOK) |
91205-P0X-005 |
from US $7.60 |
||
|
20
|
20
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
21
|
21
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
22
|
22
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
23
|
23
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
24
|
24
95701-060-450-8 BoltFLANGE, 6X45 |
95701-060-450-8 |
from US $0.74 |
||
|
25
|
25
95701-100-400-8 BoltFLANGE, 10X40 |
95701-100-400-8 |
from US $0.81 |
||
|
26
|
26
95701-100-600-8 BoltFLANGE, 10X60 |
95701-100-600-8 |
from US $1.04 |
||
|
27
|
27
95701-100-900-8 BoltFLANGE, 10X90 |
95701-100-900-8 |
from US $1.48 |
||
|
28
|
28
95701-101-000-8 BoltFLANGE, 10X100 |
95701-101-000-8 |
from US $0.74 |
