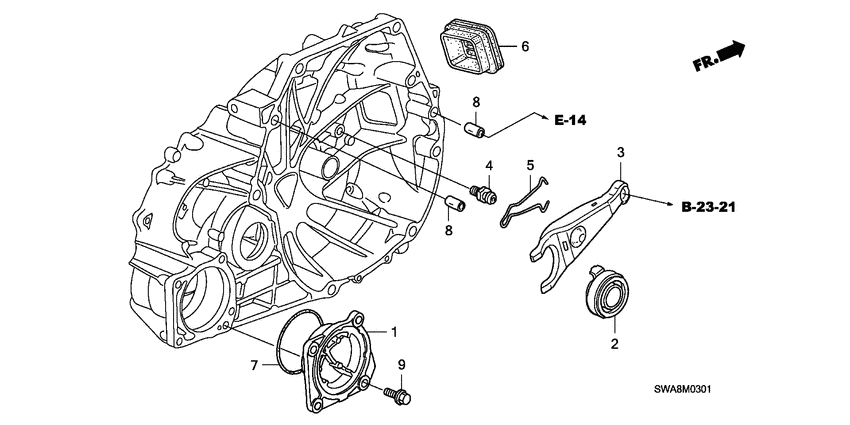

Clutch release (2.0L) Diagram Honda CR-V
- Year
- 2008
- Model code
- CR-V
- Sales region
- General
- Engine
- R20A
- transmission
- 6MT
- Number of doors
- 5
- grade
- RVI IN
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21131-PPR-000 COVER, L. SIDE |
21131-PPR-000 |
US $47.19 |
||
|
2
|
2
22810-RPN-003 Bearing, CLUTCH RELEASE |
22810-RPN-003 |
from US $63.73 |
||
|
3
|
3
22821-PPP-000 Fork, CLUTCH RELEASE |
22821-PPP-000 |
US $33.36 |
||
|
4
|
4
22825-P0S-000 BoltRELEASE FORK |
22825-P0S-000 |
from US $6.67 |
||
|
5
|
5
22835-P0S-000 SpringRELEASE FORK SETTING |
22835-P0S-000 |
US $3.51 |
||
|
6
|
6
22841-PPP-000 BootRELEASE FORK |
22841-PPP-000 |
US $11.72 |
||
|
7
|
7
91304-PRH-003 O-ring92X2.2(ARAI) |
91304-PRH-003 |
from US $4 |
||
|
8
|
8
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
9
|
9
95701-100-250-8 BoltFLANGE, 10X25 |
95701-100-250-8 |
from US $0.81 |
