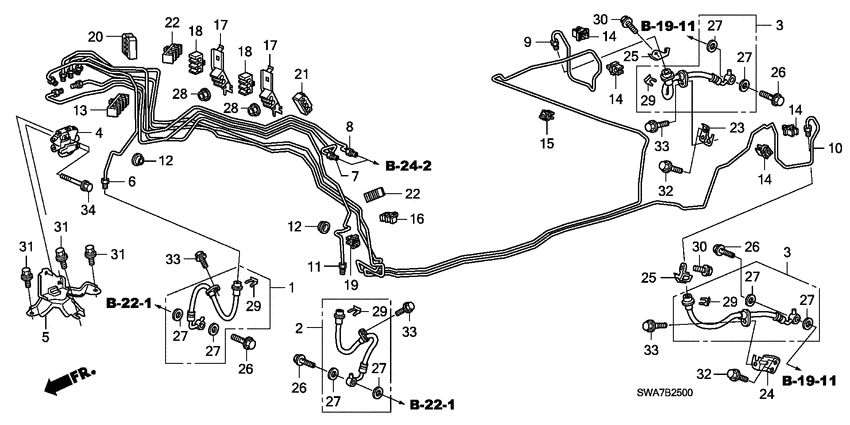

Brake lines Diagram Honda CR-V
- Year
- 2007
- Model code
- CR-V
- Sales region
- General
- Engine
- R20A
- transmission
- 6MT
- Number of doors
- 5
- grade
- RVI
- area code
- KP
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01464-SWA-000 HOSE SET, R. FR. BRAKE |
01464-SWA-000 |
US $43.52 |
||
|
2
|
2
01465-SWA-000 HOSE SET, L. FR. BRAKE |
01465-SWA-000 |
US $43.52 |
||
|
3
|
3
01466-SWA-000 Hose setRR. BRAKE |
01466-SWA-000 |
US $40.58 |
||
|
4
|
4
46210-SWA-Y01
Valve assy.
|
46210-SWA-Y01 |
— | ||
|
5
|
5
46215-SWA-900 BracketPROPORTIONING CONTROL VALVE |
46215-SWA-900 |
US $18.56 |
||
|
6
|
6
46310-SWA-900 Pipe comp. aBRAKE |
46310-SWA-900 |
US $17.28 |
||
|
7
|
7
46320-SWA-900 Pipe comp. bBRAKE |
46320-SWA-900 |
US $34.56 |
||
|
8
|
8
46321-SWA-900 Pipe comp. hBRAKE |
46321-SWA-900 |
US $26.11 |
||
|
9
|
9
46330-SWA-901 Pipe comp. cBRAKE |
46330-SWA-901 |
US $82.56 |
||
|
10
|
10
46340-SWA-901 Pipe comp. dBRAKE |
46340-SWA-901 |
US $74.88 |
||
|
11
|
11
46360-SWA-900 Pipe comp. fBRAKE |
46360-SWA-900 |
US $17.28 |
||
|
12
|
12
46380-SH3-000 Grommet aBRAKE PIPE |
46380-SH3-000 |
US $2.52 |
||
|
13
|
13
46390-SNA-A02 ClipBRAKE PIPE |
46390-SNA-A02 |
US $1.61 |
||
|
14
|
14
46391-SDA-A01 Clip gBRAKE PIPE |
46391-SDA-A01 |
US $2.34 |
||
|
15
|
15
46391-S5A-J01 ClipBRAKE PIPE |
46391-S5A-J01 |
US $2.28 |
||
|
16
|
16
46392-SAA-901 ClipBRAKE PIPE |
46392-SAA-901 |
from US $1.75 |
||
|
17
|
17
46392-SWA-A00 ClipBRAKE PIPE |
46392-SWA-A00 |
US $4.62 |
||
|
18
|
18
46393-SEA-003 Clip cBRAKE PIPE |
46393-SEA-003 |
US $2.10 |
||
|
19
|
19
46393-SFA-003 ClipBRAKE PIPE |
46393-SFA-003 |
US $2.60 |
||
|
20
|
20
46393-SMG-E51 ClipBRAKE PIPE |
46393-SMG-E51 |
US $1.82 |
||
|
21
|
21
46394-SDA-003 Clip dBRAKE PIPE |
46394-SDA-003 |
US $4.32 |
||
|
22
|
22
46395-STK-A01 ClipBRAKE PIPE |
46395-STK-A01 |
US $2.31 |
||
|
23
|
23
46435-SWA-A00 BracketR. RR. BRAKE HOSE |
46435-SWA-A00 |
US $3.43 |
||
|
24
|
24
46436-SWA-A00 BracketL. RR. BRAKE HOSE |
46436-SWA-A00 |
US $3.43 |
||
|
25
|
25
46437-SWA-A00 BracketRR. BRAKE HOSE |
46437-SWA-A00 |
US $1.82 |
||
|
26
|
26
46462-SE0-000 BoltOIL |
46462-SE0-000 |
from US $3.33 |
||
|
27
|
27
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.18 |
||
|
28
|
28
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
29
|
29
90651-538-000 ClipBRAKE HOSE |
90651-538-000 |
from US $2.74 |
||
|
30
|
30
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
31
|
31
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
32
|
32
95701-080-140-5 BoltFLANGE, 8X14 |
95701-080-140-5 |
US $0.59 |
||
|
33
|
33
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
34
|
34
95801-060-450-8 BoltFLANGE, 6X45 |
95801-060-450-8 |
from US $0.74 |
