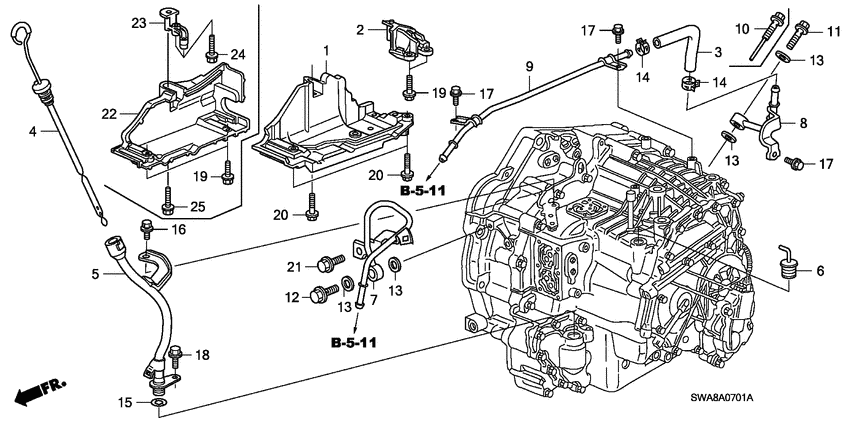

Atf pipe (2.4L) Diagram Honda CR-V
- Year
- 2010
- Model code
- CR-V
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 5
- grade
- 2WD
- area code
- KD
- left-hand drive
- +
- vehicle stability assist
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
25212-RAA-003
Hose
|
25212-RAA-003 |
— | ||
| replacement | |||||
|
3
|
3
25212-RAA-007 HOSE ATF 210MM TO |
25212-RAA-007 |
US $11.23 |
||
|
4
|
4
25610-RCL-023 Gauge comp.ATF |
25610-RCL-023 |
from US $9.94 |
||
|
5
|
5
25613-RCL-000 Pipe compATF GAUGE |
25613-RCL-000 |
US $13.06 |
||
|
6
|
6
25615-RCL-003 CapATF FILLER |
25615-RCL-003 |
from US $4.76 |
||
|
7
|
7
25910-RZH-000 Pipe comp. aATF |
25910-RZH-000 |
US $24.32 |
||
|
8
|
8
25920-RXH-000 Pipe comp. bATF |
25920-RXH-000 |
US $15.23 |
||
|
9
|
9
25930-RZH-000 Pipe comp. cATF |
25930-RZH-000 |
US $30.46 |
||
|
10
|
10
25950-RCL-000 Bolt compJOINT |
25950-RCL-000 |
US $6.86 |
||
|
12
|
12
25951-RGR-000 BoltJOINT |
25951-RGR-000 |
US $5.32 |
||
|
13
|
13
90471-RGR-000 WasherDRAIN PLUG, 12MM |
90471-RGR-000 |
US $1.57 |
||
|
14
|
14
90635-PT0-802
Clip, Oil Pipe
|
90635-PT0-802 |
— | ||
| replacement | |||||
|
14
|
14
90635-RV0-003 CLIP, OIL PIPE |
90635-RV0-003 |
from US $3.32 |
||
|
15
|
15
91308-PH0-013 O-ring17.8X1.9 (NOK) |
91308-PH0-013 |
US $1.55 |
||
|
16
|
16
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
from US $0.56 |
||
| replacement | |||||
|
16
|
16
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
17
|
17
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
18
|
18
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
19
|
19
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
21
|
21
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
22
|
22
24901-R40-000 CoverCONTROL WIRE |
24901-R40-000 |
US $25.60 |
||
|
23
|
23
24902-RWK-900 BracketWIRE COVER |
24902-RWK-900 |
US $14.72 |
||
|
24
|
24
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
25
|
25
95701-060-350-8 BoltFLANGE, 6X35 |
95701-060-350-8 |
from US $0.59 |
||
