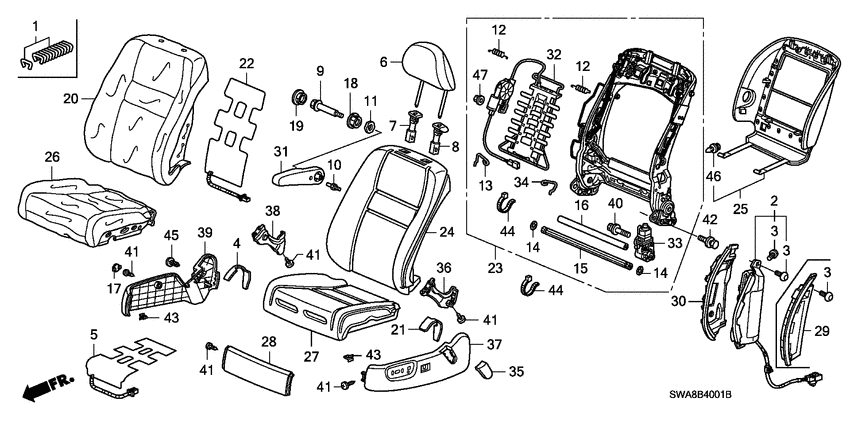

Front seat (L.; POWER SEAT) Diagram Honda CR-V
- Year
- 2010
- Model code
- CR-V
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 5
- grade
- 2WD
- area code
- KD
- left-hand drive
- +
- vehicle stability assist
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
from US $4.74 |
||
|
2
|
2
78055-SWA-G80
Module assy.
|
78055-SWA-G80 |
— | ||
|
3
|
3
81123-SNA-A01 Screw6X18 |
81123-SNA-A01 |
US $1.82 |
||
|
4
|
4
81123-SWA-A51ZA Boot aRECLINING *NH642L* |
81123-SWA-A51ZA |
US $4.62 |
||
|
4
|
4
81123-SWA-A51ZB Boot aRECLINING *YR327L* |
81123-SWA-A51ZB |
US $4.62 |
||
|
5
|
5
81134-SWA-952 Heater comp. FR. SEAT CUSHION |
81134-SWA-952 |
US $445.81 |
||
|
6
|
6
81140-SWA-J53ZA Headrest assyFR. SEAT (LEATHER) *NH642L* |
81140-SWA-J53ZA |
US $291.84 |
||
|
6
|
6
81140-SWA-J53ZB Headrest assyFR. SEAT (LEATHER) *YR327L* |
81140-SWA-J53ZB |
US $291.84 |
||
|
7
|
7
81143-SDA-A01ZW GuideHEADREST FREE *YR327L* |
81143-SDA-A01ZW |
US $6.02 |
||
|
7
|
7
81143-SDA-A01ZA GuideHEADREST FREE *NH167L* |
81143-SDA-A01ZA |
US $6.02 |
||
|
8
|
8
81144-SDA-A01ZW Guide compHEADREST LOCK *YR327L* |
81144-SDA-A01ZW |
from US $9.61 |
||
|
8
|
8
81144-SDA-A01ZA Guide compHEADREST LOCK *NH167L* |
81144-SDA-A01ZA |
US $7.42 |
||
|
9
|
9
81186-S0X-A01 PinFR. ARMREST CENTER |
81186-S0X-A01 |
US $3.08 |
||
|
10
|
10
81187-S0X-A01 PinFR. ARMREST |
81187-S0X-A01 |
US $2.31 |
||
|
11
|
11
81189-S0X-003
Washer
|
81189-S0X-003 |
— | ||
|
12
|
12
81214-STK-A01
Spring a
|
81214-STK-A01 |
— | ||
|
13
|
13
81215-SDB-A71
Spring
|
81215-SDB-A71 |
— | ||
|
14
|
14
81236-SDG-H71 NutPUSH |
81236-SDG-H71 |
US $0.91 |
||
|
15
|
15
81241-SJK-J11
Shaft
AC201386 - |
81241-SJK-J11 |
— | ||
|
15
|
15
81241-SDG-H71
Shaft
00000000 - AC201385 |
81241-SDG-H71 |
— | ||
|
16
|
16
81242-SDG-H71 CoverSHAFT |
81242-SDG-H71 |
US $3.22 |
||
|
17
|
17
81246-SWA-A01ZB CapRECLINING INNER *NH642L* |
81246-SWA-A01ZB |
US $2.73 |
||
|
17
|
17
81246-SWA-A01ZC CapRECLINING INNER *YR327L* |
81246-SWA-A01ZC |
US $2.73 |
||
|
18
|
18
81383-SHJ-A01 BushARMREST (A) |
81383-SHJ-A01 |
US $2.31 |
||
|
19
|
19
81384-SHJ-A01ZG CapARMREST *YR327L* |
81384-SHJ-A01ZG |
US $2.73 |
||
|
19
|
19
81384-SHJ-A01ZF CapARMREST *NH642L* |
81384-SHJ-A01ZF |
US $2.73 |
||
|
20
|
20
81521-SWC-D52ZB CoverL. FR. SEATBACK TRIM (SIDE AIRBAG) *YR327L* |
81521-SWC-D52ZB |
US $840.96 |
||
|
20
|
20
81521-SWC-D52ZA CoverL. FR. SEATBACK TRIM (SIDE AIRBAG) *NH642L* |
81521-SWC-D52ZA |
US $840.96 |
||
|
21
|
21
81523-SWA-A51ZA Boot bRECLINING *NH642L* |
81523-SWA-A51ZA |
US $4.62 |
||
|
21
|
21
81523-SWA-A51ZB Boot bRECLINING *YR327L* |
81523-SWA-A51ZB |
US $4.62 |
||
|
22
|
22
81524-SWA-961 Heater comp.L. FR. SEATBACK |
81524-SWA-961 |
US $183.04 |
||
|
23
|
23
81526-SWA-N51 Frame compL. FR. SEATBACK 00000000 - AC201385 |
81526-SWA-N51 |
US $453.12 |
||
|
23
|
23
81526-SWA-N52 Frame compL. FR. SEATBACK AC201386 - |
81526-SWA-N52 |
US $451.84 |
||
|
24
|
24
81527-SWA-A51 Pad comp, L. FR. SEATBACK |
81527-SWA-A51 |
US $142.08 |
||
|
25
|
25
81528-SWA-951ZB CoverL. FR. SEATBACK *YR327L* 00000000 - AC200296 |
81528-SWA-951ZB |
US $93.44 |
||
|
25
|
25
81528-SWA-951ZA CoverL. FR. SEATBACK *NH642L* 00000000 - AC200296 |
81528-SWA-951ZA |
US $93.44 |
||
|
25
|
25
81528-SWA-952ZA CoverL. FR. SEATBACK *NH642L* AC200297 - |
81528-SWA-952ZA |
US $92.80 |
||
|
25
|
25
81528-SWA-952ZB CoverL. FR. SEATBACK *YR327L* AC200297 - |
81528-SWA-952ZB |
US $92.80 |
||
|
26
|
26
81531-SWC-L52ZB CoverL. FR. SEAT CUSHION TRIM (LEATHER) *YR327L* |
81531-SWC-L52ZB |
US $840.96 |
||
|
26
|
26
81531-SWC-L52ZA CoverL. FR. SEAT CUSHION TRIM (LEATHER) *NH642L* |
81531-SWC-L52ZA |
US $840.96 |
||
|
27
|
27
81537-SWA-951 Pad compL. FR. SEAT CUSHION |
81537-SWA-951 |
US $189.04 |
||
|
28
|
28
81551-SWA-A51ZA CoverL. FR. SEAT CUSHION *NH642L* |
81551-SWA-A51ZA |
US $13.16 |
||
|
28
|
28
81551-SWA-A51ZB CoverL. FR. SEAT CUSHION *YR327L* |
81551-SWA-A51ZB |
US $20.40 |
||
|
30
|
30
81560-SWA-A51 HolderL. MODULE |
81560-SWA-A51 |
US $15.10 |
||
|
31
|
31
81580-SWD-U51ZA
Armrest assy
|
81580-SWD-U51ZA |
— | ||
|
31
|
31
81580-SWD-U51ZB
Armrest assy
|
81580-SWD-U51ZB |
— | ||
|
32
|
32
81590-SWB-A51 Lumbar comp. L. FR. BACK |
81590-SWB-A51 |
US $372.50 |
||
|
33
|
33
81602-SWA-A01 Motor assy.L. RECLINING |
81602-SWA-A01 |
US $171.52 |
||
|
34
|
34
81615-SDB-A71
Spring
|
81615-SDB-A71 |
— | ||
|
35
|
35
81634-STK-A01ZD CoverL. RECLINING OUTER LAP *YR327L* |
81634-STK-A01ZD |
US $6.44 |
||
|
35
|
35
81634-STK-A01ZC CoverL. RECLINING OUTER LAP *NH642L* |
81634-STK-A01ZC |
US $6.44 |
||
|
36
|
36
81637-STK-A01ZC CoverL. OUTER RECLINING INNER *NH642L* |
81637-STK-A01ZC |
US $4.62 |
||
|
36
|
36
81637-STK-A01ZD CoverL. OUTER RECLINING INNER *YR327L* |
81637-STK-A01ZD |
US $4.62 |
||
|
37
|
37
81638-SWA-A51ZA CoverL. RECLINING OUTER *NH642L* |
81638-SWA-A51ZA |
US $20.10 |
||
|
37
|
37
81638-SWA-A51ZB CoverL. RECLINING OUTER *YR327L* |
81638-SWA-A51ZB |
US $20.10 |
||
|
38
|
38
81647-STK-A01ZC CoverL. INNER RECLINING INNER *NH642L* |
81647-STK-A01ZC |
US $4.62 |
||
|
38
|
38
81647-STK-A01ZD CoverL. INNER RECLINING INNER *YR327L* |
81647-STK-A01ZD |
US $4.62 |
||
|
39
|
39
81648-SWA-901ZA CoverL. RECLINING INNER *NH642L* |
81648-SWA-901ZA |
US $16.77 |
||
|
39
|
39
81648-SWA-901ZB CoverL. RECLINING INNER *YR327L* |
81648-SWA-901ZB |
US $16.77 |
||
|
40
|
40
90102-SDG-H71 Bolt-washer6MM |
90102-SDG-H71 |
US $2.03 |
||
|
41
|
41
90134-SE3-003 ScrewTAPPING, 5X10 |
90134-SE3-003 |
from US $1.48 |
||
|
42
|
42
90143-SR3-000 Bolt-washer10X22 |
90143-SR3-000 |
US $2.38 |
||
|
43
|
43
90610-S10-003 ClipGARNISH |
90610-S10-003 |
US $1.61 |
||
|
44
|
44
90650-KV3-000 BandWIRE |
90650-KV3-000 |
from US $2.59 |
||
|
45
|
45
90667-S0D-003YW ClipTRIM, 7MM *NH642L* |
90667-S0D-003YW |
US $1.19 |
||
|
45
|
45
90667-S0D-003YX ClipTRIM, 7MM *YR327L* |
90667-S0D-003YX |
from US $1.10 |
||
|
46
|
46
91566-SP0-003 ClipBACK COVER (NATURAL) |
91566-SP0-003 |
US $1.33 |
||
|
47
|
47
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
